8-channel Analog Input Module, supports operating temperatures from -25 ~ 75 °C

I-8017HCW

8-channel Analog Input Module, supports operating temperatures from -25 ~ 75 °C

  Price:  $879.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

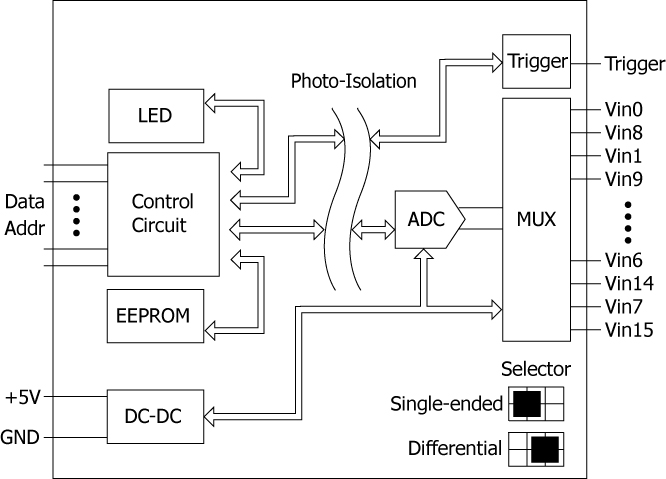

The I-8017HCW is a high performance analog input module. Up to 16-channel single-ended or 8-channel differential inputs can be connected to one module. It features 14-bit resolution, 100Ks/s sampling rates. It provides isolation protection of 2500 VDC.

  • 14-bit 100 KHz AD Converter
  • Internal or External Trigger

Applications

  • High speed data acquisition system
  • Process monitor and control
  • Vibration analysis
  • Digital pattern generator from digital I/O port

Specifications

Analog Input

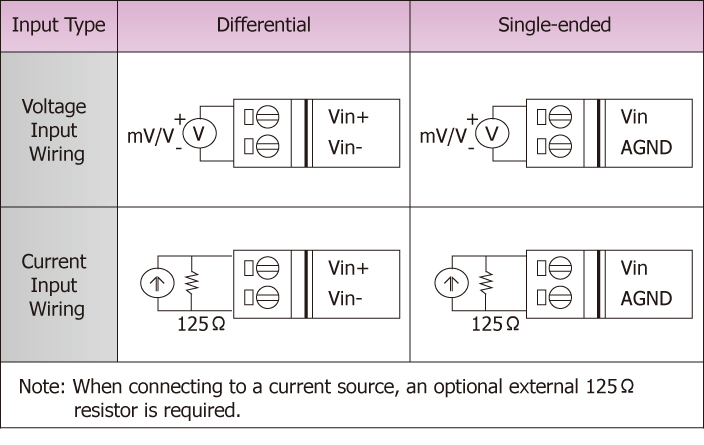

Input Channels 16-ch Single-ended/8-ch Differential
Input Range +/- 10 V, +/- 5 V, +/- 2.5 V, +/- 1.25 V
-20 mA ~ +20 mA (Jumper Select)
Resolution 14-bit
Sample Rate Single Channel Polling Mode :100K S/s
Single Channel Interrupt Mode: 50K S/s
8 channel Scan Mode : 16 K S/s
Accuracy ±0.1% of FSR
Zero drift ± 0.1uV/°C
Span drift ± 10ppm/°C
ESD Protection 4KV
Input Impedance 20K, 200K, 20M(Jumper Select)
Input Bandwidth 100 KHz
Intra-module Isolation, Field to Logic 2500 VDC
LED Display
1 LED as Power Indicator/16 LED as Status Indicator
Power
Power Consumption 2W Max
Environment
Operating Temperature -25 ~ 75 °C
Storage Temperature -30 ~ 75 °C
Humidity 5 ~ 95%, Non-condensing
Dimensions
30 mm x 102 mm x 115 mm (W x L x H)
