EtherCAT Slave I/O Module with Isolated 16-ch Digital Inputs and 16-ch Outputs. 10V ~ 30VDC Power Range. Has operating temperature of -25° ~ +75°C (-13°F ~ 167°F).

ECAT-2055-32

write a review write a review

EtherCAT Slave I/O Module with Isolated 16-ch Digital Inputs and 16-ch Outputs. 10V ~ 30VDC Power Range. Has operating temperature of -25° ~ +75°C (-13°F ~ 167°F).

  Price:  $519.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Email Product Details Write a Review Write a Review Email Us
References and Support Add to Quote

Features

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection allowing flexibility in installing devices reducing infrastructure and operation costs. All the modules can be set up as a star, line or ring network topologies. With the ECAT-2000 isolation input and output design, it protects against the harmful interference and environment.

The ECAT-2055-32 is built-in isolated 16 digital inputs and 16 digital outputs. Users can obtain the input and output status and via the process data and its LED indicators. It has passed and verified by the conformance test tool; therefore eligible EtherCAT Master or configurator can operate it with ease and implement various applications easily.

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic
  • 2 x RJ-45 bus interfaces
  • Distance between stations up to 100 meters(100 BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators for the input status
  • Built-In digital I/O: 16-ch DI and 16-ch DO
  • RoHS compliant
  • ESD Protection 4 KV Contact for each channel

Applications

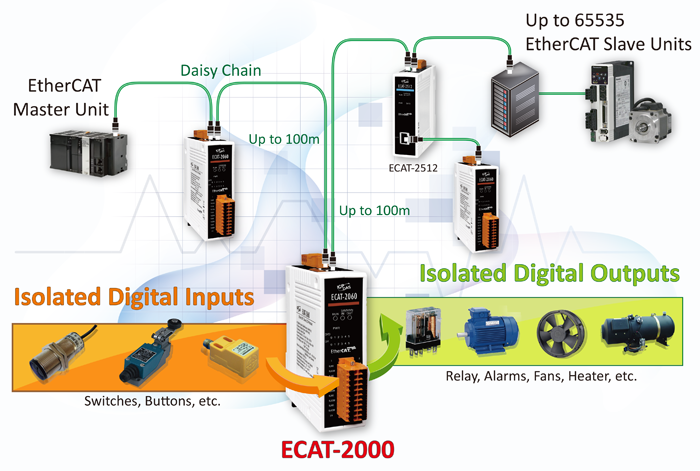

ECAT-2051-32 application

Specifications

Digital Input
Channels 16
Input Type Dry (Source) Wet (Sink/Source)
Off Voltage Level Open +4V Max.
On Voltage Level Close to GND +10 V ~ +50 V
Isolation Voltage 3750 VDC
Digital Output
Channels 16
Output Type Open Collector (Sink)
Load Voltage +3.5 ~ +50 V
Max. Load Current 700mA
Isolation Voltage 3750 Vrms
Communication Interface
Connector 2 x RJ-45
Protocol EtherCAT
Distance between Stations Max. 100 m (100BASE-TX)
Data Transfer Medium Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range 10V ~ 30VDC
Power Consumption Max. 4W
Mechanism
Installation DIN-Rail
Dimensions 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material UL 94V-0 housing
Environment
Operating Temperature -25℃ ~ 75℃
Storage Temperature -30 °C ~ + 80 °C
Relative Humidity 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2) 4 KV Contact for Each Channel
EFT (IEC 61000-4-4) Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5) 1 KV Class A
