ZB-2571P

ZigBee Network
The ZB-2570/2570P is a host ZigBee converter, and the ZB-2571/2571P is a slave ZigBee converter. Each feature an Ethernet/RS-485/RS-232 interface. Devices that have an Ethernet/RS-485/RS-232 interface are also able to be connected using the ZB-2570/2570P/2571/2571P. By distributing host and slave ZigBee converters in the field, users can easily build a wireless network that can be used for both monitoring and control.

User-friendly interface
A Windows compatible GUI configuration utility is available. Only four steps are required to set the ZB-2570/2571/2570P/2571P and then it is ready for use. The utility allows users to set different operating modes based on the type of application, and several of the required ZigBee variables such as PAN ID, etc.

What are the benefits of using ZigBee?
ZigBee is a specification based on the IEEE 802.15.4 standard for wireless personal area networks (WPANs). It is targeted at applications that require secure networking as well as high flexibility for network expansion anytime new nodes are to be added. It is also widely used in the industrial control field, in hospitals, labs and in building automation. Three topologies are defined in the IEEE 802.15.4 standard: Star, Cluster Tree and Mesh. The typical transmission range for the 2570/2571 is 100 m, and the 2570P/2571P is 700 m.

• ISM 2.4 GHz Operating Frequency.
• Full Compliance with 2.4 G IEEE 802.15.4/ZigBee Specifications.
• Wireless transmission range typical for 700 meters, up to 1 km (LOS)
• GUI Configuration Software (Windows Version)
• DIN-Rail Mountable
• Operating Mode

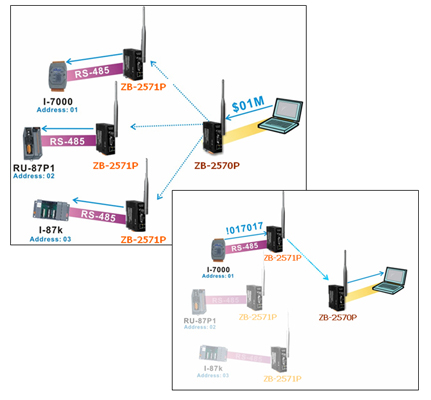

  • Serial Port Operating Mode 1: (Transparent Mode)

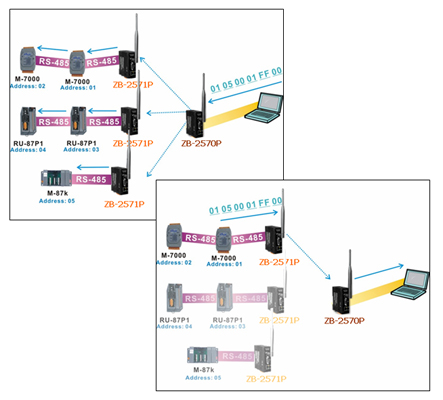

  • Serial Port Operating Mode 2: (Modbus RTU Mode)

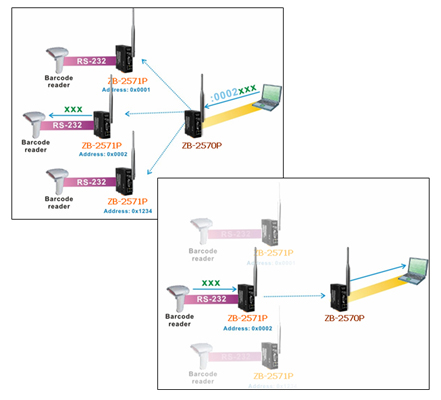

  • Serial Port Operating Mode 3: (Addressable Mode)

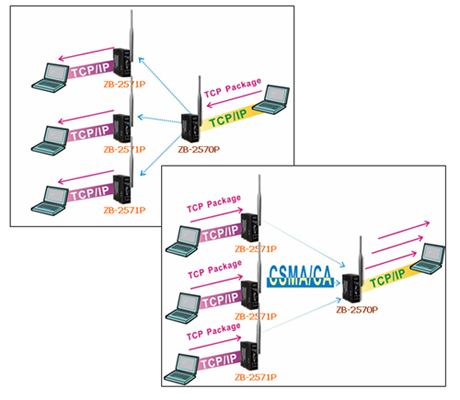

  • Ethernet Operating Mode 1: (Transparent Mode)

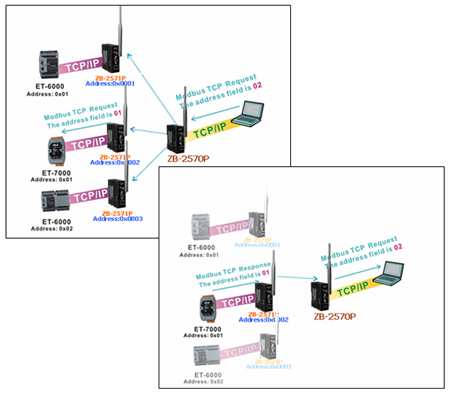

  • Ethernet Operating Mode 2: (Modbus TCP Mode)

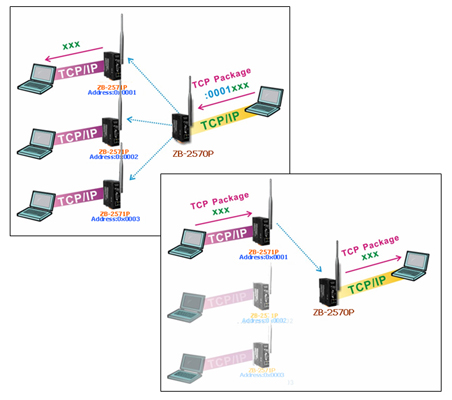

  • Ethernet Operating Mode 3: (Addressable Mode)

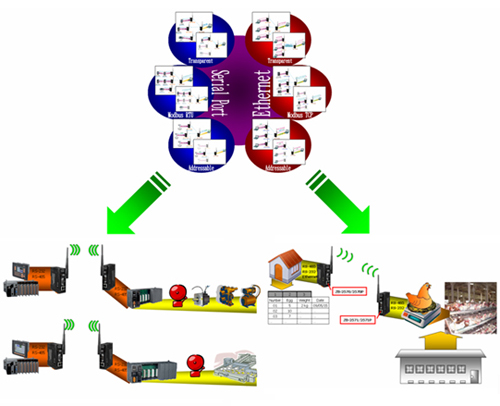

• Applications: Industrial control, medical data collection, smoke and intruder warning, building automation, home automation, and domestics.
