Programmable Automation Controllers

ICP DAS USA offers Windows CE .NET, Linux, and XP embedded PAC's. As a Microsoft Embedded partner, ICP DAS USA works closely with Microsoft and develop devices that offers stout industrial capabilities, via a palatable GUI for users of any level to interact with. This revolutionary Windows CE .NET programmable automation controller provides the integration of PC and PLC.

  • For a full selection of compatible I/O, please click here!

Select PAC by Programming Language!

Programmable Automation Controllers by Operating System


ViewPAC: Display, Operation & Control

ViewPAC is a Programmable Automation Controller (PAC) which combines display, operation and control in one unit. It overthrows traditional image that HMIs and controllers are working separately and solves many communication problems between HMIs and controllers. ViewPAC provides two CPU types (PXA270,80186), 3 OS solutions (WinCE 5.0, Linux, MiniOS7) and several software development toolkits (C, VS .NET, ISaGRAF, InduSoft). This makes ViewPAC a good solution for factory automation, building automation, machine automation, manufacturing management, environment monitoring, etc.

ViewPAC Application Diagram

Click here to shop by tables


All Products

WinPAC Windows CE PAC

WinPAC-8000 is our 2nd generation Windows embedded Programmable Automation Controller (PAC). It features a PXA270 CPU (520MHz) on a Win CE .NET 5.0 operating system, various communication ports including VGA, USB, Ethernet, RS-232/485, and 1/4/8 slots for I/O expansion bus like high performance parallel I/O modules high profile I-8K series and serial-type I/O modules high profile I-87K I/O modules. This new generation Windows embedded WinPAC Programmable Automation Controller improves the CPU performance from 206 MHz to 520 MHz, upgrades the OS from Windows CE .NET 4.1 to 5.0, and adds features such as dual LAN, redundant power input, dual battery backup SRAM, etc. It combines traditional PLCs and Windows supported PCs.

Winpac Application Diagram

Click here to shop by tables


All Products

TouchPad Touch Screen Controllers

The ICP DAS USA TouchPad is a tiny touch screen controller HMI device designed for building and home automation. The TPD series Touch Screen PLC's are programmable logic controllers with a high definition TFT color screen to display and monitor your devices. Our touch screen controllers like TPD-28X series can fit in regular electrical wall-mount outlets. With a beautiful, flexible and user-defined picture display, our touch screen PLC's can be easily integrated with your other I/O modules. Our touch screen controller supports a wide range of temperatures, and are ideal for your various automation and control needs. The TouchPad series touch screen controllers come with free Ladder Designer Software for PLC users and a C/C++ language development environment for C/C++ Programmers, which allows users to quickly and easily develop your programs.


All Products

X-PAC Windows XP Embedded PAC

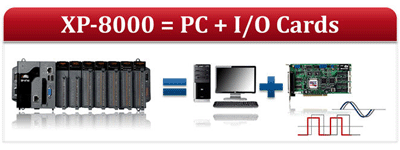

XP-8000 is an embedded personal computer which is dedicated for industrial control. XP-8000 is the new ICP DAS generation Programmable Automation Controller. It equips an AMD LX 800 CPU (500 MHz) running a Windows Embedded Standard 2009 operating system, variant connectivity (VGA, USB, Ethernet, RS-232/RS-485) and 3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). The Windows Embedded Standard 2009 OS has many advantages. It has the same Win32 API as Windows XP Professional. Almost every desktop program can be easily ported to Windows Embedded Standard 2009. This effectively reduces the efforts of developments and shortens the time to market.

ICP DAS XPAC Application Diagram

Click here to shop by category tables


All Products

LinPac Linux based PAC

With more processing power, more standard memory and Linux kernel 2.6, our LinPAC series Linux controller is an all-in-one automation and control solution. It packs amazing performance into a portable-size, boasting a bunch of new functions. Linux is a stable, free and open source operating system widely used in industrial automation and control applications. Linux does not require much on the hardware of embedded systems. Upgrading from our former LinCON Linux controller is seamless. The new LinPAC series Linux controller is fully compatible with all of your original programs which ran on your LinCon. Just copy and paste the programs into your LinPAC Linux controller. Viola! Everything functions the same on a more powerful Linux programmable automation controller.

ICP DAS LINPAC Application Diagram


All Products

Micro PAC

Our Micro Programmable Automation Controllers have fast-booting operating systems called MiniOS7 developed for C-Language based controllers. The μPAC meets every requirement for general applications; such as data acquisition, automation systems, and remote control. Benefits of our uPAC controllers are: faster CPU, 10/100 Base-TX Ethernet communication, and low power consumption. μPAC-7186 series are suitable for sophisticated applications. Many optional expansion boards are available for our μPACs to provide DI, DO, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM and other I/O functions. For those who are familiar with soft logic, ICP DAS also provides IEC 311 ISaGRAF-based μPACs.



Click here to shop by tables

All Products

WISE Expansion I/O Modules

The WISE expansion I/O module is an easy-to-use user-defined IO expansion controller. It features WISE rule engine, and communicates over Modbus TCP. Based on ICP DAS IO technology, there are various X-Board IO modules for users to choose from to meet their demands for use in various industrial applications. WISE modules also supports Power over Ethernet (PoE) function.

WISE-5800 Application Diagram


All Products

WISE-4000(D)

The WISE-4000(D) module is an smart analog and digital IO GSM/GPRS programmable automation controller. It features easy-to-use interface, WISE logic rule engine, built-in IO, and communicates over Modbus TCP. WISE-4000 can send out Emails, SMS text messages and CGI commands for alarm status.

WISE-4000D Application Diagram


All Products

LinCON Linux based PAC

LinCON is being phased out. LinCON has been replaced by LinPAC. Click here for LinPAC product details.

Linux powered programmable automation controller, offering IPC, PLC and HMI, in one streamlined industrial control package! ICP DAS offers multiple variants of the LinCON PAC platform to develop on; so whether you are seeking a stable PLC platform, to implement IEC-1131 based programming (ladder logic, flow chart, structured text, sequential function chart, function block, or instruction list), or discreet embedded control via C, VB, or any other .Net language, ICP DAS offers a Linux based programmable automation control platform for you!

ICP DAS LINPAC Application Diagram


All Products

WinCON Windows CE PAC

WinCON is being phased out. WinCON has been replaced by WinPAC. Click here for WinPAC product details.

Windows powered programmable automation controller. The ICP DAS WinCON PAC combines IPC, PLC, and HMI functions in one unit. The WinCON offers various development tools for PLC's, platform, IEC-1131 based programming (ladder logic, flow chart, structured text, sequential function chart, function block, or instruction list), and discreet embedded control via C, VB, or any other .Net language, ICP DAS offers a programmable automation control platform for you!

Winpac Application Diagram


All Products

DDC Direct Digital Control Devices

Another addition to the PAC family, the ISaGRAF based DDC Direct Digital Controllers, which fully supports all five of the IEC61131-3 standard for PLC Programmable Logic Controller languages, are PACs (Programmable Automation Controllers) that allows for direct controlling to your devices making the DDC ideal for quick and easy deployment.


All Products

InduSoft Windows CE Standard PACs
The IWS PAC series is a WinCE based InduSoft PAC of ICP DAS USA. These devices have a RISC-based CPU board, a rugged sized TFT LCD touch screen flat panel display well suited for a array of HMI applications. Interface connectivity types for this device includes Gigabit Ethernet, USB port, RS-232 and RS-485. The on-board flash memory has the operating system pre-installed. Expandable remote I/O, ethernet I/O, RS-485 I/O, Wi-FI, and Zigbee wirless I/O is also made available to work with the IWS PACs. The front panel is NEMA 4/IP65 rated, which mean this device can withstand sprayed water, extreme dust, and humidity.

Indusoft PAC Application Diagram


All Products

ISaGRAF PACs

Our ISaGRAF PACs include a DOS-like MiniOS7 Embedded Operating System, ISaGRAF Ver.3 SoftLogic Inside, they Support IEC 61131-3 Standard, and Accepts max. 64 KB ISaGRAF code size. They are equipped with an 80186, 80 MHz CPU running a MiniOS7 operating system, various connectivity (Dual 10/100 Base-TX Ethernet Ports for iP-8x47, one RS-232/485 port, one RS-485 port and two RS-232 ports) and 4/8 slots for high performance Parallel I/O modules (high profile I-8K series) and high performance Serial I/O modules (Hot-Swap high profile I-87K I/O modules).

IsaGRAF PAC Application Diagram


All Products

Motion Programmable Automation Controller (MPAC)

MPAC Series are Motion Control based Programmable Automation Controllers provided by ICP DA USA. They come with easy to use EzProg Software that help with developing motion control programs for Windows CE 5.0 and 6.0 systems quickly. EzProg Software includes HMI, logic control, I/O libraries, motion control and communication tools and libraries.

Application Diagram Image MPAC-8000


All Products

Smart View

Easy to use Smart View PACs come with a Windows CE 7 Operating system and are designed for M2M and IoT applications. Smart View PACs have Touch Screens for control and monitoring. They are remotely accessible through a standard web browser. They support OPC UA Industrial Communication Standard Protocol for easy integration with OPC servers. They come with free Creator Integrated Development Environment for creating HMI's, control and monitoring applications. On-line and Off-line simulation is supported.

ICP DAS Smart View Application Diagram


All Products

uPAC-5002


The μPAC-5XX1 series is an enhanced version of μPAC-7186EX. It provides C tool kits for C programmer.   More....


DETAILS   ADD TO CART

uPAC-5002-FD


The μPAC-5XX1 series is an enhanced version of μPAC-7186EX. It provides C tool kits for C programmer.  More....


DETAILS   ADD TO CART

uPAC-5002-SM


The μPAC-5XX1 series is an enhanced version of μPAC-7186EX. It provides C tool kits for C programmer.  More....


DETAILS   ADD TO CART
