Universal PCI bus
  • 3-axis encoder counter
  • True 32-bit counter
  • Encoder Counting Rate: 4 MHz (Max.)
  • Third-order internal digital filter
  • A+, A-, B+, B-, C+, C- inputs
  • Index (C channel) reset counter function
  • Hardware reset (HR1 ~ HR6), reset counter function
  • 68-pin SCSI-II connector
    • " />

    > Data Acquisition > Motion Control > PC-based Motion Control Boards > PISO-ENCODER300U

    Universal PCI Bus, 3-axis Encoder Input Card (RoHS) Includes CA-SC68, SCSI-II 68-pin Male Connector (Solder Type) with Cover <ul > <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>Universal PCI bus</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>3-axis encoder counter</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>True 32-bit counter</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>Encoder Counting Rate: 4 MHz (Max.)</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>Third-order internal digital filter</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>A+, A-, B+, B-, C+, C- inputs</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>Index (C channel) reset counter function</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>Hardware reset (HR1 ~ HR6), reset counter function</li> <li style=''box-sizing: border-box; margin: 0px; padding: 0px;''>68-pin SCSI-II connector</li> </ul>

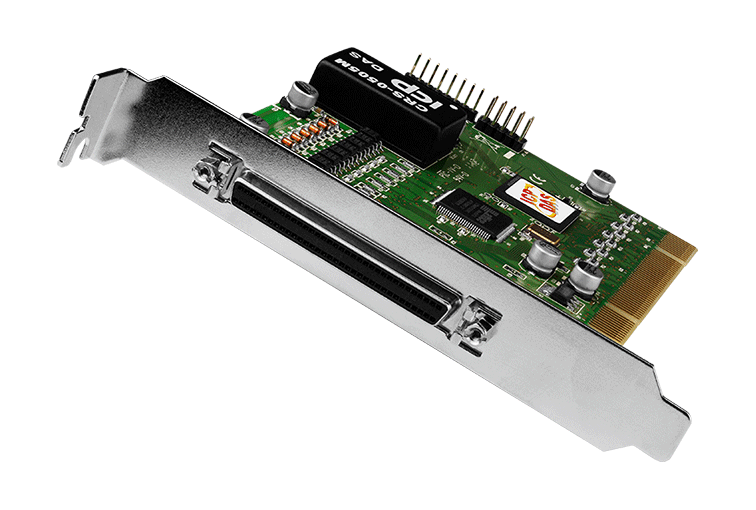

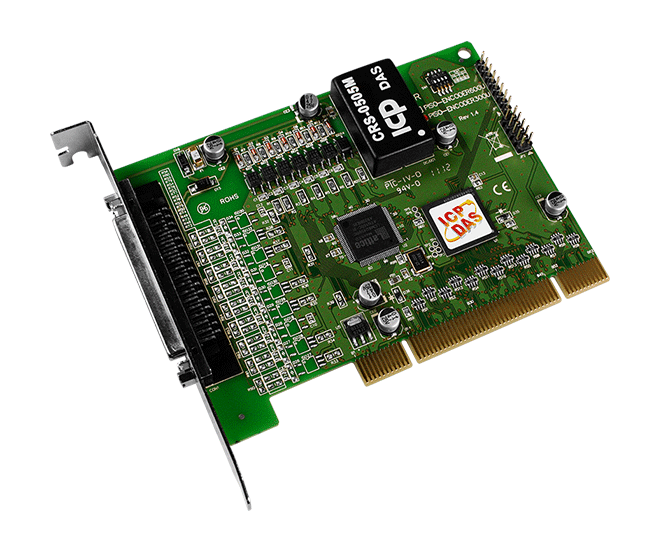

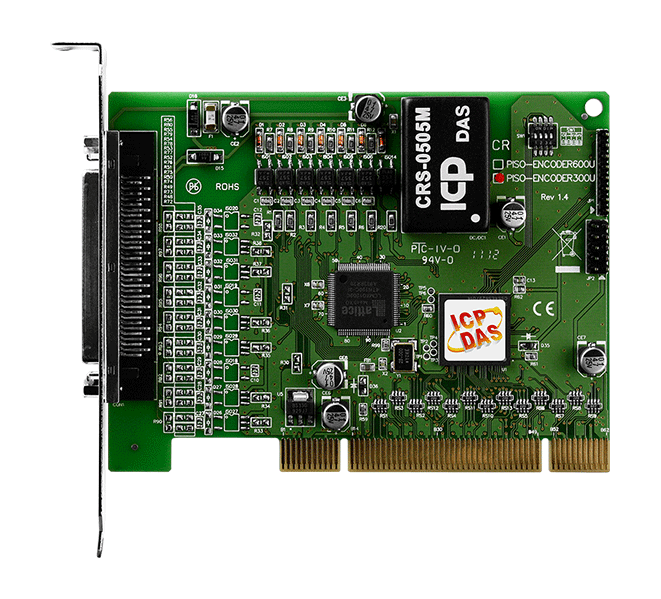

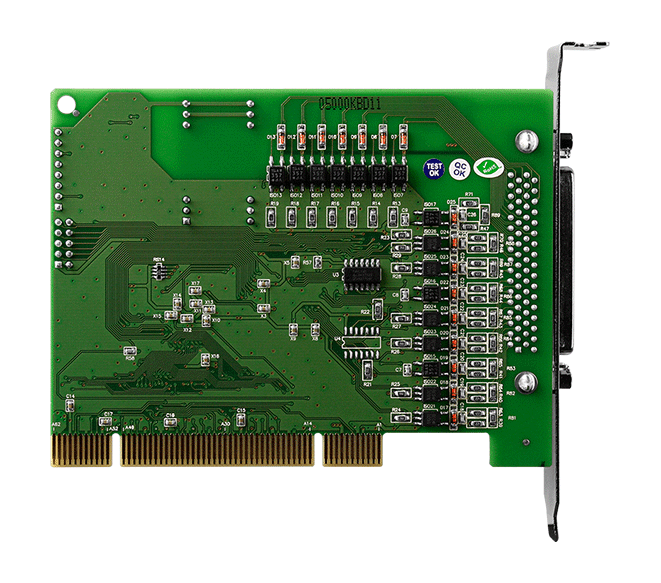

    PISO-ENCODER300U

    write a review write a review

    Universal PCI Bus, 3-axis Encoder Input Card (RoHS) Includes CA-SC68, SCSI-II 68-pin Male Connector (Solder Type) with Cover

    • Universal PCI bus
    • 3-axis encoder counter
    • True 32-bit counter
    • Encoder Counting Rate: 4 MHz (Max.)
    • Third-order internal digital filter
    • A+, A-, B+, B-, C+, C- inputs
    • Index (C channel) reset counter function
    • Hardware reset (HR1 ~ HR6), reset counter function
    • 68-pin SCSI-II connector

      Price:  $519.00

    Fastest Delivery: (Details) X Delivery Details
    We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
    ADD TO CART
    ADD TO CART
    BUY BY 1-CLICK
    Email Product Details Write a Review Write a Review Email Us
    References and Support Add to Quote

    Features

    Introduction

    PISO-ENCODER300U contains a 3-axis encoder counter.  Each axis has a 32-bit, high-resolution true counter with an Encoder Counting Rate of 4 MHz max. The counting mode supports:  Quadrant mode, CW/CCW mode, and PULSE/ DIR mode. It has three counter reset modes: Register Reset, Index Reset, and Hardware Reset. The "Index Reset" mode resets by using a C+/C- channel, which resets the counter on each revolution. The "Hardware Reset" mode resets the counter using external pin (HR1 ~ HR6). The HR1 ~ HR6 pins can also be used as digital inputs. The PISO-ENCODER300U has 8 digital outputs.  2500 Vrms photo-couplers are used to isolate the digital I/O which prevents high voltages from affecting the system.  It comes with device drivers and function libraries for DOS, Windows 7 and Windows XP/2000.

    Applications


    • Semiconductor Manufacturing
    • Component Inspection
    • Manufacturing Quality Control
    • Food and Beverage Inspection
    • Microscopy and Medical Imaging
    • Biometrics Applications
    • X-Y-Z Table
    • Fix-pitch Stamping Machinery
    • Transfer Machinery
    • Spinner
    • Load/Unload

              PC-based-solution

                                      Application System Structure

    Specifications

    Software
    OS Support Windows 7/10 32/64-bit
    Windows XP/2000 32-bit
    SDK DOS 6.2 , Linux 2.6
    Labview 8.5 and above
    Hardware
    Connector 68-pin SCSI-II Female
    General
    No. of Axes 3
    Encoder Input
    Mode Quadrant, CW/CCW, PULSE/DIR
    Counting Rate 4 MHz (Max.)
    Pulse Output
    Counter Width 32-bit
    Digital Input
    Channels 6
    Isolation 2500 Vrms optical isolation
    Digital Output
    Channels 8
    Isolation 2500 Vrms optical isolation
    PC Bus
    Type Universal PCI bus
    Power
    Consumption +5 V @ 500 mA
    Mechanical
    Dimensions (mm) 120.4 mm x 90.8 mm
    Environment
    Operating Temperature 0 ~ +60°C
    Storage Temperature -20 ~ +80°C
    Humidity 5 ~ 85% RH, Non-condensing
