Zigbee 14 sink type digital output channels with short circuit protection. All channels feature photo-couple isolation with 14 LED indicators to display the DO channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are the standard.

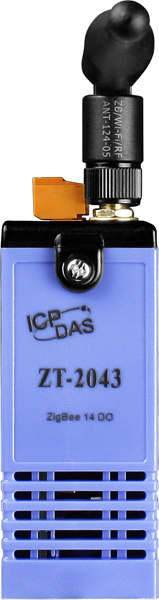

ZT-2043

Zigbee 14 sink type digital output channels with short circuit protection. All channels feature photo-couple isolation with 14 LED indicators to display the DO channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are the standard.

  Price:  $349.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

ZT-2043 Application Image

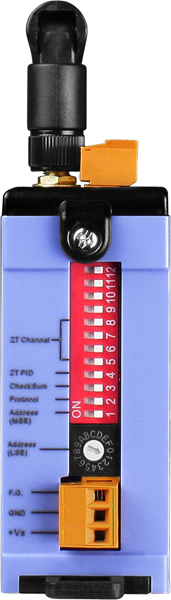

The ZT-2043 offers 14 sink type digital output channels with short circuit protection. All channels feature photo-couple isolation. The ZT-2043 includes 14 LED indicators to display the DO channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are the standard. Users can easily configure the module address, protocol, checksum, ZB-PID and B-channel settings using a combination of rotary and DIP switches.
  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G /ZigBee Specifications
  • Wireless Transmission Range up to 700 m
  • GUI Configuration Software (Windows Version)
  • 14 Digital Output Channels for Open Collector
  • Short Circuit Protection
  • Surge and ESD Protection
  • DIN-Rail Mountable
  • Communicable over Modbus RTU
  • RoHS Lead free product

Specifications

Communication Interface
Wireless Standards
ZigBee 2007 Pro
Transmission Power
11dBm (FCC Certificated) (Max 19dBm)
2.4 GHz Antenna
5 dBi Omni directional
Transmission Range (LoS)
700 m (Typical)
Certification
Yes
Max. Slaves in ZigBee Network
255
ZB-100R/ZB-100T Support
-
Protocols
Supports DCON and Modbus RTU Protocols
How Swap
Rotary and DIP switch
LED Indicators
Power
1 LED, Red
ZigBee Communications
1 LED, Green
Digital Output
14 LEDs, Red
Isolation
Intra-module Isolated, Field-to-Logic
3750 VDC
EMS Protection
ESD (IEC 61000-4-2)
4 kV Contact for Power Line, Communication Line and each Channel, 8 kV Air for Random Point
EFT (IEC 61000-4-4)
4 kV for Power
Surge (IEC 61000-4-5)
3 kV for Power
Power

Power Consumption
0.84 W Max
Mechanical

Flammability Fire Retardant materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 107 mm
Installation
DIN-Rail
Environment
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Relativel Humidity
10 ~ 90% RH, Non-condensing

I/O Specifications

Digital Output
Output Channels
14 (Sink)
Output Types
Isolated Open Collection
Max. Load Current
700 mA/channel
Load Voltage
+5 VDC ~ +50VDC
External Power Reversed Protection and Short Circuit Protection
Yes
Current Limited Protection
1.1 A
