4-ch AO, 4-ch DI and 4-ch Power Relay Expansion Board

XV303

4-ch AO, 4-ch DI and 4-ch Power Relay Expansion Board

  Price:  $309.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

  • Multifunction (4 AO, 4 DI, 4 Relay)
  • Individual Channel Configuration for Analog Output
  • Jumper Selectable Voltage or Current Output
  • Open Wire Detection for Current Output
  • Configurable Power-on Value Settings
  • 70 VDC Overvoltage Protection for Digital Input
CE FCC RoHS WEEE

Introduction

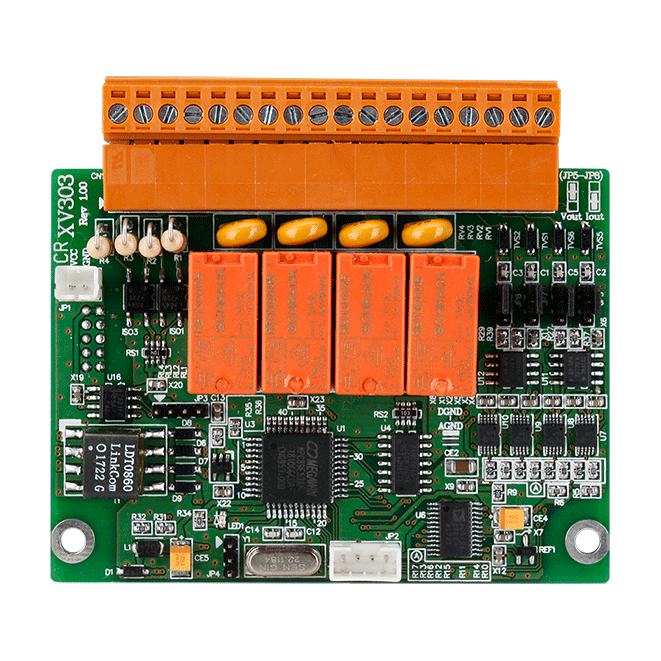

The XV303 is a multifunction expansion board that includes 4 Analog Output channels, 4 Digital Input channels and 4 Form A Relay Output channels. The Analog Output channels are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA, and voltage and current outputs are jumper selectable. The XV303 also provides options for configuring power-on values for the Analog Output and Digital Output. 4 kV ESD protection and 2000 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.

Specifications

Isolation
Intra-module Isolation 2000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal
Analog Output
Channels 4
Type 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable)
Resolution 12-bit
Accuracy ±0.1%
Voltage Output Capability 10 V @ 20 mA
Current Load Resistance 500 Ω
Individual Channel Configuration Yes
Power on Value Yes
Digital Input/Counter
Channels 4
Type Wet Contact, Sink/Source
Wet Contact, ON Voltage Level +3.5 ~ +50 VDC
Wet Contact, OFF Voltage Level +1 VDC Max.
Max. Counts 32-bit (0 ~ 4, 294, 967, 285)
Frequency 50 Hz
Min. Pulse Width 10 ms
Input Impedance 10 KΩ, 0.5 W
Overvoltage Protection 70 VDC
Relay Output
Channels 4
Type Power Relay (Form A)
Contact Material Silver Cadmium Alloy
Contact Rating 6 A @ 35 VDC
6 A @ 240 VAC
Operate Time 5 ms (typical)
Release Time 1 ms (typical)
Electrical Endurance 1 x 10^5 ops.
Mechanical Endurance 30 x 10^6 ops.
Yes
COM Ports
Ports 1 x RS-232
Baud Rate 115200 bps
Data Format N, 8, 1
Protocol Modbus/RTU
Power
Consumption 2.9 W Max.
Powered from Terminal Block 5 VDC
Mechanical
Dimensions (mm) 59 mm x 82 mm x 13 mm (W x L x H)
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing
