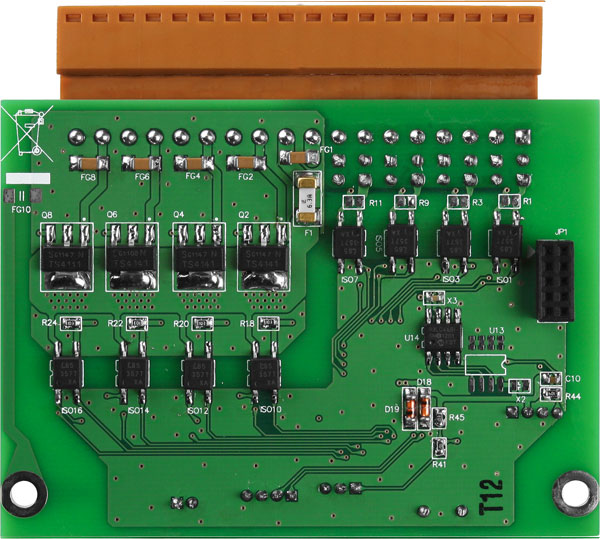

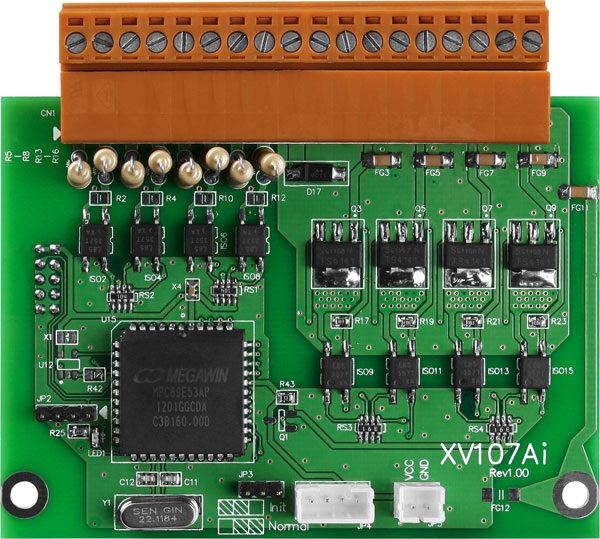

Expansion I/O Board for VPD Touch Screen Controllers with 8 Isolated Sink-type Digital Inputs and 8 Isolated Source-type Digital Outputs

XV107A

Expansion I/O Board for VPD Touch Screen Controllers with 8 Isolated Sink-type Digital Inputs and 8 Isolated Source-type Digital Outputs

  Price:  $129.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

Featured Description

The XV107 provides 8 channels for digital input and 8 channels for digital output, each of which features photocouple isolation. The XV107 supports sink-type output with short circuit protection, while the input is source-type. All input channels can be used an 32-bit counters. There are options for configuring power-on digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The XV107A has the same specifications as the XV107, except that the input and output types are reversed.



  • Sink-type Digital Output
  • Source-type Digital Input
  • All Input Channels Can Be Used As 32-bit Counters
  • Configurable Power-on Value Settings
  • 70 VDC Overvoltage Protection for Digital Input
  • Overload Protection for Digital Output
  • Short-circuit Protection for Digital Output

Reference & Support

Specifications

Communication
Interface
RS-232/TTL
Format
N, 8, 1
Baud Rate
115200 bps
Protocol
Modbus/RTU
Isolation
Intra-module Isolation, Field-to-Logic
3750 VDC
EMS Protection
ESD (IEC 61000-4-2)
±4 kV Contact For Each Terminal, ±8 kV Air For Random Terminal
Power
Powered from Terminal Block
5 VDC
Consumption
0.45 W Max.
Mechanical
Dimensions (W x L x H)
59 mm x 82 mm x 13 mm
Environment
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Humidity
10 ~ 90% RH, Non-condensing
Digital Input
Input Channels
8
Type
Source
On Voltage Level
Dry Contact - , Wet Contact - +3.5 ~ +50 VDC
Off Voltage Level
Dry Contact - , Wet Contact - +1 V Max.
Input Impedance
Dry Contact - , Wet Contact - +1 V Max.
Counters, Channels
8
Counters, Max. Count
32-bit (0 ~ 4, 294, 967, 285)
Counters, Max. Input Frequency
32-bit 50 Hz
Counters, Min. Pulse Width
10 ms
Overvoltage Protection
70 VDC
Digital Output
Output Channels
8
Type
Sink
Max. Load Current
650 mA/channel
Load Voltage
10 ~ 40 VDC
Over Voltage Protection
47 VDC
Short-circuit Protection
Yes
Power On Value/strong>
Yes, Programmable
