> Programmable Automation Controllers > X-PAC Windows Embedded PAC > XP-8731-WES7

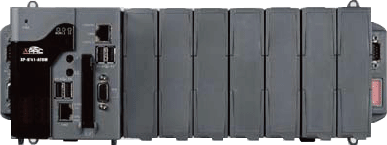

Programmable Automation Controller, Windows Embedded Standard 7, with 7 Expansion Slots. Supports operating temperatures of -25 ~ +75 °C.

XP-8731-WES7

write a review write a review

Programmable Automation Controller, Windows Embedded Standard 7, with 7 Expansion Slots. Supports operating temperatures of -25 ~ +75 °C.

  Price:  $4,999.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Send Email with Product Info
Write a Review Write a Review Email Us
References and Support Add to Quote

Features

The XP-8000-WES7 series are WES7 based Programmable Automation Controller of ICP DAS. By combining computing, I/O, and operator interface into a single unit. Embedded with a x86 (1 GHz, dual-core) CPU, 1/3/7 I/O expansion slot(s) and dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface connectivity, the XP-8000-WES7 series provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC.. Local I/O slots can be used with I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.

Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.

  • Windows Embedded Standard 7
  • x86 CPU, 1 GHz, dual-core
  • Audio with Microphone-In and Earphone-Out
  • VGA Port Output
  • Support eLogger HMI
  • High Performance PC Power, Open System
  • Redundant Power Inputs
  • Operatiog Temperature: -25 ~ +75 °C

Software Features

  1. Windows Embedded Standard 7
  2. Internet Information Services
    • FTP server and web server
  3. ASP.NET
  4. .NET Framework 3.5/4.5
  5. Remote Desktop Connection
  6. Rich Software Solutions
    • SDK for Microsoft Visual Studio.NET 2005/2008 and Visual Studio 6.0 Borland C++ Builder and Delphi

HArdware Features

  1. Powerful CPU Module
    • x86 CPU, 1 GHz, dual-core
  2. Memory size
    • DDR3 SDRAM (2 GB), Built-in Flash Disk (32 GB)
    • EEPROM (16 KB), CF Card (8 GB)
    • Dual Battery Backup SRAM (512 KB)
  3. VGA Port x 1, USB 2.0 Port x 4
  4. Programmable LED indicator x 2
  5. Audio with Microphone-In and Earphone-Out
  6. 64-bit Hardware Serial Number
  7. Dual Watchdog Timers
  8. 4 Serial Ports (RS-232/RS-485)
  9. Dual Giga bit Ethernet Ports (10/100/1000M)
  10. Redundant Power Input
  11. DIN-Rail or Wall Mounting
  12. Operating Temperature: -25 ~ +75 °C

Specifications

System Software
OS Microsoft Windows Embedded Standard 7
.Net Compact Framework 4.5
Embedded Service FTP Server, IIS 7, ASP (Java Script, VB Script)
SDK Provided Dll for VC, VB, Delphi, BCB, Visual Studio .NET 2005/2008
Multi-Language Support English, German, French, Spanish, Russian, Italian, Portuguese, Korean, Japanese, Simplified Chinese, Traditional Chinese
CPU Module
CPU x86 CPU, 1 GHz, dual-core
SDRAM 2 GB DDR3 SDRAM
Dual Battery Backup SRAM 512 KB (for 5 years data retain while power off)
Flash 32 GB
EEPROM 16 KB
Data Retention: 40 years; 1,000,000 erase/write cycles
CF Card 8 GB (support up to 32 GB)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator 2
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timers Yes
Rotary Switch Yes (0 ~ 9)
DIP Switch Yes (8 bits)
Audio Microphone-In and Earphone-Out
VGA & Communication Ports
VGA Yes, (resolution: 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480)
Ethernet (Giga bit) RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 4
COM 1 Internal communication with the high profile I-87K series modules in slots
COM 2 RS-232 (RxD, TxD and GND); non-isolated
COM 3 RS-485: D2+, D2-; self-tuner ASIC inside
Isolation: 3000 VDC
COM 4 RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number 7
Hot Swap * Will be available For High Profile I-87K Modules Only
Mechanical
Dimensions (W x L x H), unit: mm 355 x 132 x 125
Installation DIN-Rail or Wall Mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Ambient Relative Humidity 10 ~ 90% RH,non-condensing
Power
Input Range +10 ~ +30 VDC
Isolation 1 kV
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity 35 W
Consumption 18 W
