1 Channel A/D (0 ~ 10V), 1 Channel A/D (0 ~ 20mA), 2 Channel D/A (0 ~ 10V), 3 Channel D/I, and 3 Channel D/O Module

X310

1 Channel A/D (0 ~ 10V), 1 Channel A/D (0 ~ 20mA), 2 Channel D/A (0 ~ 10V), 3 Channel D/I, and 3 Channel D/O Module

  Price:  $169.99

Features

  • For use with 7188XB, 7188XG, 7188EX, and 7188EG controllers
  • Specifications

    Analog Input
    • Channel : 2
    • Resolution : 12-bit
    • Input Range/Type :
    • Ch0 : 0 ~ 20 mA
    • Ch1 : 0 ~ 10 V
    • Sampling rate :1800 Hz
    • Input impedance: 1MΩ
    • Isolated : none

    Analog Output

    • Channel : 2
    • Resolution : 12-bit
    • Input Range/Type : 0~10 V
    • Sampling rate :1300 Hz
    • Capacity: 20mA
    • Isolated : none

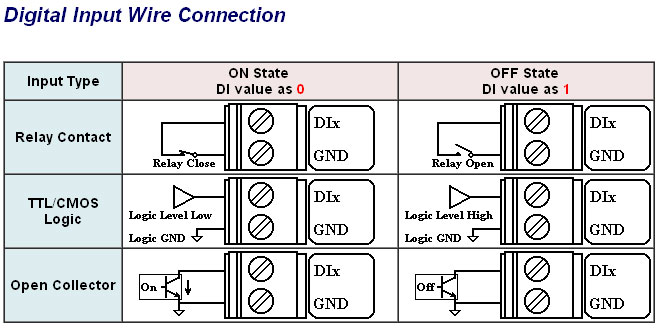

    Digital Input

    • Channels : 3
    • Input Voltage:
      Logic high level (3.5V ~ 30V)
      Logic low level (0V ~ 1V)
    • Isolated : none

    Digital Output

    • Channels: 3
    • Open-collector Output : 100 mA / 30V max
    • Isolated : none

    Power Consumption: 0.9W
