- Cortex-A8, 1GHz CPU
- 512 MB SDRAM and 256 MB Flash
- Windows CE 7.0
- Embedded Win-GRAF SoftLogic (IEC 61131-3)
- VGA Port Output
- Modbus RTU/TCP (Master, Slave)
- Support eLogger HMI
- Redundant Power Inputs

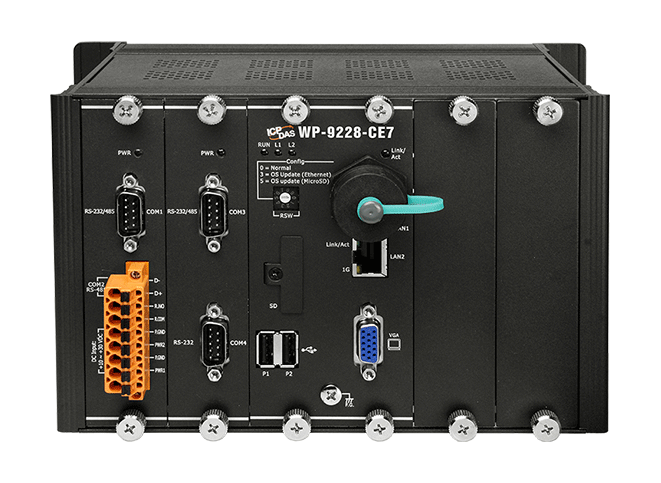

The Win-GRAF WinPAC-9000-CE7 Series (WP-9228-CE7/9428-CE7/9828-CE7) is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-9000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2/4/8 expansion I/O slots that can be used to integrate high-performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules.
The benefits of running Windows CE 7.0 on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The WP-9x28-CE7 series PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.
- Data Binding function allows exchanging data among PACs.
- On-line Change function can make minor changes during the project is running. There is no need to call off the running program.
- Support Online debug/ control, and Offline simulation for programs.
- Can create customized Function Blocks using Visual Studio 2008 and run in Win-GRAF.
WP-9000 CE7 Feature:
- Metal Enclosure
- Power/Communication Spring Clamp Terminal Connector
- Rugged RJ-45 Connector for LAN1
|OS||Windows CE 7.0|
|Development||Embedded Win-GRAF SoftLogic (IEC 61131-3)|
|Service||FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server|
|Framework Support||.Net Compact Framework 3.5|
|Multilanguage Support||English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese|
|SDK||Dll for VC, Dll for Visual Studio.Net 2008|
|CPU||Cortex-A8, 1.0 GHz|
|64-bit Hardware Serial Number||Yes|
|System Memory||512 MB DDR3 SDRAM|
|Non-Volatile Memory||128 KB MRAM, 16 KB EEPROM|
|Storage||256 MB Flash, 4 GB SD card (up to 32 GB)|
|Real Time Clock||Provide seconds, minutes, hours, dates, day of week, month, year|
|Watchdog Timer||Dual Watchdog Timer|
|Resolution||800 x 600, 1024 x 768|
|Status||1 x System, 2 x Power, 2 x Programmable|
|I/O Type||I-9K, I-97K series|
|Ports||1 x RS-232, 1 x RS-485, 2 x RS-232/485 (3000 VDC Isolated)|
|Rotary Switch||1 x 10 Position (0 ~ 9)|
|Ports||2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)|
|Ports||2 x USB 2.0|
|Input Range||+10 ~ 30 VDC (1 kV Isolated)|
|Redundant Power Inputs||Yes|
|Dimensions (mm)||239 x 133 x 164 (W x L x H)|
|Installation||DIN-Rail, Wall mounting|
|Ingress Protection Rating||IP30 (Aluminum)|
|Operating Temperature||-25 ~ +75°C|
|Storage Temperature||-30 ~ +80°C|
|Humidity||10 ~ 90% RH, Non-condensing|
