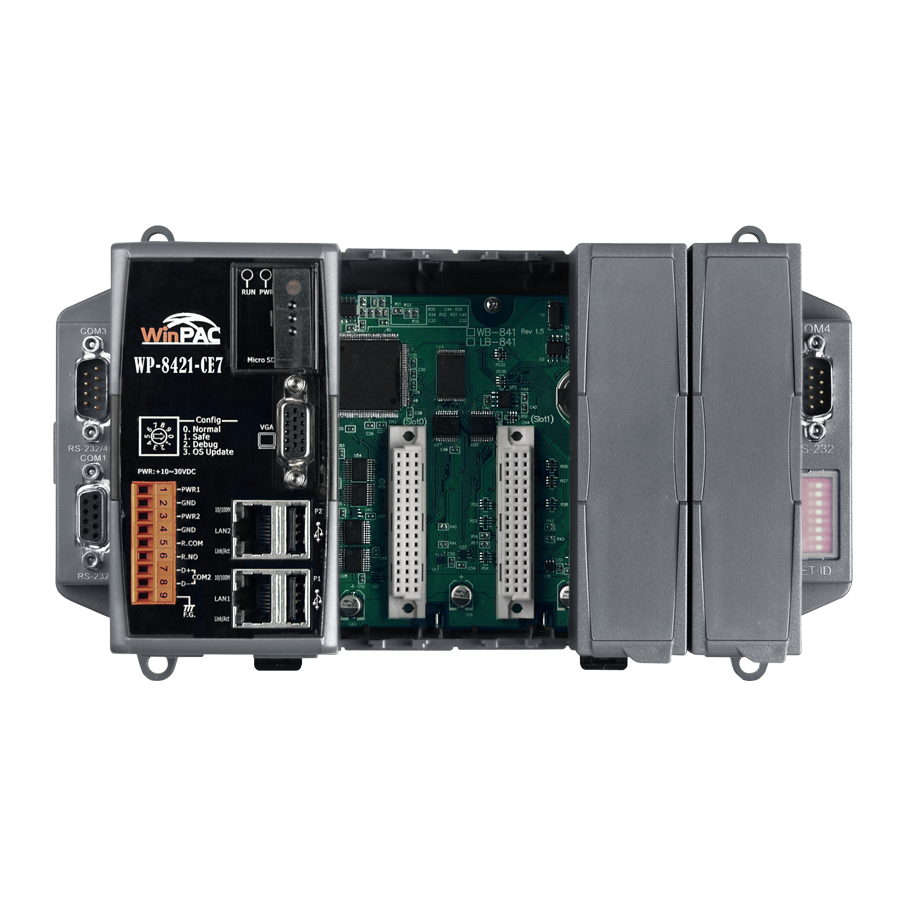

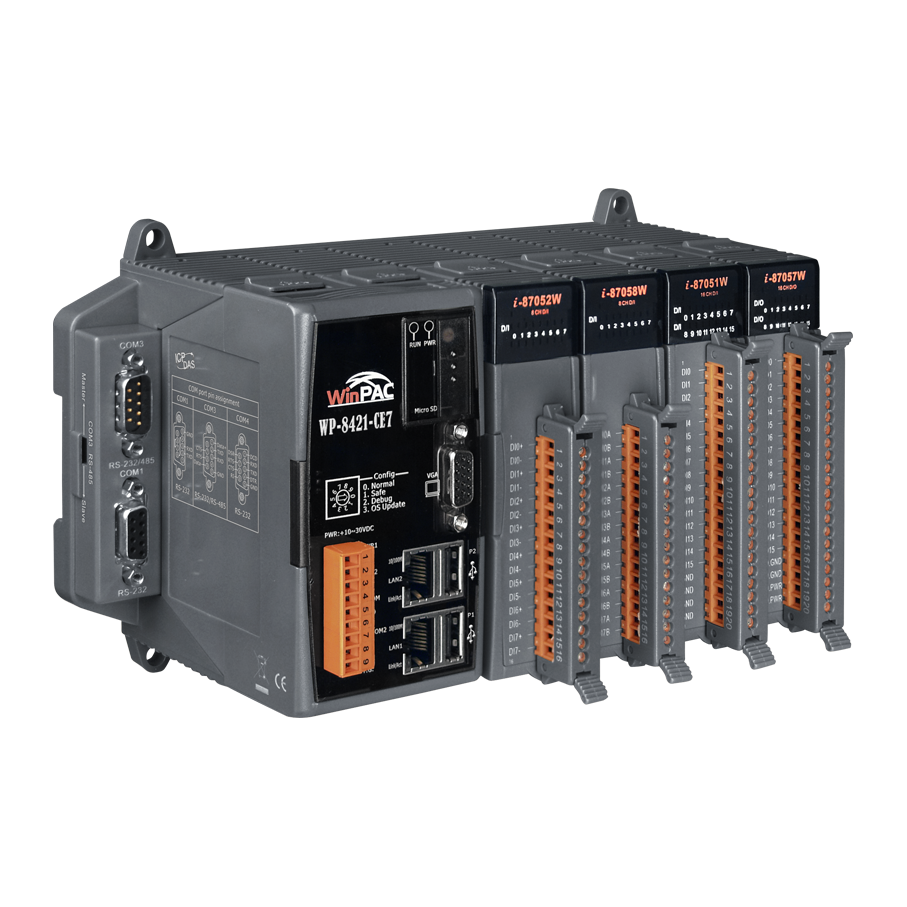

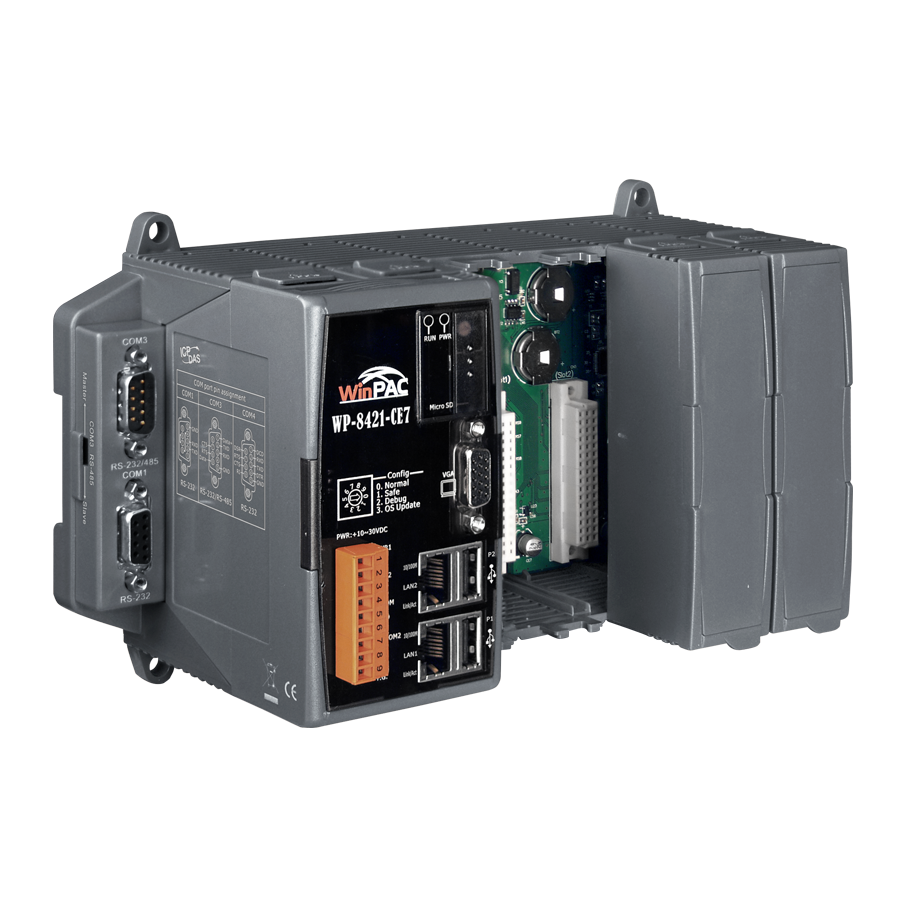

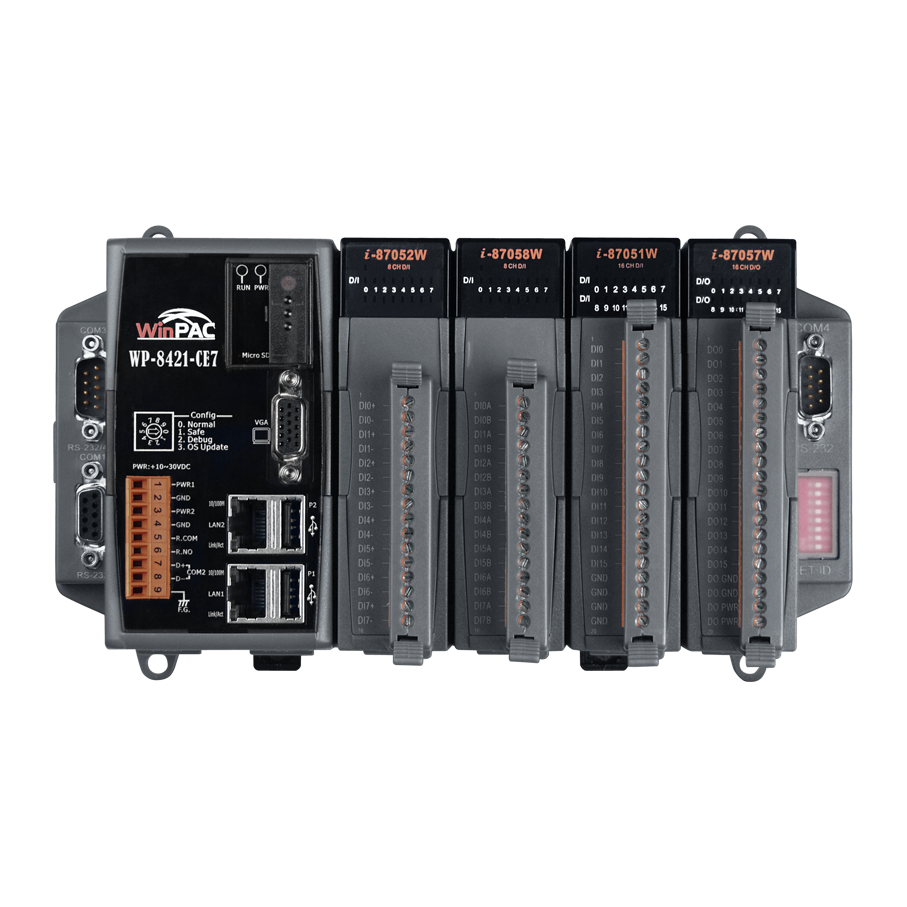

WP-8421-CE7
Standard WinPAC-8000-CE7 with 4 I/O Slots. Programmable in Visual Basic.NET, Visual C#, Visual C++. Comes with free eLogger data logging, control and monitoring software. Replacement product for WP-8441.
Features
The WP-8421-CE7 is a Windows CE 7.0 based PAC (Programmable Automation Controller) . Each WP-8421-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and equipped with 4 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.
Its operating system,Windows CE 7.0, has many advantages, including: hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 7.0 in the WP-8421-CE7 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Visual C++, SCADA software, Soft PLC …etc.
- Cortex-A8, 1GHz CPU
- 512 MB DDR3 and 256 MB Flash
- Windows CE 7.0 Professional
- Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Slots
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input
- Operating Temperature: -25 ~ +75°C
Specifications
System Software
OS
Windows CE 7.0
.Net Compact Framework
3.5
Embedded Service
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided
Dll for VC, Dll for Visual Studio.Net 2008
Multi-Language Support
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines
CPU Module
CPU
Cortex-A8 (1.0 GHz)
DDR3 SDRAM
512 MB
MRAM
128 KB
Flash
256 MB
EEPROM
16 KB
microSD
microSD slot with one microSD card (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number
Yes, for Software Copy Protection
Dual Watchdog Timers
Yes
Programmable LED Indicator
1
Rotary Switch
Yes (0 ~ 9)
DIP Switch
Yes (8 bits)
VGA & Communication Ports
VGA Resolution
800 x 600, 1024 x 768
Ethernet
RJ-45 x 2, 10/100/1000M Base-TX
USB 2.0
2
COM 0
Internal communication with the high profile I-87K series modules in slots
COM 1
RS-232 (RxD, TxD and GND); Non-isolation
COM 2
RS-485 (Data+, Data-);self-tuner ASIC inside; 3000 VDC isolated
COM 3
RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); Non-isolation
COM 4
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation
I/O Expansion Slots
4
Mechanical
Dimensions (W x L x H)
231 mm x 132 mm x 111 mm
Installation
DIN-Rail or Wall Mounting
Environmental
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH (non-condensing)
Power
Input Range
+10 ~ +30 VDC
Isolation
1 kV
Redundant Power Inputs
Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity
1.1A, 5V supply to CPU and backplane, 4.9A, 5V supply to I/O expansion slots, total 30 W
Consumption
9.1 W (0.38 A @ 24 VDC)
