3-Channel Analog Input (Current Input), 6-Channel Digital Inputs (16-bit Counters), and 3-Channel Power Relay Output PoE Module. Built-in Web Server, with operating temperature range of -25°C ~ +75°C (-13° ~ +167°F)

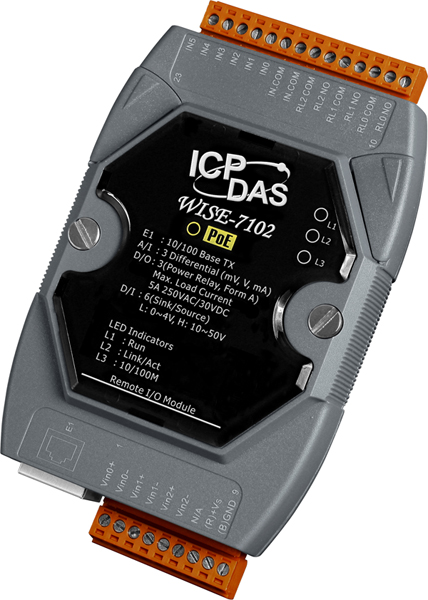

WISE-7102

3-Channel Analog Input (Current Input), 6-Channel Digital Inputs (16-bit Counters), and 3-Channel Power Relay Output PoE Module. Built-in Web Server, with operating temperature range of -25°C ~ +75°C (-13° ~ +167°F)

  Price:  $689.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

WISE-7102 (Web Inside, Smart Engine) is a device developed by ICP DAS USA that functions as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers with just a few clicks; no programming is required. With its powerful and easy-to-use features, it minimizes the learning curve, shorten time to market, and dramatically reduce effort and cost spent on system development.

The WISE-7102 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled networks by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. For cases under a non-PoE environment, WISE-7102 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.

This multi-function module WISE-7102 supports Modbus TCP protocol for seamless integration with SCADA software available. It features 3-channel analog inputs, 6-channel digital inputs and 3-channel Power Relay outputs. Each analog input channel provides 240 Vrms high over voltage protection.

  • Built-in Web Server for IF-THEN-ELSE rule setting
  • Built-in IF-THEN-ELSE rule engine for logic operation
  • No more programming. Just click and get it done!
  • Support IO, Counter, Timer, email operations
  • Modbus/TCP Protocol for SCADA Software Semaless Integration
  • IEEE 802.3af-compliant Power over Ethernet (PoE)
  • 10/100 Base-TX Ethernet
  • Analog Input: 3-channel (mV, V, mA)
  • Digital Output: 3-channel (Power Relay, Form A)
  • Digital Input: 6-channel (Wet)

Specifications

Analog Input
Input Channels 3 (Differential)
Input Type (Jumper Selectable) +/-150 mV, +/-500 mV, +/-1V, +/-5 V, +/-10 V
+0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA
Resolution 16-bit
Sample Rate 10 Sample/Sec. (Total)
Accuracy +/-0.1%
Zero Drift +/-20 μV/°C
Span Drift +/-25 ppm/°C
Overvoltage Protection 240 Vrms
Overcurrent Protection 50 mA max. at 110 VDC/VAC max
Input Impedence Voltage 2 MΩ
Current 125 Ω
Common Mode Rejection 86 dB min.
Normal Mode Rejection 100 dB
Individual Channel Configuration Yes
Open Wire Detection Yes, for 4 ~ 20 mA only
Digital Input
Input Channels 6
Contact Wet Contact
Sink/Source (NPN/PNP) Sink/Source
On Voltage Level +10 VDC ~ +50 VDC
Off Voltage Level +4 VDC Max
Input Impedence 10 KΩ, 0.5W
Counters Channels 6
Max. Counts 16-bit (65535)
Max. Input Frequency 50 Hmz
Min. Pulse Width 10 ms
Overvoltage Protection +50 VDC
Power Relay
Channels 3
Type Power Relay, Form A (SPST N.O.)
Operating Voltage Range 250 VAC/30 VDC
Max Load Current 5.0A/channel at 25°C
Operating Time 6 ms (Typical)
Release Time 3 ms (Typical)
Electrical Life (Resistive load) VDE: 5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C.
5 A @ 30 VDC 70,000 ops (10 ops/minute) at 75°C.
UL: 5 A @ 250 VAC/30 VDC 6,000 ops
3 A @ 250 VAC/30 VDC 100,000 ops.
Mechanical Life 20,000,000 ops. at no load (300 ops./minute).
Intra-module Isolation, Field-to-Logic 3750 VDC
System
CPU 16-bit CPU
SRAM 512 KB
Flash Memory 512 KB
EEPROM 16 KB
Watchdog Yes, Programmable over DCON
Communication
PoE Ethernet Port 10/100 Base-TX and automatic MDI/MDI-X
2-Way Isolation
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each terminal and ±8 kV Air for random poin
EFT (IEC 61000-4-4) ±4 kV for Power Line
LED Indicators
PoE PoE On
L1 System Running
L2 Ethernet Link/Act
L3 Ethernet 10/100M Speed
Power Requirements
Reserve Polarity Protection Yes
Powered from Terminal Block Yes, 12 ~ 48 VDC
Powered from PoE Yes, IEEE 802.3af, Class1
Consumption 3.0 W
Mechanical
Dimensions (W x H x D) 72 mm x 123 mm x 35 mm
Installation DIN-Rail or Wall mounting
Environment
Operating Temperature -25 °C ~ +75 °C (-13°F ~ +167°F)
Storage Temperature -30 °C ~ +80 °C (-22°F ~ 176°F)
Humidity 10 ~ 90% RH, non-condensing

Software Specifications

Functions
36 IF-THEN-ELSE Logic Rules 3 IF conditions with AND or OR operators
3 THEN actions
3 ELSE actions
48 Internal Registers Hold temporary variables and read/write data via Modbus/TCP address.
12 Timers Delay / Timing functions.
12 Emails Send Email messages to pre-set Email receivers.
12 CGI Commands Send pre-set CGI commands.
12 Receipts Set up Then/ELSE action groups.
Rule Configuration Website Access Web server on WISE controllers to edit and upload logic rules through web browser.
Modbus/TCP Protocol Real time control and monitoring I/O channels and system status of controllers via SCADA software.
IF Conditions
AI Channel ON、OFF、ON to OFF、OFF to ON、Change
Internal Register =、>、<、>=、<=(value)
Rule Status Enable、Disable
P2P DI、AI、DI counter、DO counter、IR
DO Counter =、>、<、>=、<=(value)、Change
Timer Timeout、Not Timeout
THEN / ELSE Actions
DO Channel ON、OFF、Pulse Output
Internal Register Change the value
DO Counter Reset
Timer Start、Stop
Email Start、Stop
CGI Commands
Recipe Execute
P2P DO(On/Off)、AO、IR
Rule Status Enable、Disable
