Wi-Fi I/O module with 16-channel isolated digital output. Can be used on iOS mobile devices with iOS App. Supports communication distance up to 50 meters (164 feet) (LOS). Supports operating temperatures of -25°C ~ +75°C (-13°F ~ 167°F). Support 802.11N

WF-2042

write a review write a review

Wi-Fi I/O module with 16-channel isolated digital output. Can be used on iOS mobile devices with iOS App. Supports communication distance up to 50 meters (164 feet) (LOS). Supports operating temperatures of -25°C ~ +75°C (-13°F ~ 167°F). Support 802.11N

Price: $459.00

Fastest Delivery:

Qty:

Compare

Compare: 0

ADD TO CART

BUY BY 1-CLICK

Email Product Details Write a Review Write a Review Email Us

References and Support Add to Quote

References & Support

Features

The WF-2042 is a 16-channel isolated digital output module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2042 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2042 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2042 also supports Modbus TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Support sink type digital output
Compatible with IEEE 802.11b/g standards
Support Infrastructure and Ad hoc modes
Support Modbus TCP and UDP protocols
Support DHCP network configuration
Support pair connection mode
Support DO power on value & safe value mechanism
Built-in Watchdog
Wide Operating Temperature Range
4kV ESD Protection

Multi-platform Remote Access

Real-time data from WF-2042 I/O module can be accessed from anywhere at any time using the WF-2000 Utility and iOS App.

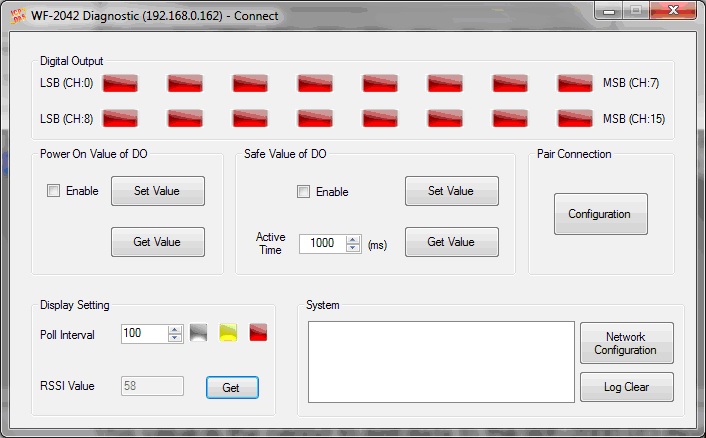

Utility

iOS App

WF2000 Utility is a fast and simple utility for testing and controlling ICP DAS WF-2000 industrial wireless products. It is now available on the Apple Store for free download for use with iOS devices.

Download the App in Apple Store

Download in iTunes
In App Store, search keyword: WF2000
Compatibility: Requires iOS 8.1 or later. Compatible with iPhone, iPad, and iPod touch.

Specifications

Digital Output
Channels	16, Sink (NPN)
Output Voltage	+3.5 ~ +50 V
Output Current	700mA per channel
Intra-module Isolation, Field to Logic	3750 VDC
Overvoltage Protection	60 VDC
Wi-Fi Interface
Antenna	5 dBi (Omni-Directional)
Output Power	8 dBm @ 11Mbps
Receive Sensitivity	-83 dBm @ 11Mbps
Standard Supported	IEEE 802.11b/g
Wireless Mode	Infrastructure & Ad-hoc
Wireless Security	WEP, WPA and WPA2
Certifications	CE/FCC, FCC ID
Encryption	WEP, WPA and WPA2
Transmission Range	50 meters (LOS)
Power
Input Voltage Range	10V ~ 30V
Power Consumption	1.5W
Mechanism
Installation	DIN-Rail
Dimensions	33mm x 106mm x 120mm (W x L x H)
Environment
Operating Temperature	-25°C ~ +75°C
Storage Temperature	-30°C ~ +80°C
Humidity	10% ~ 90%
