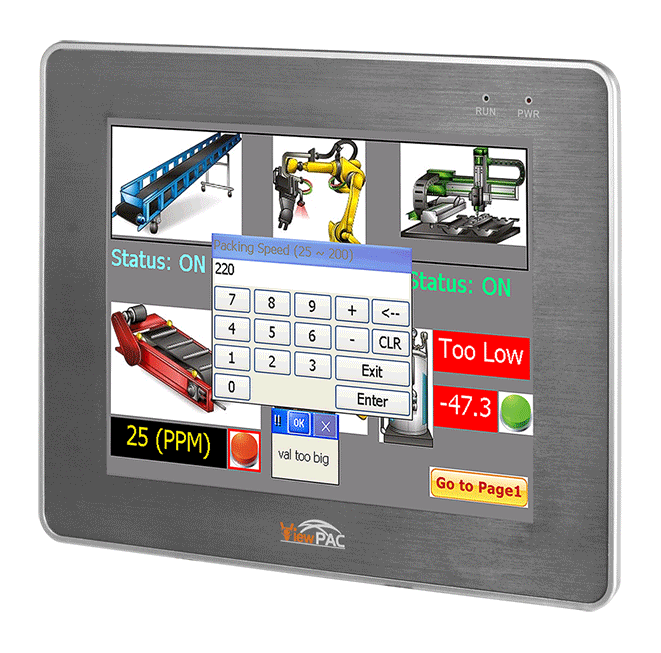

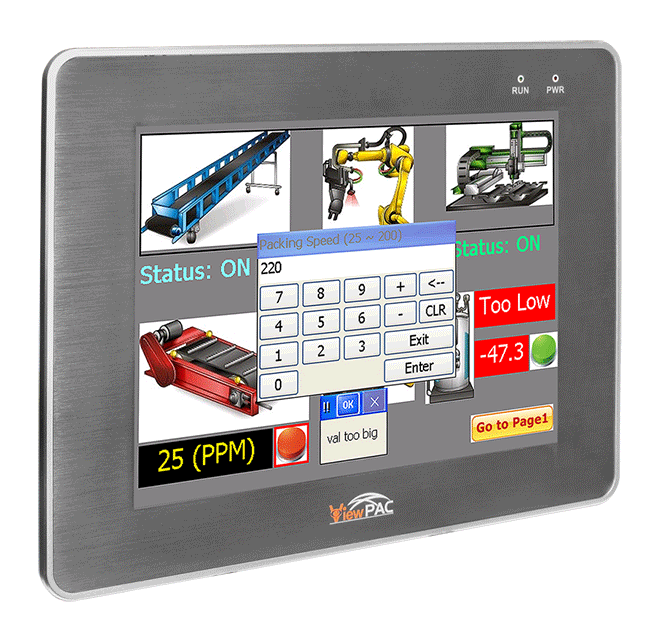

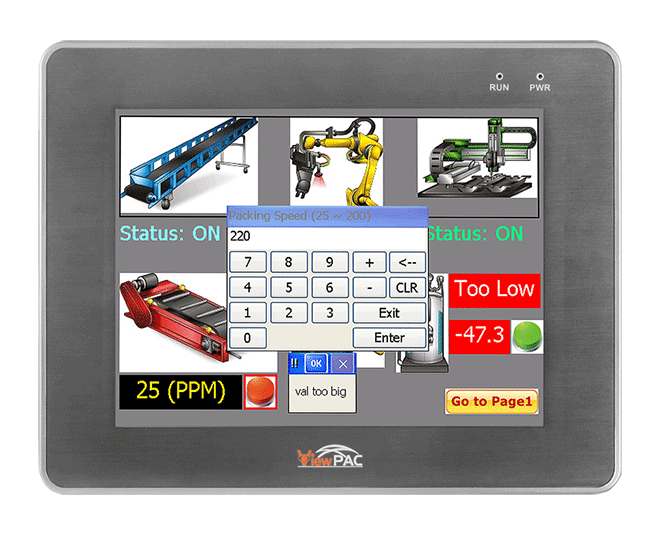

10.4'' Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots. Replacement for VP-4137.


10.4" Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots. Replacement for VP-4137.

  Price:  $2,999.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

References & Support


  • 10.4" TFT LCD
  • Cortex-A8 CPU (32-bit & 1 GHz)
  • Windows CE.NET 7.0 Inside
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • Hard Real-Time Capability

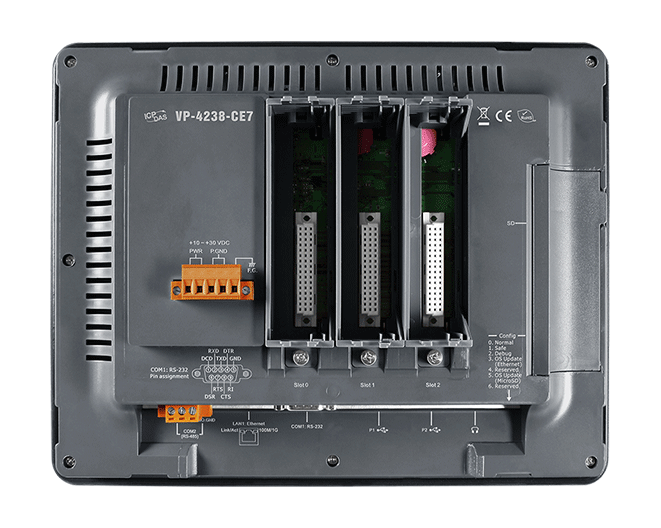

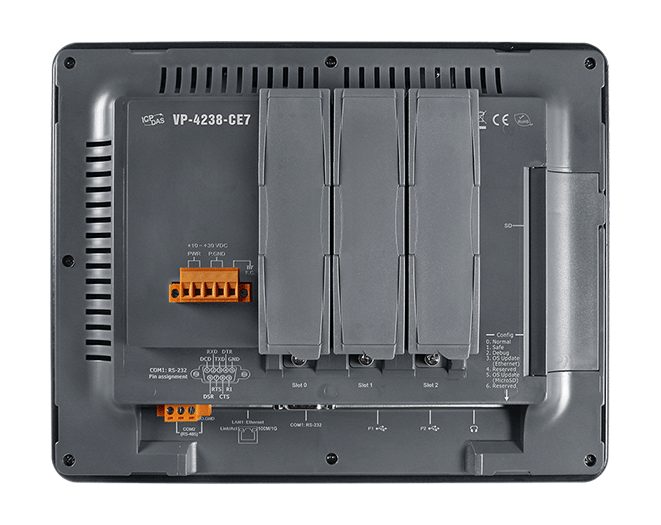

  • 3 Slots for High Profile I/O Modules
  • IP65 Compliant Front Panel
  • Modbus RTU/TCP (Master, Slave)
  • Support eLogger HMI
  • Audio with Microphone-In and Earphone-Out
  • Operating Temperature: -20°C ~ +70°C



The Win-GRAF ViewPAC with I/O slot Series (VP-1238-CE7, VP-4238-CE7, VP-6238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS.

Each PAC is equipped with a Cortex-A8 CPU (32-bit & 1 GHz) running a Windows CE 7.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 5.7”/10.4”/15” TFT LCD with a rubber keypad.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.


OS Windows CE.NET 7.0
  • NET ID
  • eLogger HMI
  • Modbus TCP/IP Master
  • Modbus TCP/IP Slave
  • Modbus RTU/ASCII Master
  • Modbus RTU Slave
  • DCON Protocol
  • User-defined Protocol
  • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
  • Local I/O Modules
  • Application Protection
  • Data Binding
  • On Line Change
  • Schedule Control
  • Retain Variables
  • File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8 (32-bit and 1 GHz)
64-bit Hardware Serial Number Yes
System Memory 512 MB SDRAM, 256 MB Flash
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Storage A SD/microSD adapter and 4 GB microSD card (up to 32 GB)
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Type LCD
Size 10.4" (4:3)
Backlight Life 50,000 hours
Brightness 400 cd/m2
Resolution 800 x 600
Touch Panel 5-wire, resistive type; light transmission: 80%
LED Indicators
Status 1 x System, 1 x Power
I/O Expansion
I/O Type I-8K, I-87K series
Slots 3
COM Ports
Ports 1 x RS-232, 1 x RS-485 (2500 VDC Isolated)
Rotary Switch 1 x 10 Position (0 ~ 9)
Buzzer Yes
Cable Earphone-Out
Ports 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Ports 2 x USB 2.0
Input Range +10 VDC ~ +30 VDC
Redundant Power Inputs Yes
Consumption 0.45 A @ 24 VDC
Casing Plastic
Dimensions (mm) 293 x 229 x 129 (W x L x H)
Panel Cut-Out (mm) 276 x 214, ±1 (W x H)
Installation Panel mounting
Weight 3.6 Kg
Ingress Protection Rating Front panel: NEMA 4/IP65
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing
