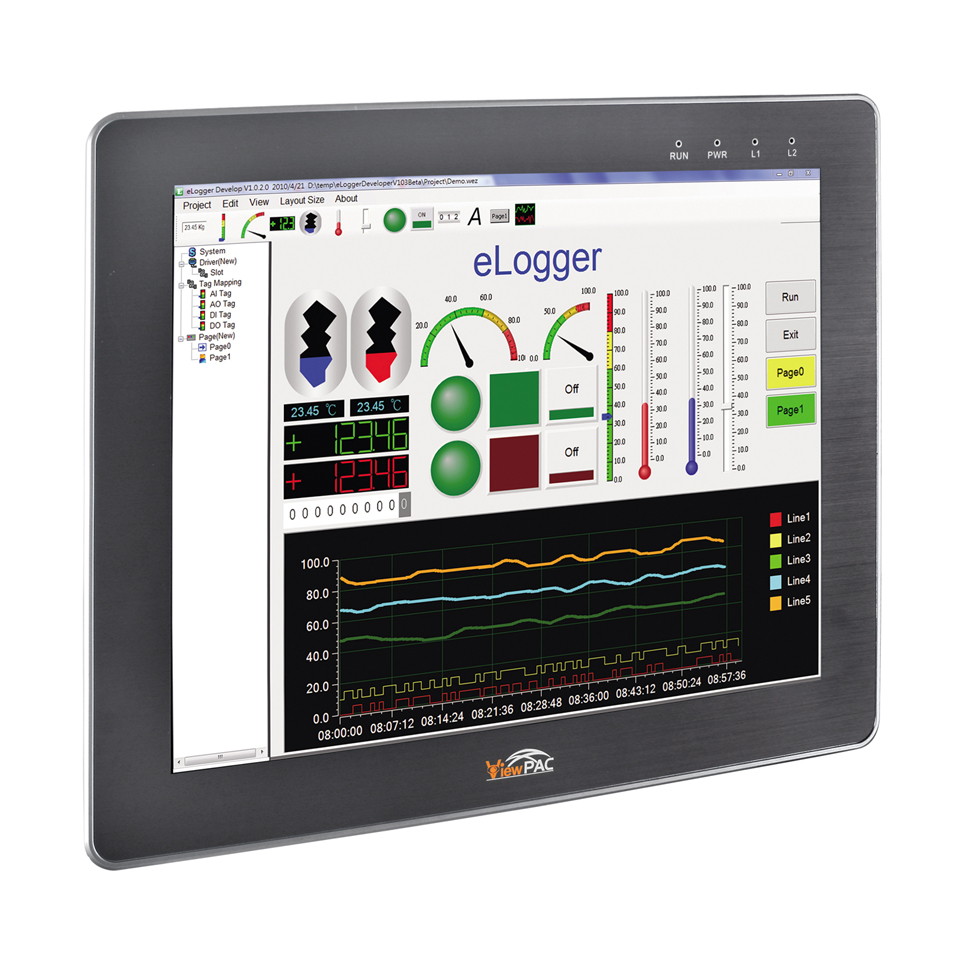

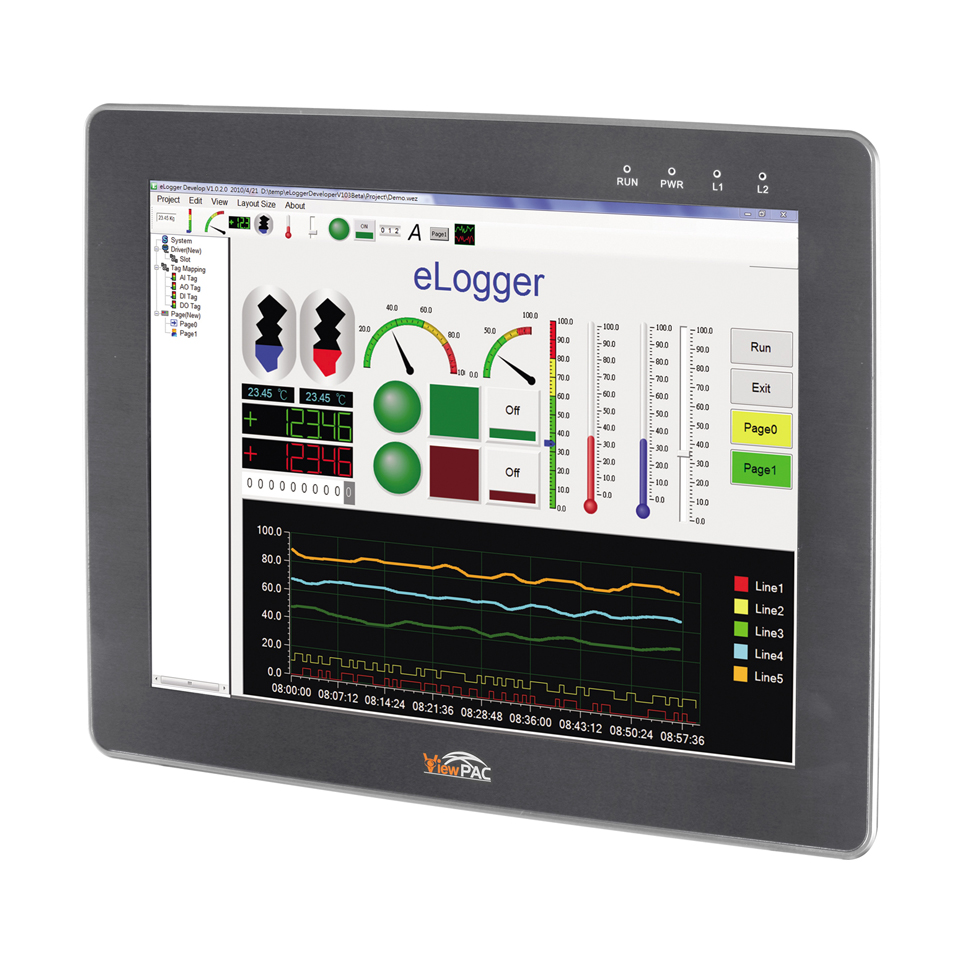

10.4'' ViewPAC Touch Panel Screen with AM3354 1 GHz CPU 512MB DRAM and Windows Embedded CE7 OS with microSD slot. Ethernet, RS-232, RS-485, audio earphone-out.  Has operating temperature range of -10°C ~ +60°C (+14°F ~ +140°F).

VP-4201-CE7

10.4" ViewPAC Touch Panel Screen with AM3354 1 GHz CPU 512MB DRAM and Windows Embedded CE7 OS with microSD slot. Ethernet, RS-232, RS-485, audio earphone-out. Has operating temperature range of -10°C ~ +60°C (+14°F ~ +140°F).

  Price:  $2,399.00

Features

The VP-4201-CE7 is a CE7 based ViewPAC. With the ability to connect with other computing devices through I/O, and operator interfaces, all designed into one unit, the VP-4201-CE7 becomes the ideal solution for integrating with HMI, data acquisition and control in an individual PAC. Equipped with an AM3354 CPU, a 10.4" TFT LCD, and numerous protocol interfaces including dual a Gigabit Ethernet, USB port, RS-232 and RS-485, I/O expansion and connnection to other Ethernet I/O modules and RS-485 I/O modules makees the VP-4201-CE7 more flexible. This is a front panel mount installation type of device and is NEMA 4/IP65 rated which means it can withstand sprayed water, humidity, and extreme dust. The fanless design means no moving parts. The device can withstand harsh temperatures ranges of -10°C ~ 60°C, which offers the ultimate in reliability and durability.

Windows Embedded Compact 7 is a widely used and has high reliability. It's components comprise of hard real-time, high performance that delivers rich user experiences, offering the ability to connection to Windows PCs, servers, services, and many other devices.

  • 10.4" TFT LCD
  • AM3354 1 Ghz CPU
  • CE7 (Windows Embedded Compact 7
  • Hard Real-Time Capability
  • Support eLogger HMI (free)
  • PoE (Power over Ethernet)
  • NEMA 4/IP65 Compliant Front Panel
  • Very Rugged Construction and Reliable Design
  • Operating temperatures: -10°C ~ +60°C (+14°F ~ +140°F)

Windows Embedded Compact 7

Win CE7 is a compact and hard real-time operating system (OS) that can be used to quickly create high perfomance demanding program applications. Visual Basic .NET, Virtual C#, SCADA Software, SoftPLC, etc, can be run on CE7.

  • FTP Server
  • Web Server
  • SQL Compact Edition 3.5
  • .NET Compact Framework 3.5
  • Virtual CE Pro (VCEP)
  • OPC Server (NAPOPC DA Server)
  • Soft PLC Solution ISaGRAF inside
  • SCADA solution InduSoft Inside

Specifications

System Software
OS
Microsoft Windows Embedded Compact 7
Framework Support
.NET Compact Framework 3.5
Embedded Service
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
SDK Provided
Dll for Visual Studio.Net
Multilanguage Support
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
CPU Mode
CPU AM3354 (1 GHz)
DRAM 512 MB
MRAM 128 KB.
Flash (SSD)
256 MB
EEPROM 16 KB
Memory Expansion SD socket with 4 GB SDHC card
(support up to 32 GB)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes, for software copy protection
Dual Watchdog Timers 0.8 second
Rotary Switch 0 ~ 9
LCD
Diagonal Size
10.4" (4:3)
Resolution 800 x 600
Brightness (cd/m2) 400
Contrast Ratio 500 : 1
LED Backlight Life (hrs) 50,000
Touch Panel 5-wire, resistive type; light transmission: 80 %
LED Indicator 2 (Run, PWR)
Communication Ports
Ethernet 1 x RJ-45 10/100/1000 Base-TX
USB 2.0 (host) 2
COM 1 RS-232 (TxD, RxD, CTS, RTS) /RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated
COM 2 RS-232 (TxD, RxD, CTS, RTS) /RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated
COM 3 RS-485 (Data+, Data-, GND); 2500 VDC isolated
Audio
Earphone-out
Mechanical
Dimensions (W x H x D) 291 mm x 229 mm x 54 mm
Installation
Panel Mounting, VESA (75 x 75) Mounting
Ingress Protection Front panel: NEMA 4/IP65
Weight
1.8 kg estimate
Environmental
Operating Temperature -10°C ~ +60°C (+14°F ~ +140°F)
Storage Temperature -20°C ~ +70°C (-4°F ~ +158°F)
Ambient Relative Humidity
10% ~ 90% RH (non-condensing)
Power
Input Range +12 VDC ~ +48 VDC
Power from PoE IEEE 802.3af
Isolation
1 kV
Consumption
13 W
