The μPAC-5000 series is a palm-size programmable automation controller. It has a 80186 CPU, SRAM , Flash, Ethernet port, RS-232 and RS-485 port. With a DOS-like OS (MiniOS7) and a developed fi rmware running inside, it can act like a small PC.

ICP DAS provides easy-to-use software development tool kits (Xserver, MiniOS7 framework, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

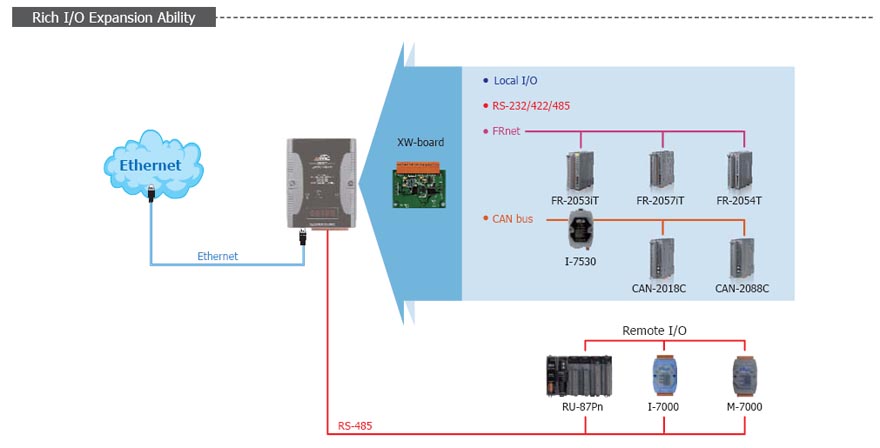

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for μPAC-5000 series, you can choose one of them to expand hardware features.


  • MiniOS7 Inside
  • C Language Programming
    • TCP/IP Library
    • Modbus Library
  • Various Storage Media
    • 512 KB Flash
    • 16 KB EEPROM
    • microSD
    • 1 MB NVRAM
    • 64 MB NAND Flash Disk
    • 512 KB Battery Backup SRAM
  • Various Communication Interfaces
    • 10/100 Base-TX Ethernet
    • RS-232/485
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus
  • Redundant Power Inputs
  • PoE (Power over Ethernet)
  • Operating Temperature: -25 ~ +75 °C


UPAC Applications



Models uPAC-5001P (D) uPAC-5001P-FD (D) uPAC-5002P (D) uPAC-5002P-FD (D)
System Software
OS MiniOS7 (DOS-like embedded operating system)
Program Download Interface RS-232 (COM1) or Ethernet
Programming Language C language
Compilers to create.exe Files TC++ 1.01 (Freeware)
TC 2.01 (Freeware)
BC++3.1 ~ 5.2x
MSC 6.0
MSVC++ (before version 1.5.2)
CPU Module
CPU 80186 or compatible (16-bit and 80 MHz)
SRAM 512 KB 768 KB
Flash 512 KB; Erase unit is one sector (64 K bytes); 100,000 erase/write cycles
microSD Expansion Yes, can support 1 or 2 GB microSD
64 MB NAND Flash Disk - Yes - Yes
512 KB Battery Backup SRAM -
NVRAM 31 Bytes (battery backup, data valid up to 5 year)
RTC (Real Time Clock) RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
64-bit Hardware Serial Number Yes
Watchdog Timers Yes (0.8 second)
Communication Ports
Ethernet RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
COM 1 RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max.
COM 2 RS-485 (D2+, D2-), self-tuner ASIC inside, non-isolated, Speed: 115200 bps max.
LED Indicator
Programmable LED Indicators 2
Hardware Expansion
I/O Expansion Bus Yes
Dimensions (W x H x D) 91 mm x 123 mm x 52 mm
Installation DIN-Rail
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Ambient Relative Humidity 10 ~ 90% RH (non-condensing)
Protection Power reverse polarity protection
Frame Ground Yes (for ESD Protection)
Input Range +12 ~ +48 VDC
Isloation -
Redundant Power Inputs Yes
Power over
Ethernet (PoE)
Regular version -
PoE version IEEE 802.3af Class 1
Power Consumption 2 W; 2.5 W for (D) version
