UP0061D-12PA58G

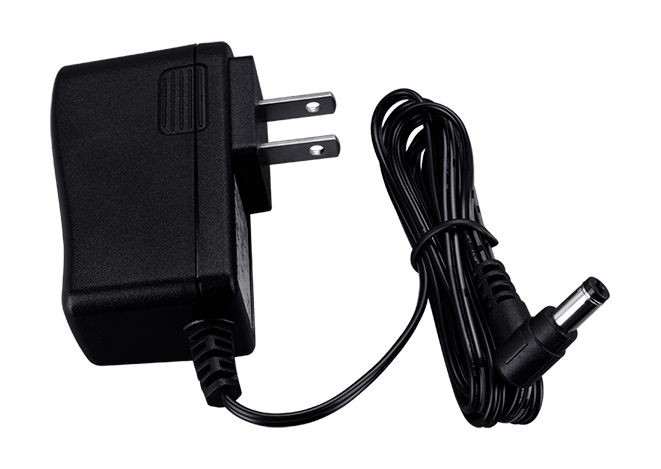

Wall mount power supply; Input range 90-240VAC; Output 12VDC/0.5A, 6 W; two pins USA plug. Power Supply for tDS-700 Serial to Ethernet Device Servers, tGW-700 Modbus TCP to RTU/ASCII Device Servers and GW-7472 EtherNet/IP to Modbus RTU/Modbus TCP Gateway.
No documentation or manuals for this item.
Features
- Input 90 to 264 VAC
- 90 Degree DC power plug (5.5*2.1*10.5mm)
Specifications
| Safety | |
| Standard | "Meet DoE Level VI & Erp Tier1(2017) Meet CoC V5 Tier2 Meet Department of Energy 10 CFR Part 430 Meet ERP Directive 2009/125/EC" |
| EMC | |
| Standard | EMI Meets FCC/CISPR 22 Class B |
| Input | |
| Voltage Range | 90-264 VDC |
| Frequency Range | 47 ~ 63Hz |
| Output | |
| Ripple & Noise (Max.) | 200mVp-p max. |
| Hold Up Time (Typ.) | 6mS typ. |
| DC Voltage | 12 VDC |
| Rated Power | 6 W |
| Rated Current | 0.5 A |
| Efficiency | 78% typ. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | (29 * 46.0 * 74) mm |
| Environmental | |
| Operating Temperature | 0 ~ +50°C |
| Storage Temperature | -40 ~ +85°C |
| Humidity | 0 ~ 95% RH, Non-condensing |
References and Support
No documentation or manuals for this item.
