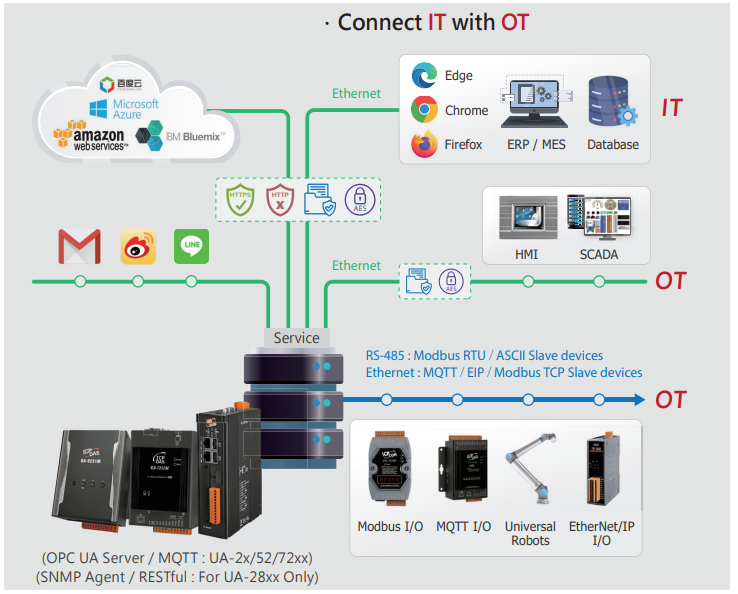

<p>IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services. Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database (MS SQL / MySQL / MariaDB), and save to the local fi le (.csv) as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive fi rst-hand notifi cation messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.</p>

UA-2841M

write a review write a review

IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services. Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database (MS SQL / MySQL / MariaDB), and save to the local fi le (.csv) as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive fi rst-hand notifi cation messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.

Price: $3,199.00

Fastest Delivery:

Qty:

Compare

Compare: 0

ADD TO CART

BUY BY 1-CLICK

Send Email with Product Info

Write a Review Write a Review Email Us

References and Support Add to Quote

References & Support

Features

IIoT Communication Server with ARM Quad-core CPU and 2 Ethernet Ports

Simultaneous Writing for Remote Database and Local Data Logger
Offline Data Recovery Mechanism for Remote Database
Support to Enable OPC UA, MQTT, SNMP and RESTful at the Same Time
MQTT Broker (Including WebSocket)
Support a Complete Information Protection Mechanism
HTTPS, SNMP v3, Communication Encryption, Block List
IoT Cloud Platform Connection
Microsoft Azure, Amazon Web Services, IBM Bluemix, Alibaba Cloud
IFTTT Logic Control Triggers the APP Notification Function
PID Logic Operation Function

Specifications

IIoT Communication Server with ARM Quad-core CPU and 2 Ethernet Ports. Used for integrating IT systems with IoT devices. Supports Modbus TCP, Modbus RTU, Modbus ASCII, MQTT and Ethernet/IP protocols. Can convert I/O data to OPC UA or MQTT protocols for connecting to SCADA and cloud services.
