Wireless 4-channel Isolated Digital Input and 4-channel Isolated Digital Output Module

tZT-P4C4

Wireless 4-channel Isolated Digital Input and 4-channel Isolated Digital Output Module

  Price:  $199.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

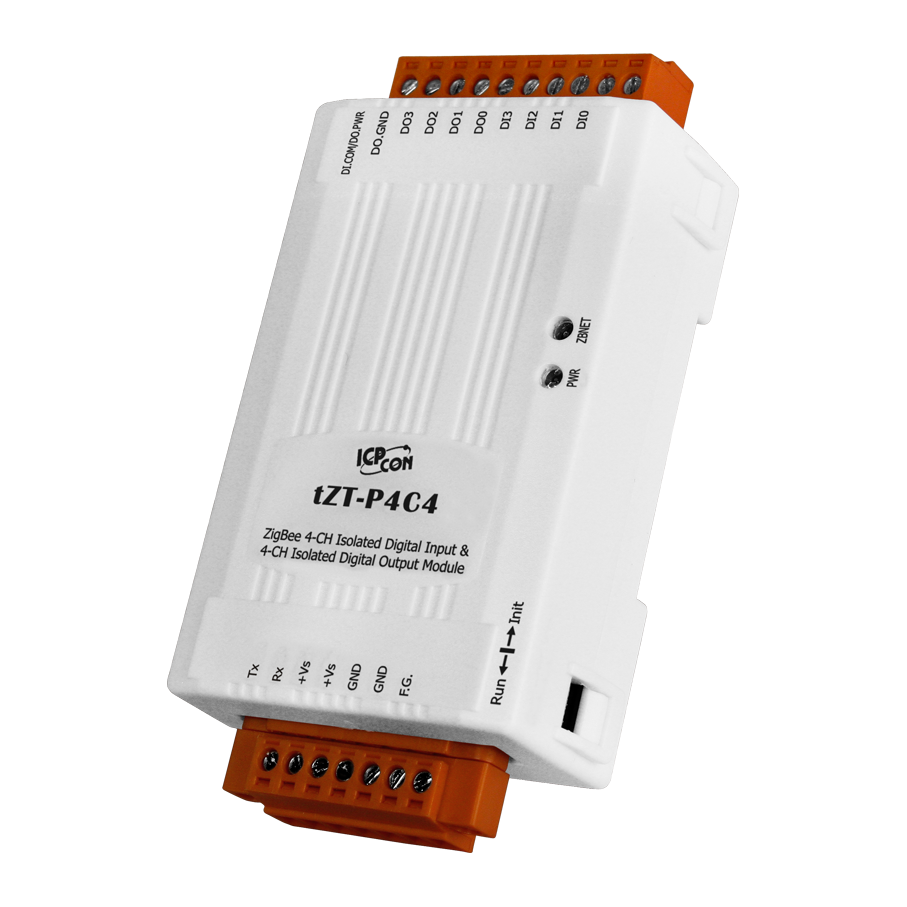

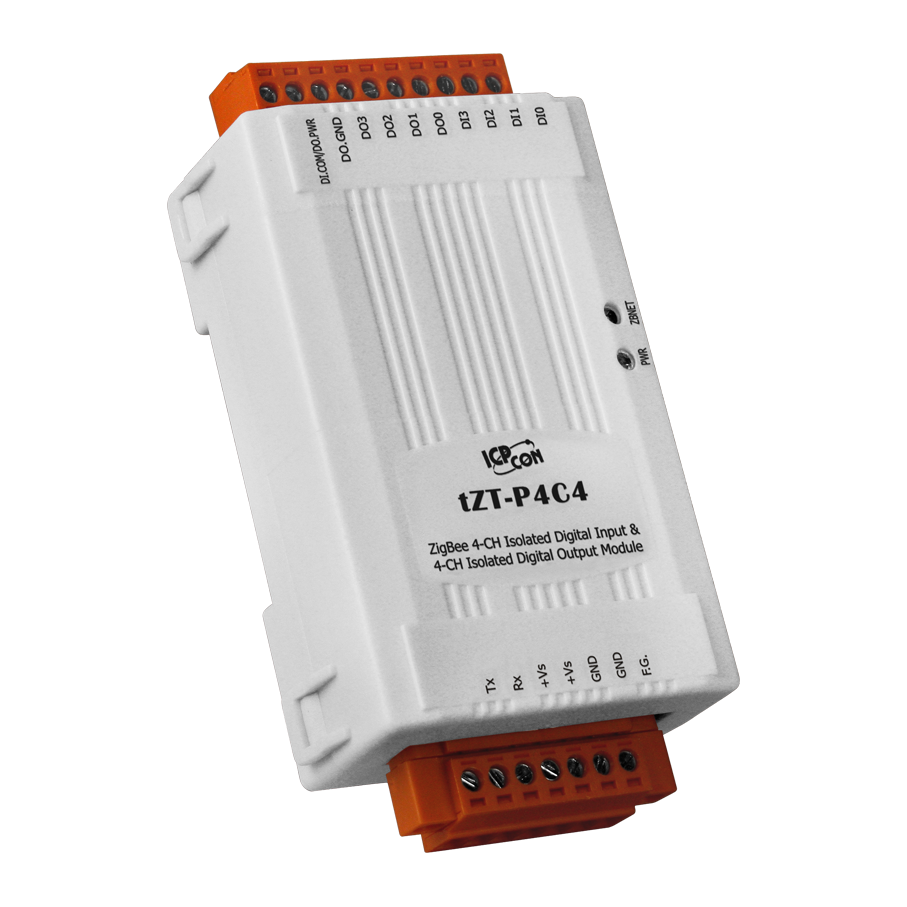

The tZT-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tZT-P4C4 supports sink-type output with short circuit protection, while input is source-type. All input channels can be used a 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The tZT series products of ICP DAS USA have the advantage of low cost and low power consumption of ZigBee. Provide wireless communication capability up to 300 meters (LOS) standard transmission distance. Coupled with the dynamic mesh network, users can easily catch DIO data in difficult-to-wire environments.

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee 2007 Pro Specifications
  • Wireless Transmission Range up to 300 m
  • Adjustable RF Transmission Output Power
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 4 Digital Input Channels and 4 Digital Output Channels
  • All Digital Input Channels can be used as 16-bit Counters
  • Sink-type Digital Output Channels with Overload Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mountable

Specifications

Communication Interface

Wireless Standards

ZigBee 2007 Pro

Transmission Power

11dBm (Max. 19dBm)

2.4 GHz Antenna

2.4 GHz - PCB Antenna (3dBi, 50Ω)

Transmission Range (LoS)

300 m

Protocols

Supports DCON and ModBus

Watchdog

Module(1.6seconds),Communication(Programmable)

LED Indicators

ZigBee Communication

1 LED, Green

Power

1 LED, Red

EMS Protection

ESD (IEC 61000-4-2)

±4 kV Contact for each Terminal

EFT (IEC 61000-4-4)

±1 kV for Power

Power

Input Voltage Range

+10 VDC ~ +30 VDC

Power Consumption

1 W Max.

Mechanical

Dimensions (L x W x H)

52 mm x 98 mm x 27 mm

Installation

DIN-Rail Mounting

Environment

Operating Temperature

-25 ~ +75°C

Storage Temperature

-30 ~ +80°C

Relative Humidity

10 ~ 95% RH (Non-condensing)

I/O Specifications

Digital Input/Counter

Input Channels

4

Type

Wet Contact (Source)

On Voltage Level

+6 VDC ~ +50 VDC

Off Voltage Level

Max. +5 VDC

Counter Channels

4

Max. Count 65535 (16-bit)

Max. Input Frequency 100 Hz

Min. Pulse Width 5 ms

Input Impedance

10 KΩ, 0.66W

Overvoltage Protection

± 70 VDC

Digital Output

Output channels

4

Type

Isolated Open Collector (Sink)

Load Voltage

+3.5 ~ +50 VDC

Max. Load Current

700mA/channel

Overvoltage Protection

Yes

Overload Protection

Yes

Power On Value

Yes, Programmable

Safe Value

Yes, Programmable
