TP-3080 - 8.4'' touch panel monitor with RS-232 and USB

8.4" resistive touch panel monitor with RS-232 and USB interface. Works with ICP DAS WP-8000 Windows CE based PAC's, LP-8000 Linux based PAC's, and XP-8000 Windows XP embedded controllers. IP65 front panel for protection against dust and water. Supports operating temperature of -20 ~ 70°C (-4F ~ 158F).

  Price:  $1,099.00

WP-8000 Windows CE based PAC's, LP-8000 Linux based PAC's, and XP-8000 Windows XP embedded controllers. IP65 front panel for protection against dust and water. Supports operating temperature of -20 ~ 70°C (-4F ~ 158F)." />

Features

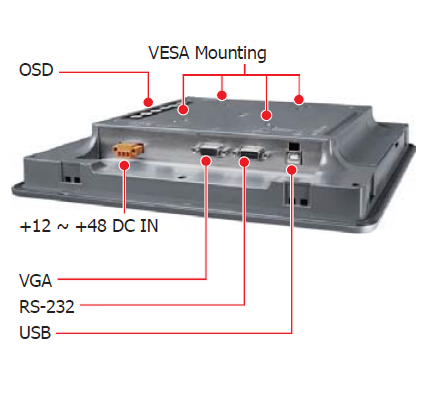

TP-3080 I/O interface

The TP-3080 is a 8.4'' touch panel monitor with 800 x 600 resolution LCD screen. It has full-function OSD control and its driver supports Windows 2000 / XP / Vista / 7 / WES / Windows CE 5.0 / 6.0 / Linux operating systems. The TP-3080 panel mount monitor is equipped with a 8.4-inch TFT LCD screen with a rugged aluminum front bezel. It supports 800 x 600 resolution, and a wide operating temperature range of -20 ~ 70°C (-4F ~ 158F). The TP-3080 touch panel monitor can work with ICP DAS Programmable Automation Controllers (PAC) such as the WP-8000 series Windows CE based PAC's, LP-8000 series Linux based PAC's, and XP-8000 Windows XP embedded controllers.

  • 8.4-inch TFT LCD screen with 800 x 600 resolution
  • Resistive Touch Panel
  • Full-function OSD control
  • Driver Support: Windows 2000 / XP / Vista / 7 / WES / WinCE 5.0 / 6.0 / Linux
  • LED backlight technology
  • IP65 Front Panel
  • Wide operating temperature: -20 ~ +70°C (-4F ~ 158F)

Specifications

Models TP-3080
Display
Display 8.4
Resolution 800 x 600
Max. Color 16.7 M
Brightness (cd/m2) 400 cd/m2
Contrast Ratio 500 : 1
Viewing Angle (H/V) 140/130
Backlight Life (hrs) 50,000
Touch screen 5-wire
analog resistive light; Transmission: 80%
Touchscreen function RS-232 & USB interface
Input Signal VGA (Analog RGB)
MMI (Man Machine Interface)
OSD Control Functions: Brightness, Contrast, Phase, Horizontal Position, Vertical Position and Sharpness
LED Indicators Power, Display signal is detected
Power
Input Range +12 ~ 48 VDC
Power Consumption 7 W
Mechanical
Casing Plastic
Dimensions (W x L x H) 249 mm x 207 mm x 65 mm
Installation Panel Mounting, VESA (75mm x 75mm; 100mm x 100mm) Mounting
Ingress Protection Front panel: IP65
Environment
Operating Temperature -20 °C ~ +70 °C (-4F ~ 158F)
Storage Temperature -30 °C ~ +80 °C (-22F ~ 176F)
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
