4-channel Multifunction Analog Input, 2-channel Digital Input (can be used as 16-bit counter) and 2-channel Digital Output, 2 Voltage Input and 2 Current input channel Module. 4kV ESD and EFT Protection.  Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F).

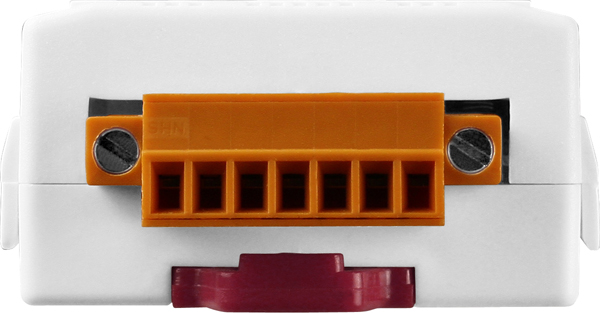

tM-AD4P2C2

4-channel Multifunction Analog Input, 2-channel Digital Input (can be used as 16-bit counter) and 2-channel Digital Output, 2 Voltage Input and 2 Current input channel Module. 4kV ESD and EFT Protection. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F).

  Price:  $209.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The tM-AD4P2C2 is a multifunction module that includes 4 analog input channels, 2 digital input channels and 2 digital output channels. The module provides a programmable analog input range that includes 2 voltage input channels (+/-1 V, +/-2.5 V, +/-5 V, and +/-10 V) and 2 current input channels (+/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). The analog inputs provide a high overvoltage protection of 120 VDC and an adjustable sampling rate. The module supports sink-type digital output with short circuit protection and the digital outputs can be used as voltage input limit alarms. The digital inputs are source-type and all digital input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 2500 VDC intra-module isolation are also provided. The tM-AD4P2C2 supports the DCON, Modbus RTU and Modbus ASCII protocols, which can be configured via software.

  • Multifunction (4 AI, 2 DI and 2 DO)
  • 2 Voltage Input Channels and 2 Current Input Channels
  • Digital Input Channels can be used as 16-bit Counters
  • Digital Output Channels can be used as Voltage Input Limit Alarms
  • 4 kV ESD and EFT Protection
  • 120 VDC Overvoltage Protection
  • Adjustable Sampling Rate
  • Dual Watchdog
  • 2500 VDC Intra-module Isolation
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settings
  • Wide Operating Temperature Range: -25°C ~ +75°C (-13°F ~ 167°F)

Specifications

Communication
Interface RS-485
Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Baud Rate 1200 ~ 115200 bps
Protocol DCON, Modbus/RTU, Modbus/ASCII
Dual Watchdog Yes, Module (2.3 seconds), Communication (Programmable)
LED Indicators
Power 1 LED as Power Indicator
Isolation
Intra-module Isolation, Field-to-Logic 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) +/-4 kV Contact for Each Terminal
+/-8 kV Air for Random Point
EFT (IEC 61000-4-4) +/-4 kV for Power
Power Requirements
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 10 ~ 30 VDC
Consumption 1 W Max.
Mechanical
Dimensions (W x L x H) 52 mm x 98 mm x 27 mm
Installation DIN-Rail Mounting
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -30°C ~ +75°C (-22°F ~ +167°F)
Humidity 10 ~ 95% RH, Non-condensing

I/O Specification

Analog Input Voltage Current
Input Channels 2 Single-ended 2 Single-ended
Type +/-1 V, +/-2.5 V, +/-5 V, +/-10 V +/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Resolution Normal Mode 14-bit
Fast Mode 12-bit
Sampling Rate Normal Mode 10 Hz total
Fast Mode 200 Hz total
Accuracy Normal Mode +/-0.1%
Fast Mode +/-0.5%
Zero Drift +/- 20 μV/°C
Span Drift +/- 25 ppm/°C
Input Impedance 10 Ω 136 Ω
Overvoltage Protection 120 VDC -
Overcurrent Protection - Yes, 50 mA @ 110 VDC
