Intelligent tiny RS-232/CAN converter. 9-pin female D-Sub. 1W power consumption, DIN-Rail mountable. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +176°F)

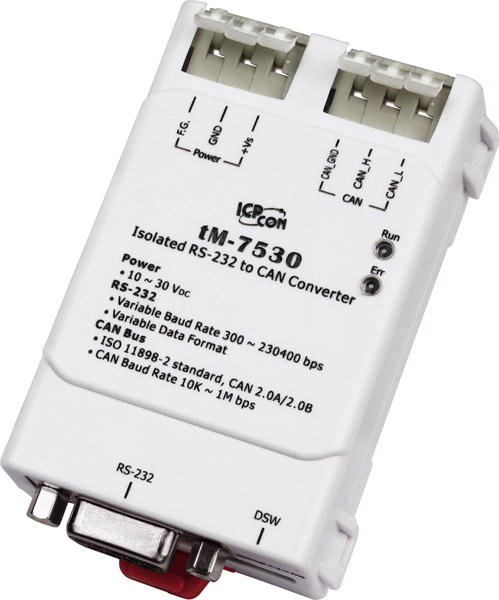

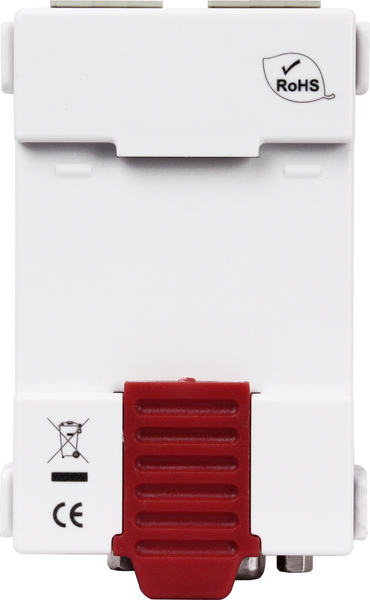

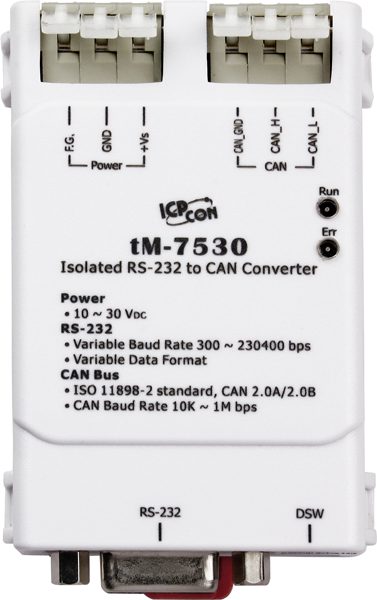

tM-7530

Intelligent tiny RS-232/CAN converter. 9-pin female D-Sub. 1W power consumption, DIN-Rail mountable. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +176°F)

  Price:  $249.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with ISO 11898-2 standard
  • Support various CAN baud rate from 10K bps to 1M bps
  • Support user-defined CAN baud rate
  • Support various RS-232 baud rate from 110 bps to 230400 bps
  • External option 120 Ω terminator resistor
  • Software configurable CAN and RS-232 communication parameters
  • Power, data flow and error indicator for CAN and RS-232
  • Watchdog inside
  • Support pair connection mode
  • Software buffer on CAN bus side and RS-232 side
  • Support user-defined end of characters on pair connection mode
  • Support listen only mode
  • Support time stamp response on RS-232 side

ICP DAS has provided a lot of UART/CAN product solutions which are widely recommended in the market. These UART/CAN converters can help users to implement the communication between RS-232 and CAN network. In order to cater for costing requirement, we provide a new solution of RS-232/CAN converter-tM-7530. The tM-7530 is a tiny RS-232/CAN to fit narrower environment as a result of its small size. It has isolation on power side and on CAN bus side and its performance is faster than other RS-232/CAN module. The function of tM-7530 can full compatibly with I-7530 and I-7530T. Besides, it provides new function such as listen only. User can use this function to listen CAN bus messages and error detection. According to above features, tM-7530 is an economical and practical RS-232/CAN converter solution.

Moreover, we expand the functionalities of tM-7530 for some special application. In pair connection mode, tM-7530 can be used to connect PC with other RS-232 devices at the same time. The application architecture may be as follows.

Specifications

CAN Interface
Transceiver NXPTJA1042
Chanel Number 1
Connector Spring type connector
Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor External option terminator resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
RS-232 Inteface
Connector 9-pin female D-Sub (TxD, RxD, GND, N/A for others)
Baud Rate (bps) 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
Data Bit 5, 6, 7, 8
Stop Bit 1, 2
Parity Bit None, Even, Odd
LED
Round LED ON LED: Power and Data Flow; ERR LED: Error Status
Power
Protection Power reverse polarity protection, Over-voltage brown-out protectio
Power Consumption 1W
Mechanism
Installatin DIN-Rail
Dimensions 52mm x 86mm x 32mm (W x L x H)
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +176°F)
Storage Temperature -30°C ~ +80°C (-22°F ~ +176°F)
Humidity 10 ~ 90% RH, non-condensing
