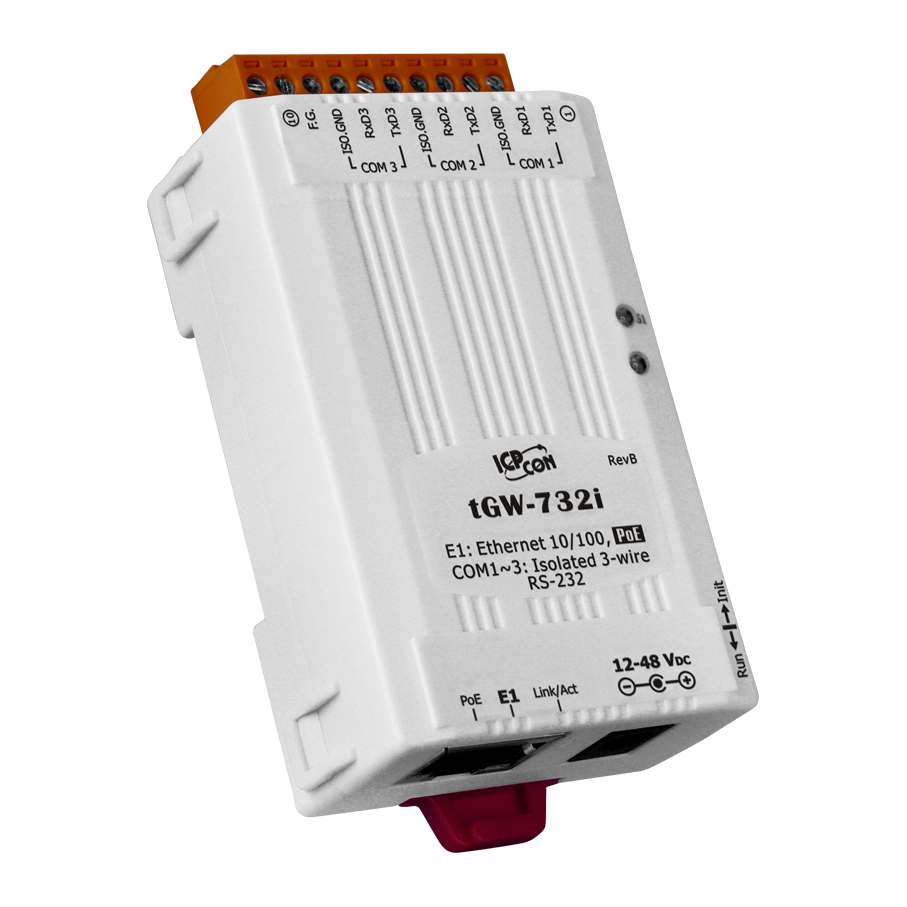

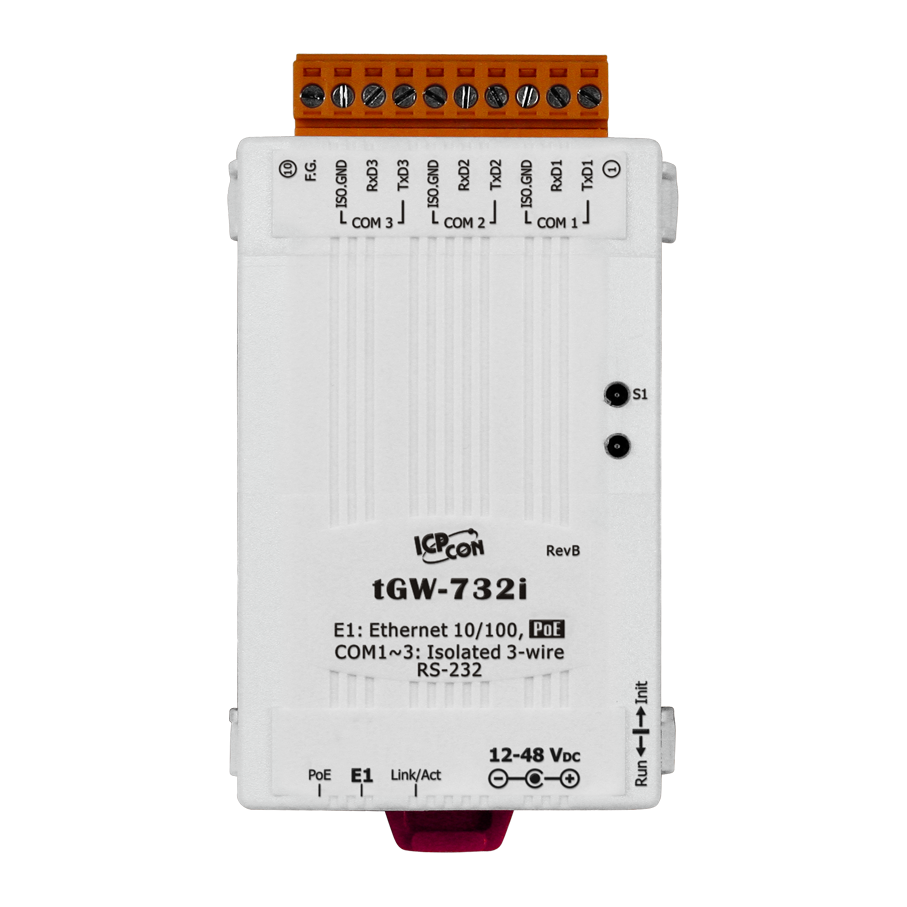

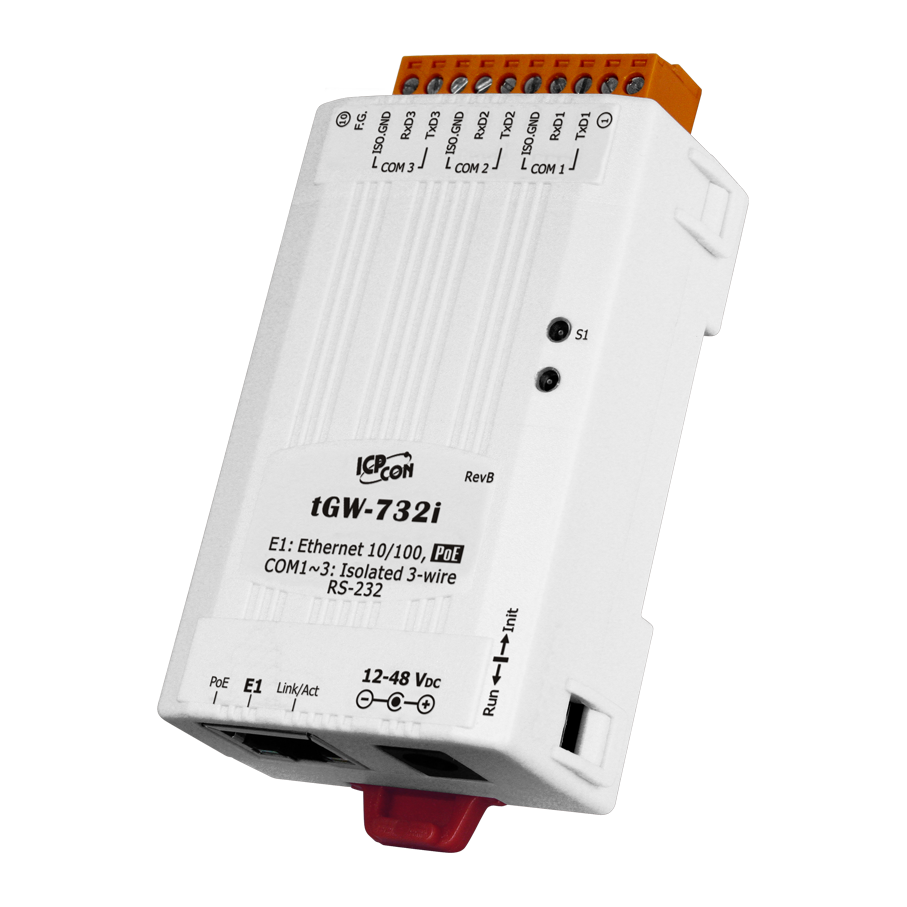

Tiny Modbus TCP to RTU/ASCII Gateway with PoE, and 3 RS-232 Ports <b>with Power Isolation</b> (RoHS)

tGW-732i

Tiny Modbus TCP to RTU/ASCII Gateway with PoE, and 3 RS-232 Ports with Power Isolation (RoHS)

  Price:  $229.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

ICP DAS USA’s tGW-732i module is a Modbus TCP to RTU/ASCII gateway that enables a Modbus/TCP host to communicate with serial Modbus RTU/ASCII devices through an Ethernet network, and eliminates the cable length limitation of legacy serial communication devices. The module can be used to create a pair-connection application (as well as serial-bridge or serial-tunnel application), and can then route data over TCP/IP between two serial Modbus RTU/ASCII devices, which is useful when connecting mainframe computers, servers or other serial devices that use Modbus RTU/ASCII protocols and themselves do not have Ethernet capability. The tGW-732i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current.

Specifications

System

CPU

32-bit ARM

Communication Interface

Ethernet

10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1)

COM1 (TCP Port: 502)

3-wire RS-232

COM2 (TCP Port: 503)

3-wire RS-232

COM3 (TCP Port: 504)

3-wire RS-232

Self-Tuner

-

UART

16c550 or compatible

COM Port Format

Baud Rate

115200 bps Max.

Data Bit

5, 6, 7, 8

Parity

None, Odd, Even, Mark, Space

Stop Bit

1, 2

Power

Power Input

PoE

PoE: IEEE 802.3af, Class 1

DC Jack

+12 ~ 48 VDC

Power Consumption

0.07 A @ 24 VDC

Mechanism

Connector

10-Pin Removable Terminal Block x 1

Mounting

DIN-Rail

Flammability

Fire Retardant Materials (UL94-V0 Level)

Environment

Operating Temperature

-25°C ~ +75°C (-13°F ~+ 167°F)

Storage Temperature

-30°C ~ +80°C (-13°F ~+ 167°F)

Humidity

10 ~ 90% RH, non-condensing

Selection Guide

Model RS-232 RS-422/485 RS-485 CPU Ethernet Baud Rate COM1
TCP Port: 502
COM2
TCP Port: 503
COM3
TCP Port: 504
tGW-712 1 - - 32-bit ARM 10/100 Base-TX, PoE 115200 bps 5-wire RS-232 - -
tGW-722 2 - - 5-wire RS-232 5-wire RS-232 -
tGW-732 2 - - 3-wire RS-232 3-wire RS-232 3-wire RS-232
tGW-715 - 1 - 2-wire RS-485
4-wire RS-422
- -
tGW-725 - - 2 2-wire RS-485 2-wire RS-485 -
tGW-735 - - 3 2-wire RS-485 2-wire RS-485 2-wire RS-485
tGW-718 1 - 3-wire RS-232 - -
2-wire RS-485
4-wire RS-422
tGW-724 1 - 1 2-wire RS-485 5-wire RS-232 -
tGW-734 2 - 1 2-wire RS-485 3-wire RS-232 3-wire RS-232
