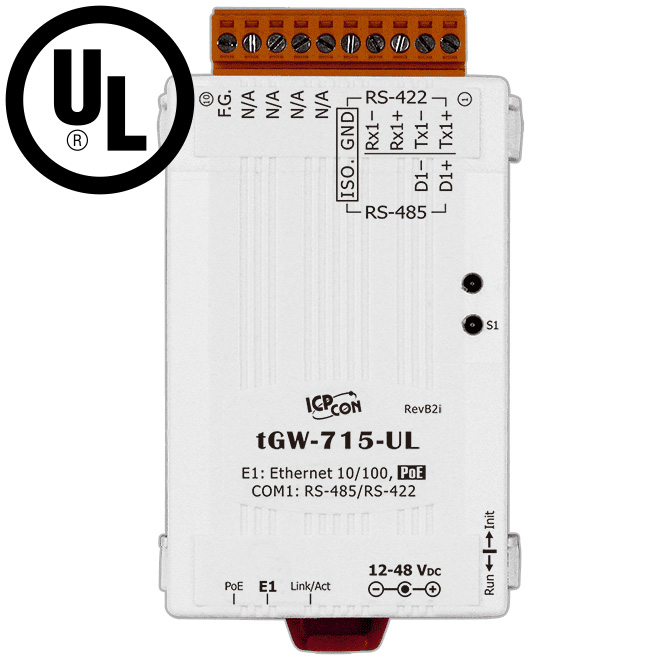

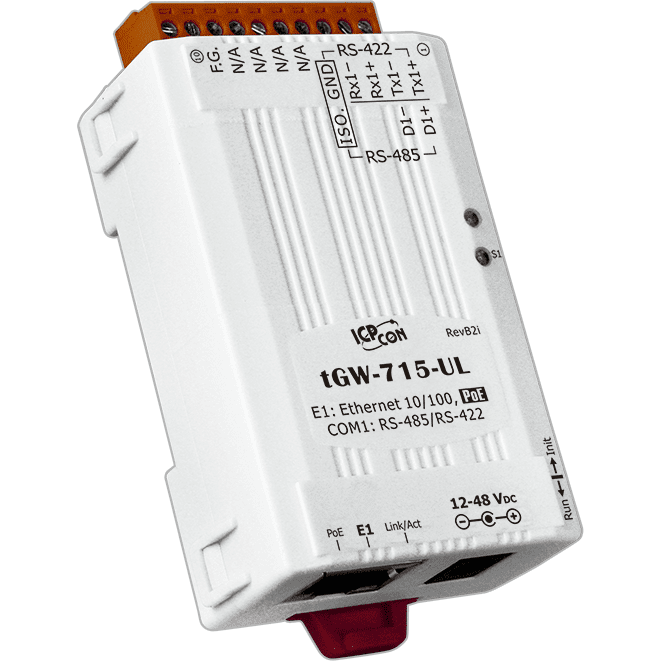

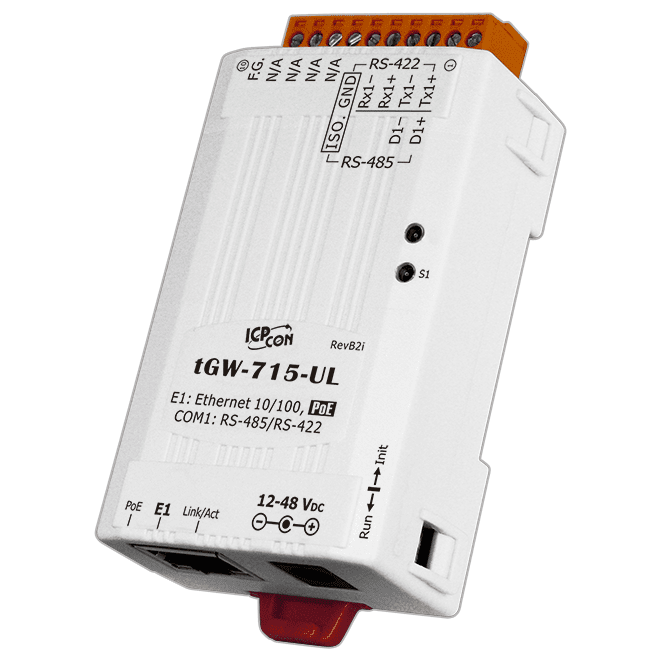

tGW-715-UL

Modbus has become a standard industrial communication protocol, and is now the most commonly available means of connecting industrial electronic devices. Modbus allows for communication between many devices connected to the same RS-485 network, for example, a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.

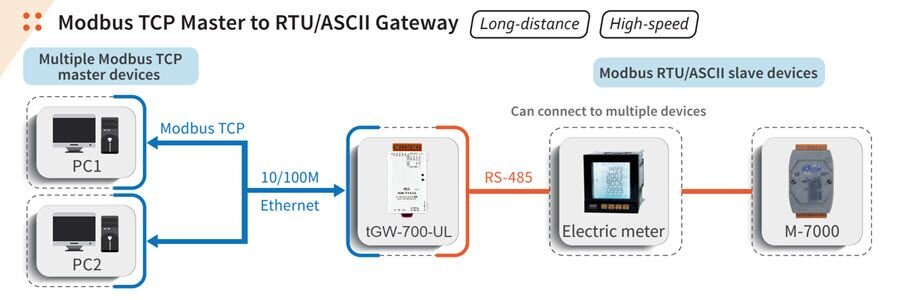

The tGW-700-UL is a Modbus TCP to RTU/ASCII gateway that enables a Modbus TCP host to communicate with serial Modbus RTU/ASCII devices through an Ethernet network, and eliminates the cable length limitation of legacy serial communication devices. The module can be used to create a pair-connection application (as well as serial-bridge or serial-tunnel application), and can then route data over TCP/IP between two serial Modbus RTU/ASCII devices, which is useful when connecting mainframe computers, servers or other serial devices that use Modbus RTU/ASCII protocols and do not themselves have Ethernet capability.

The read-cache function is used to store previous requests and responses in the memory buffer of the tGW-700-UL module. When other HMI/SCADA client controllers send the same requests to the same RTU server device, the cached response is returned immediately. This feature dramatically reduces the loading on the RS-485 bus communication, ensures faster TCP responses, and improves the stability of the entire system.

The tGW-700-UL module offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) functionality using a standard category 5 Ethernet cable to receive power from a PoE switch such as the NS-205PSE. If there is no PoE switch on site, the module will also accept power input from a DC adapter. The tGW-700-UL module is designed for ultra-low power consumption, reducing hidden costs from increasing fuel and electricity prices, especially when you have a large number of modules installed. Reducing the amount of electricity consumed by choosing energy-efficient equipment can have a positive impact on maintaining a green environment.

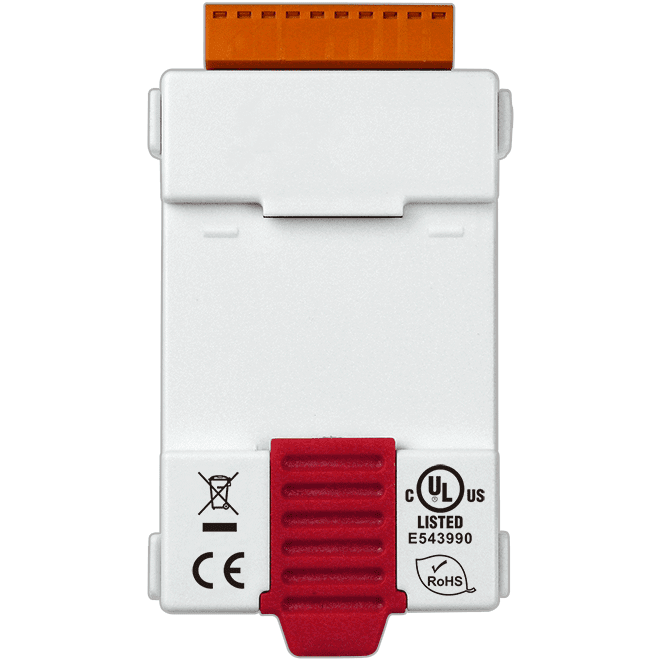

The tGW-700-UL series modules have obtained UL certification, meeting strict safety standards including fire resistance, electric shock protection, and durability requirements. This ensures stability and safety across various usage environments, providing consumers with reliable quality assurance. The UTA version uses conformal coating technology that offers excellent resistance to moisture and salt spray, making it particularly suitable for coastal and high-humidity environments.

Features

• Enable any RS-485/RS-422 serial devices with Ethernet capabilities
• VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
• Supports pair-connection (serial-bridge, serial-tunnel) application
• Powerful 32-bit MCU handles efficient network trafficking

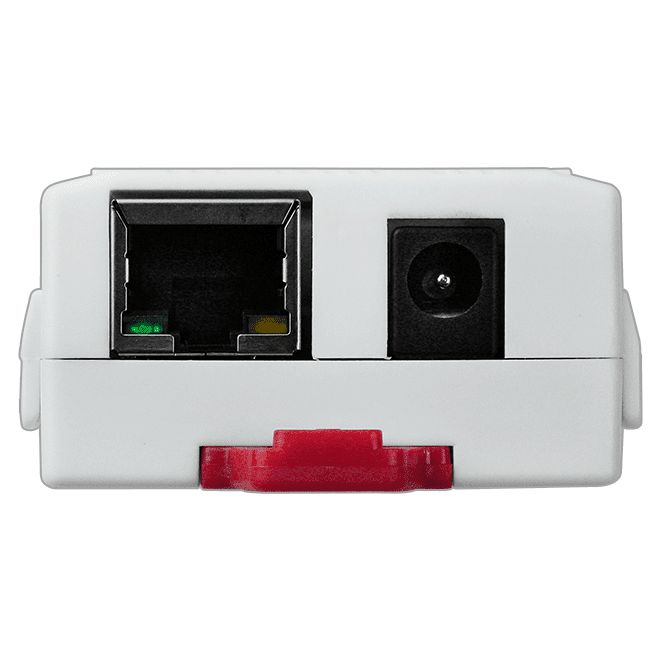

• 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
• Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
• Automatically RS-485 direction control
• Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
• Supports UDP responder for device discovery
• Easy firmware update via Ethernet
• Built-in a tiny Web server for configuration

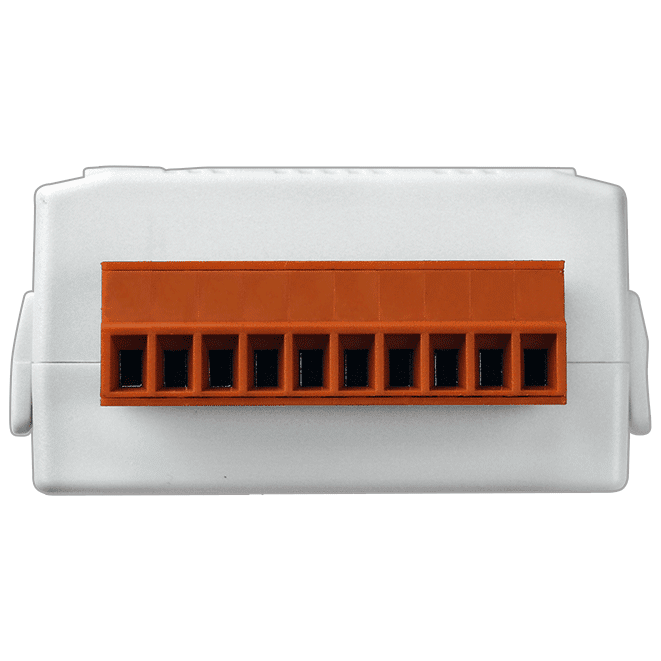

• Male DB-9 or Terminal block connector for easy wiring
• Tiny form-factor and low power consumption
• RoHS compliant with no Halogen
• Made from fire retardant materials (UL94-V0 Level)
• Cost-effective device servers

Applications

• Factory, Building and Home Automation
• Remote Diagnostics and Management
