SG-3227

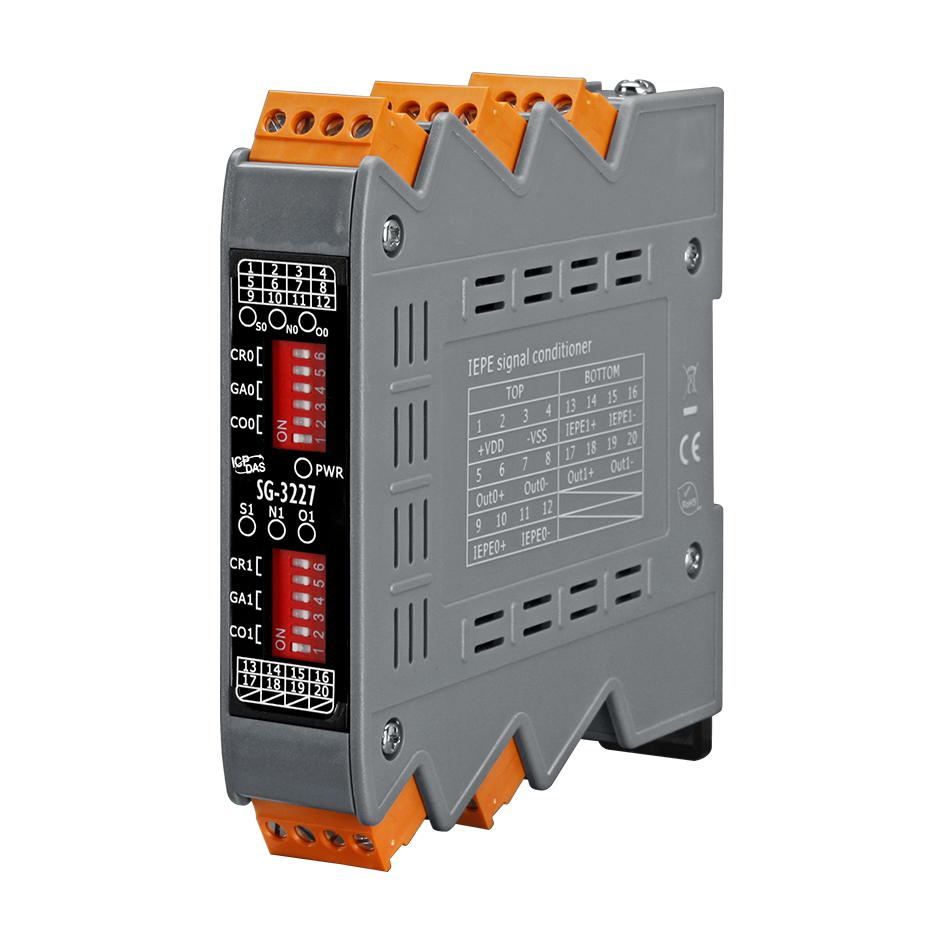

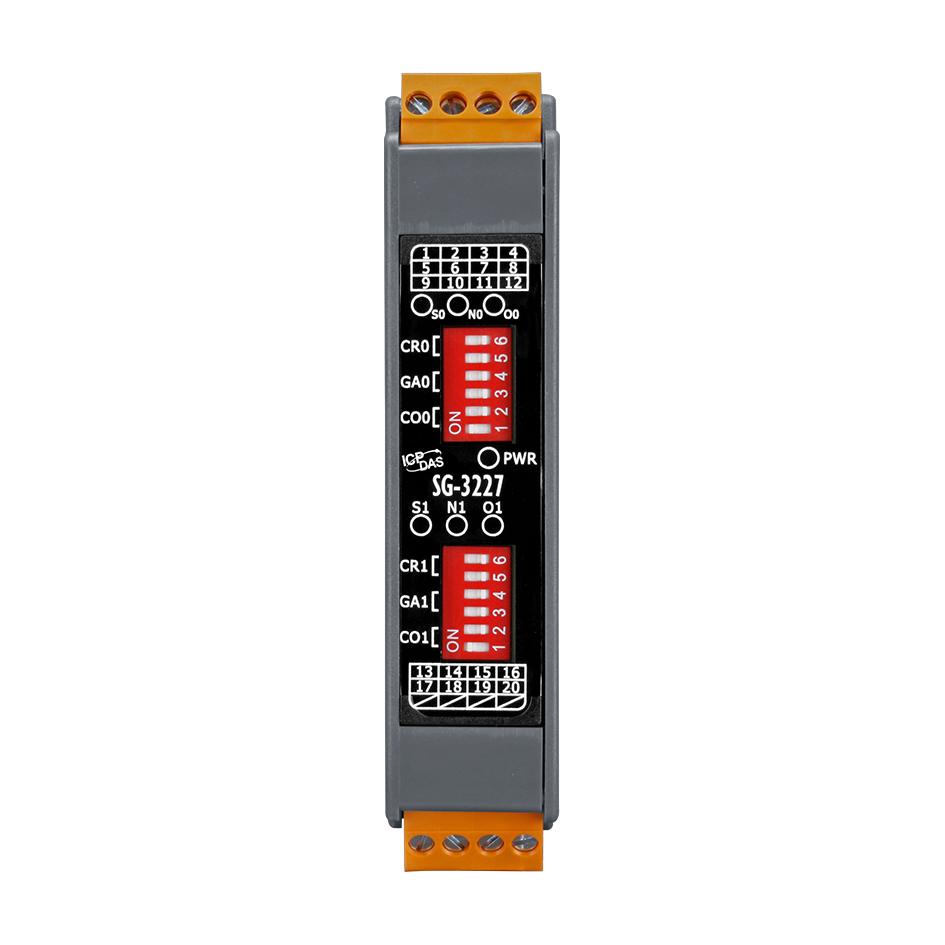

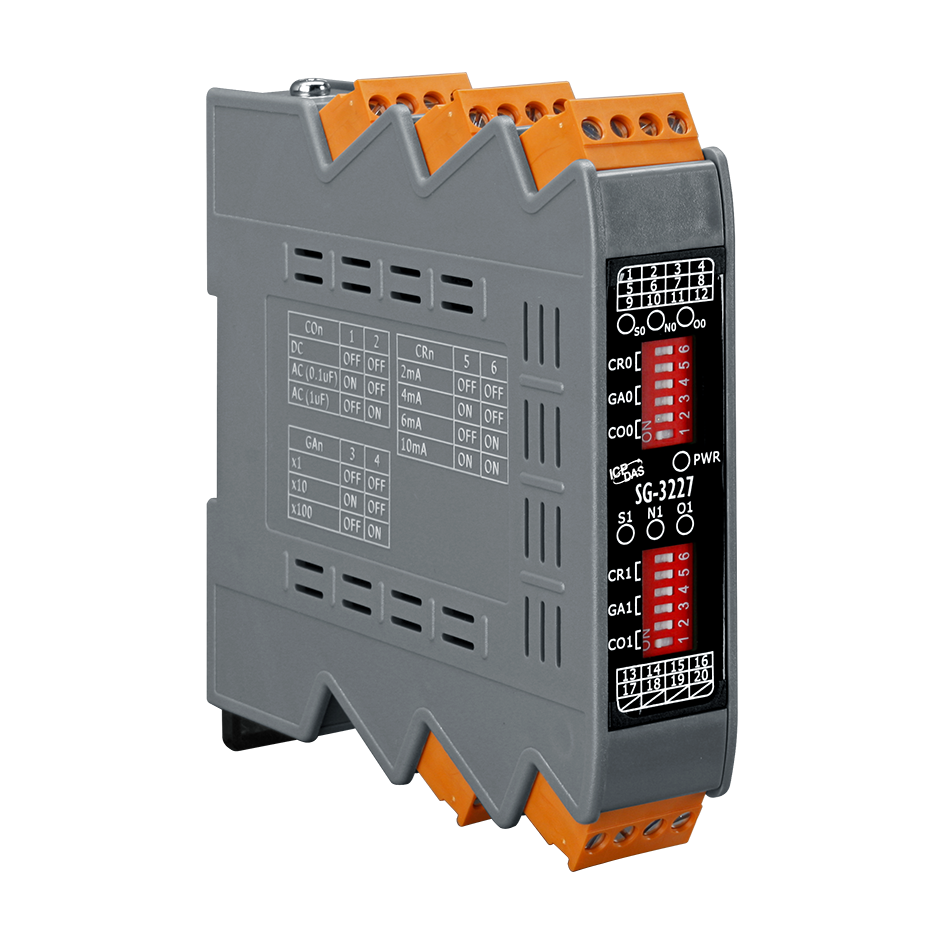

2 Channel IEPE Signal Conditioner. Has Integrated Electronic Piezo Electric inputs and 2mA, 4mA, 6mA and 10mA current outputs.(RoHS)
Features
SG-3227 is a 2-channel IEPE signal conditioner. It has 2mA/4mA/6mA/10mA excitation current for sensors with integrated amplifiers. It features three selectable gain x1/x10/x100 ranges individually for two channels. LED failure indicators for sensor condition minimize the risk of handling errors.
- 2-channel Input
- Individual Channel Configuration
- Excitation Current Support: 2 mA/4mA/6mA/10mA
- Signal Amplification of x1 , x10 and x100
- LED Indicators for Sensor Open, Short and Normal
- Flexible DIN-Rail Mounting
Applications
- Data Acquisition System
- Vibration Measurement
- Remote Diagnosis
- Testing Equipment
Specifications
I/O Specifications
IEPE
Channels
2
Connectors
Screw Terminal (Including a female BNC to terminal block adaptor)
Excitation Current
2 mA/4mA/6mA/10mA
Gain
x1/x10/x100 for AC Coupling
Upper Cut-off Frequency
x1, x10 Gain: 80 kHz; x100 Gain: 50 kHz
Lower Cut-off Frequency
AC Coupling (0.1uF): 1.6 Hz
AC Coupling (1uF): 0.2 Hz
System Specifications
LED Indicator
System LED Indicator
1 as Power Indicator
LED Status Indicator
Yellow : Sensor Open
Green : Sensor Normal
Red : Sensor Short
Isolation
Input/Output to Power
1000 VDC
EMS Protection
ESD (IEC 61000-4-2)
±4 kV Contact for each Terminal
EFT (IEC 61000-4-4)
±4 kV for Power Line
Surge (IEC 61000-4-5)
±1 kV for Power Line
Power
Reverse Polarity Protection
Yes
Input Range
+10 to +30 VDC
Consumption
3 W
Mechanical
Dimensions (W x L x H)
25 mm x 116 mm x 120 mm
Installation
DIN-Rail or Wall Mounting
Environment
Operating Temp.
-25°C ~ 75°C
Storage Temp.
-40°C ~ 85°C
Humidity
10 ~ 90% RH, non-condensing
