Strain gauge Input to Voltage/Current Output Signal Conditioner. Has 3000Vdc three-way isolation for input, output and power. DIN rail mountable and supports operating temperatures from -25 to 75C (-13F ~ 167F).

SG-3016 - Voltage Input to Voltage/Current Output Signal Conditioner

Strain gauge Input to Voltage/Current Output Signal Conditioner. Has 3000Vdc three-way isolation for input, output and power. DIN rail mountable and supports operating temperatures from -25 to 75C (-13F ~ 167F).

  Price:  $259.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

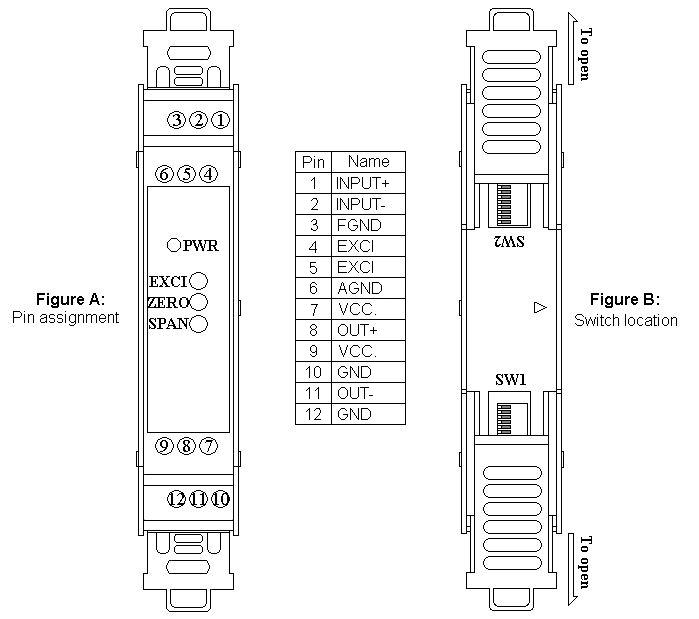

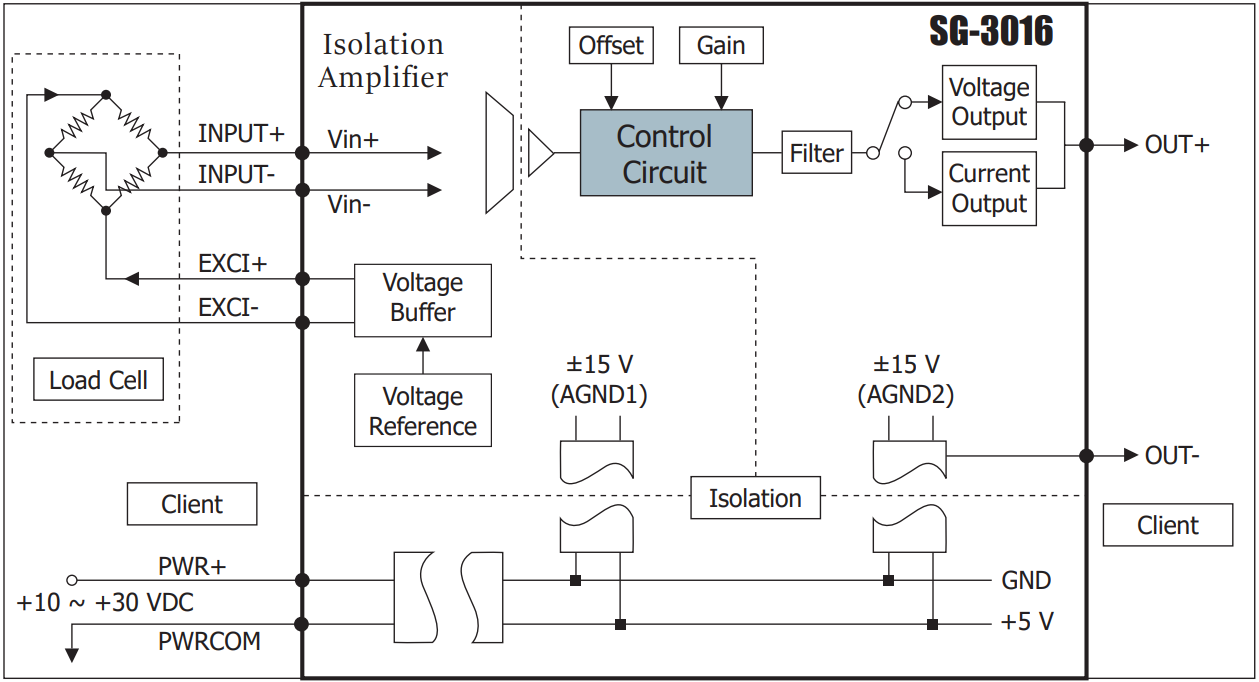

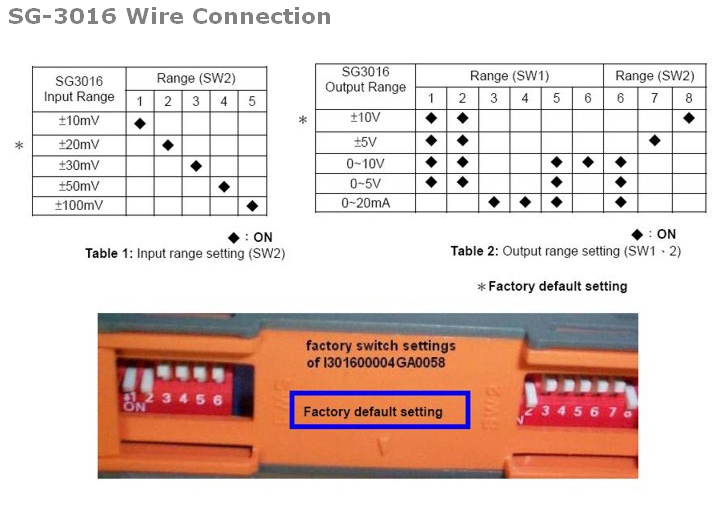

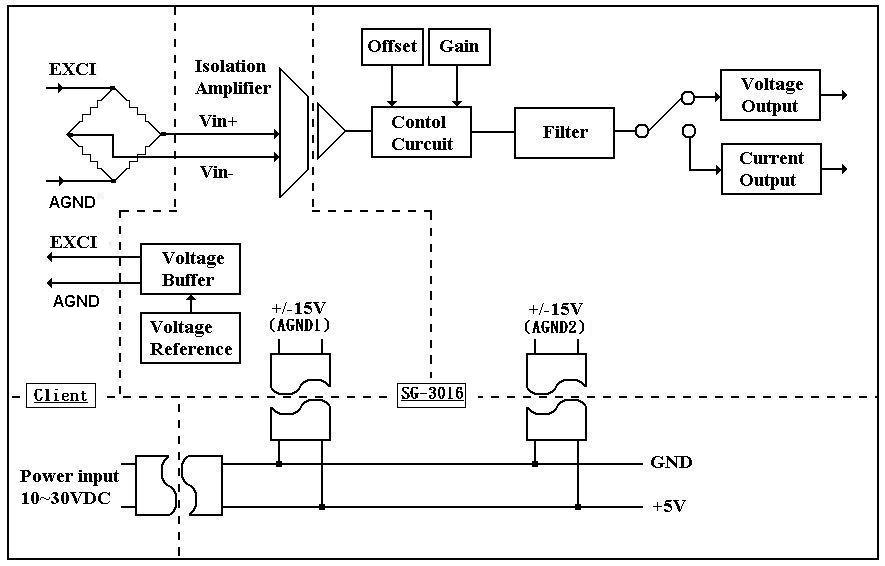

Internal I/O Structure

ICP DAS signal conditioners effectively convert one type of electronic signal into a another type of signal. Its primary use is to convert a signal that may be difficult to read by conventional instrumentation into a more easily read format!

The SG-3016 is a strain gauge input to voltage or current output signal conditioning module. It has 3000Vdc three-way isolation for input, output and power. Users can change the input/output range via internal configuration switches. The SG-3016 has an LED display to show whether the SG-3016 is functioning correctly and has three VRs (Zero, Span, Exci) to calibrate the input/output range accuracy. The bandwidth of the SG-3016 is typically 600Hz. It’s easy to mount the SG-3016 on a standard DIN rail and can operate in environments with wide temperature range.

Specifications

  • Voltage Specifications :
    • Electrical input : ±10mV, ±20mV, ±30mV, ±50mV, ±100mV
    • Excitation voltage : 1 ~ 10Vdc (20mA max.)
  • Voltage output :
    • Bipolar : ±5V, ±10V
    • Unipolar : 0 ~ 10V, 0 ~ 5V
    • Output impedance : <50Ω
  • Current Output(Source) : 0 ~ 20mA
    • Current load resistor: 0 ~ 500Ω (Source)
  • Three-way isolation : 3000Vdc
  • Accuracy : ±0.1% of full range
  • Bandwidth: 600Hz @ -3db (Typical)
  • Weight:102.5gram
  • Supply Voltage : 24VDC Unregulated
  • Consumption :
    • 1.44W(Voltage Output)
    • 1.74W(Current Output)
  • Mount: Din Rail Mount
