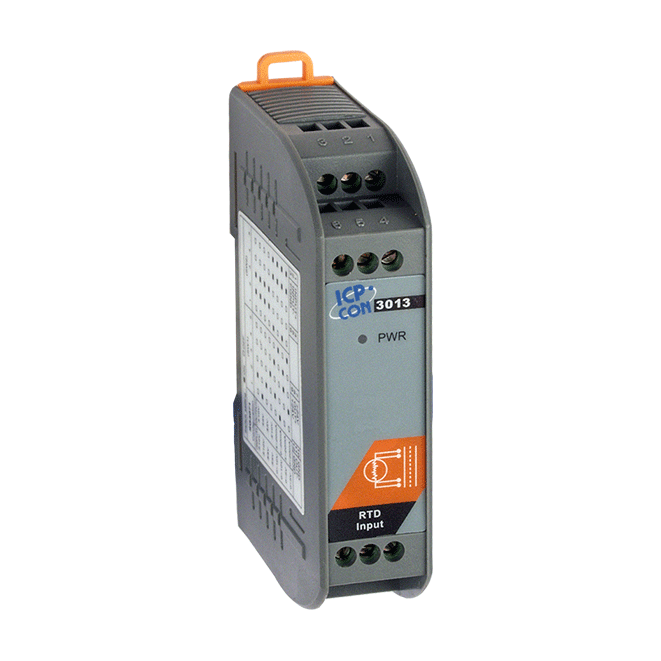

SG-3013 - RTD Input with Current or Voltage Output

On Sale Now (Quantity limited)
SG-3013: $269.00 $188.30

Isolated RTD Input Module. Provides voltage or current output.

  Price:  $309.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
On Sale Now (Quantity limited)
SG-3013: $269.00 $188.30
Isolated RTD Input Module. Provides voltage or current output." />

Features

The SG-3013 is a RTD input signal conditioning module to transform RTD input to voltage or current output. SG-3013 uses a microprocessor-based transducer, which integrating two high resolution ADCs and an MCU, to acquire the RTD signal. The supported RTD types are Pt100 , Pt1000 , Ni 120 ,Cu100 ,and Cu1000.

Signal Input :

  • Input Type :
  • Pt100 α=0.00385 / Pt100 α=0.003916 / Ni 120 / Pt1000 α=0.00385
  • RTD Type and Temperature Ranges

switch

Temperature
Range °C

switch

Temperature
Range °C

RTD Type Platinum 100,
α= 0.00385

RTD Type Platinum 100,
α= 0.003916

1

0x00

00000

-200~200

17

0x10

00001

-50~150

2

0x01

10000

-200~600

18

0x11

10001

0~100

3

0x02

01000

-100~100

19

0x12

01001

0~200

4

0x03

11000

-100~0

20

0x13

11001

0~600

5

0x04

00100

-100~200

RTD Type Platinum 1000,
α= 0.00385

6

0x05

10100

-50~50

21

0x14

00101

-200 ~ 600

7

0x06

01100

-50~150

RTD Type Nickel 120

8

0x07

11100

0~100

22

0x15

10101

-80 ~ 100

9

0x08

00010

0~200

23

0x16

01101

0 ~ 100

10

0x09

10010

0~600

24

0x17

11101

0~300

RTD Type Platinum 100,
α= 0.003916

25

0x18

00011

-80~300

11

0X0A

01010

-200~200

RTD Type Cu 100 at 0°C,
α= 0.00421

12

0X0B

11010

-200~600

26

0x19

10011

-20 ~ 150

13

0X0C

00110

-100~100

RTD Type Cu 100 at 25°C,
α= 0.00427

14

0X0D

10110

-100~0

27

0x1A

01011

0 ~ 200

15

0X0E

01110

-100~200

RTD Type Cu 1000 at 0°C,
α= 0.00421

16

0X0F

11110

-50~50

28

0X1B

11011

-20 ~ 150

Specifications

Input Connections :

  • 2 wires, no wire resistance compensation
  • 3 wires, only one wire’s resistance is compensated for
  • 4 wires, has full wire resistance compensation

Voltage output :

  • Unipolar : 0~5V, 0~10V
  • Output impedance : <50Ω

Current output :

  • Current : 0 ~ 20mA, 4 ~ 20mA
  • Current load resistor : 0~500Ω (Source)

General :

  • Three-way isolation : 3000Vdc
  • Accuracy : ±0.1% of full range
  • Operation temperature range : -25°C ~ 75°C
  • Storage temperature range : -30°C ~ 85°C
  • Weight : 94 gram

Supply Voltage :

  • Input Range : 10 ~ 30Vdc
  • Consumption : < 1.2W
