24 V / 10 A, 240 W Single Output Industrial DIN Rail Power Supply with PFC Function. Built-in active PFC function, operating temperature range of -25°C ~ 70°C (-13°F ~ 158°F)

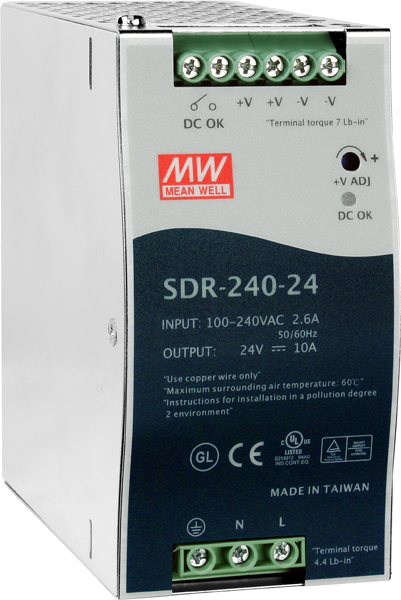

SDR-240-24

24 V / 10 A, 240 W Single Output Industrial DIN Rail Power Supply with PFC Function. Built-in active PFC function, operating temperature range of -25°C ~ 70°C (-13°F ~ 158°F)

  Price:  $349.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

  • High efficiency 94% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • Specifications

    Output
    DC Voltage
    24 V
    Rated Current
    10 A
    Current Range
    0 ~ 10 A
    Rated Power
    240 W
    Peak Current
    15 A
    Peak Power - Note 6
    180 W (3 sec.)

    Ripple & Noise (max.)

    100mVp-p
    Voltage Adj. Range 24 ~ 28 V
    Voltage Tolerance ±1.0%
    Line Regulation ±0.5%
    Load Regulation ±1.0%
    Setup, Rise Time 1500ms, 60ms/230 VAC
    3000ms, 60ms/115 VAC at full load
    Hold Up Time (Typ.) 20ms/230 VAC
    20ms/115 VAC at full load
    Input
    Voltage Range 88 ~ 264 VAC
    124 ~ 370 VDC
    Frequency Range 47 ~ 63Hz
    Power Factor (Typ.) 0.93/230 VAC
    0.99/115 VAC at full load
    Efficiency (TyINPUT p.) - Note. 8 94%
    AC Current (Typ.) 2.6 A/115 VAC
    1.3 A/230 VAC
    Inrush Current (Typ.) 33 A/115 VAC
    65 A/230 VAC
    Leakage Current <1 mA/240 VAC
    Protection
    Overload Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery
    >150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
    Over Voltage
    29 ~ 33V
    Protection type : Shut down o/p voltage with auto-recovery
    Over Temperature
    95°C ±5°C (TSW : detect on heatsink of power switch)
    Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
    Function
    DC OK Realy Contact Ratings (max.) 60 Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
    Environment
    Working Temperature - Note. 5 -25 ~ +70°C (Refer to "Derating Curve")
    Working Humidity 20 ~ 95% RH non-condensing
    Storage Temperature, Humidity -40 ~ +85°C , 10 ~ 95% RH
    Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
    Vibration
    Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
    Safety & EMC (Note 4)
    Safety Standards UL508, TUV EN60950-1 approved
    Withstand Voltage I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC     O/P-DC OK:0.5KVAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH
    EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
    EMC Immunity
    Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47, GL approved
    Other
    MTBF 169.3K hrs min.     MIL-HDBK-217F (25 °C)
    Dimensions 63mm x 125.2mm x 113.5mm (W x H x D)
    Packing
    1.03Kg; 12pcs/13.4Kg/1.06CUFT
    Note
    1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance : includes set up tolerance, line regulation and load regulation.
    4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
    5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
    6. 3 seconds max., please refer to peak loading curves.
    7. Derating may be needed under low input voltage. Please check the derating curve for more details.
