Isolated Power Module (12V)

PW-3090-12S

Isolated Power Module (12V)

  Price:  $159.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The PW-3090 series is an efficient (83%) DC-to-DC power module with 1000 Vdc isolated protection. It has non-regular DC input (18~36V) and stable DC output (5V, 12V, 24V, ±5V, ±15V). Using it, your devices can work with stable power source and against harmful effects in the operating environment.
  • 1000Vdc isolation
  • Flexible DIN-rail mounting
  • Isolated Power Signal Conditioning Module

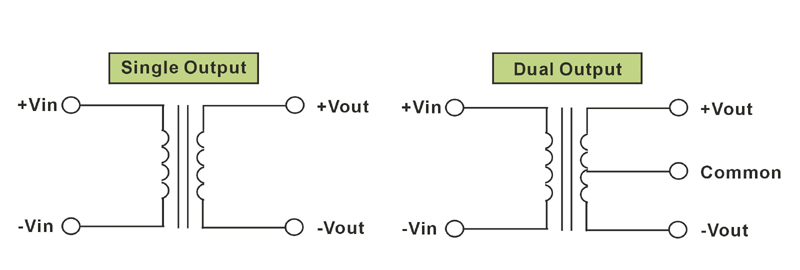

Internal I/O Structure

Specifications

  • Input Voltage Range:18 ~ 36Vdc
  • Temperature Coefficient : ±0.03%/°C
  • Ripple & Noise: 100mVp-p max.
  • Line Regulation: ±0.2% max.
  • Load Regulation: ±0.2% max.
  • Short Circuit Protection
  • Efficiency: 83% Typical
  • Isolation Voltage: 1000Vdc
  • Isolation Resistance: 109 ohms min.
  • Switch Frequency: 200KHz
  • Operating Temperature: -25°C to 70°C
  • Storage Temperature range: -30°C to 85°C
  • Dimensions: 113mm x 70.5mm x 24.5mm
  • Weight: 110 grams
  • Applications:
    • Power isolation (DC-to-DC converter)
