PROFIBUS Remote I/O Unit with 8 Expansion Slots

PROFI-8855

PROFIBUS Remote I/O Unit with 8 Expansion Slots

  Price:  $1,469.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

The PROFI-8855 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8 slots for ICPDAS I-8k High Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

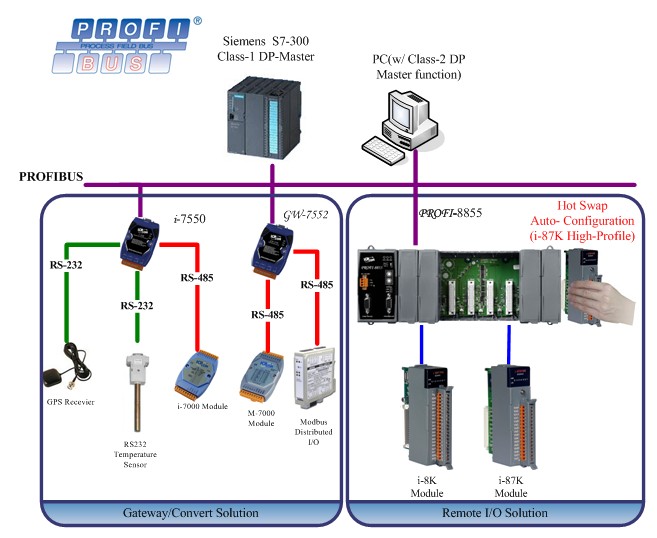

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation

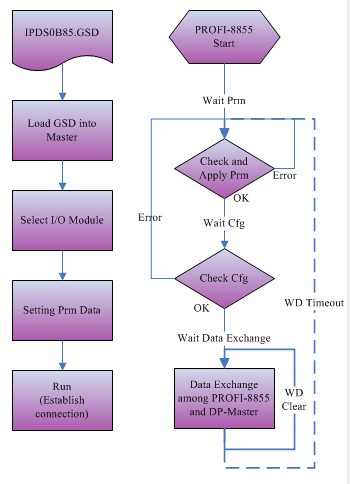

Flow Chart

Reference & Support

Specifications

Hardware

CPU

80186, 80 MHz or compatible

SRAM/Flash/EEPROM

512 KB / 512 KB / 2 KB

Watchdog

Watchdog IC

CPU built-in

Expansion Slot

8 slots

ESD Protection

4 kV class A

PROFIBUS Interface

Controller

Profichip VPC3+C

Transceiver

ADI ADM2486

Connector

9-pin female D-Sub

Baud Rate (bps)

9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M

Transmission Distance (m)

Depend on baud rate (for example, max. 1200 m at 9.6 kbps )

Isolation

3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic

Protocol

DP-V0

UART Interface

COM

RS-232 (For updating firmware)

LED

Round LED

PWR LED, RUN LED, ERR LED

Power

Power supply

Unregulated +10 ~ +30 VDC

Protection

Power reverse polarity protection, Over-voltage brown-out protection

Power Consumption

5.5 W (Max.)

Mechanism

Installation

DIN-Rail or Wall Mount

Dimensions

312 mm x 91 mm x 132 mm (W x L x H)

Environment

Operating Temp.

-25 ~ 75 ℃

Storage Temp.

-40 ~ 80 ℃

Humidity

5 ~ 90% RH, non-condensing
