PROFIBUS Remote I/O Module (10-Channel Thermocouple input) (ROHS) includes PROFI-5018 module and a DB-1820 daughter board

PROFI-5018

PROFIBUS Remote I/O Module (10-Channel Thermocouple input) (ROHS) includes PROFI-5018 module and a DB-1820 daughter board

  Price:  $749.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

The PROFI-5018 is designed to support up to 10-channel Thermocouple, Current and Voltage input. The PROFI-5018 provides +/-4KV ESD protection contact for all terminals (include I/O Terminals and PROFIBUS connector). Users can easily establish a PROFIBUS DP network with other DP-Masters.

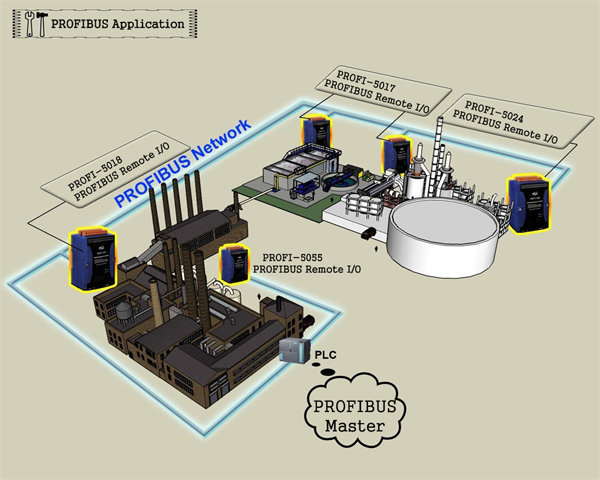

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…



Protocol & Hierarchy DP-V0 Slave
Supports PROFIBUS Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting detected automatically
Address Setting Address 0~126 set by rotary switches or SSA Telegram
Indicators PWR LED, RUN LED, ERR LED
I/O modules Configuration Configured by GSD file
Network Isolation Protection High Speed iCoupler
4KV ESD Protection Contact for each terminal

Thermocouple Type

Thermocouple Type Temperature Range °C
TYPE J -210 °C ~ +1200 °C
TYPE K -270 °C ~ 1372 °C
TYPE T -270 °C ~ 400 °C
TYPE E -270 °C ~ 1000 °C
TYPE R -50 °C ~ 1765 °C
TYPE S -50 °C ~ 1765 °C
TYPE B 0 °C ~ 1820 °C
TYPE N -270 °C ~ 1300 °C
TYPE C 0 °C ~ 2320 °C

Specifications

Hardware

ESD Protection

4 kV class B

PROFIBUS Interface

Controller

Siemens SPC3

Transceiver

ADI ADM2486

Connector

9-pin female D-Sub

Baud Rate (bps)

9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M

Transmission Distance (m)

Depend on baud rate (for example, max. 1200 m at 9.6 kbps )

Isolation

3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic

Protocol

DP-V0

LED

Round LED

PWR LED, RUN LED, ERR LED

POWER

Power supply

Unregulated +10 ~ +40 VDC

Protection

Reverse polarity protection, Over-voltage brown-out protection

Power Consumption

3.5 W

I/O

Analog Input

10 channel differential thermocouple input, Isolation Voltage:2500Vrms

Input Range

+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA, 0~20mA, 4~20mA (requires optional external 125 Ohms resistor), Thermocouple Type: J, K, T, E, R, S, B, N, C

Accuracy

+/- 0.1 of FSR

Mechanism

Installation

DIN-Rail

Dimensions

91 mm x 130 mm x 52 mm (W x L x H)

Environment

Operating Temp.

-25 ~ 75°C

Storage Temp.

-30 ~ 80°C

Humidity

10~90% RH,non-condens
