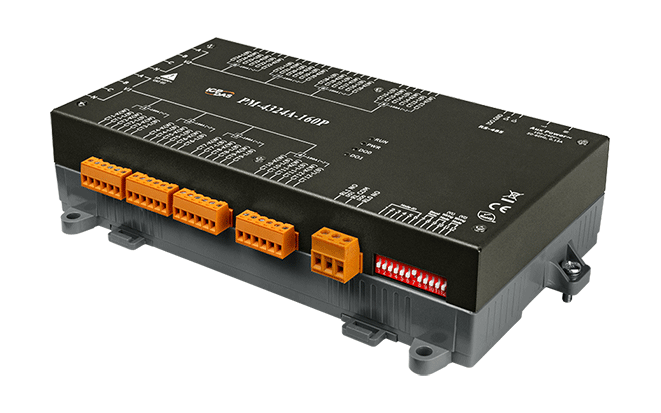

Multi-circuit Smart Power Meter

PM-4324A-160P

Multi-circuit Smart Power Meter

  Price:  $3,799.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

  • Bi-directional Energy
  • 8 Three Phase Circuits or 24 Single Phase Circuits
  • 2 Independent main circuit inputs
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 100 A with Different CT Ratio
  • Voltage Measurements Up to 500 V
  • Easy install with split core CT
  • W Accuracy Better than 0.5% (PF=1)
  • Total Harmonic Distortion (THD)
  • Support Modbus RTU Protocol
  • Support 2 Power Relay Output (Form A)

CE FCC RoHS WEEE

Introduction

The PM-4324 series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324 series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. The PM-4324A is the same model as the PM-4324, except for the AC Measurement. The PM-4324A has 2 separate main circuit inputs that can use in the different power system.

Applications

  • Generator monitoring
  • Switchgear distribution systems
  • Energy Management
  • Power quality analysis

Reference & Support

Specifications

AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops Multi-circuit
Input Voltage 10 ~ 500 V
Input Current CTØ16 mm (0.1 A ~ 100 A)
Input Frequency 50/60 Hz
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate 1 Second
CT
Includes CTs 24
Type Clip
Max. Current 100 A
Inside Diameter 16 mm
Leading Cable 4 mm
COM Ports
Ports 1 x RS-485
Baud Rate 9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol Modbus RTU
Isolation 3000 VDC
Power
Input Range +85 ~ +264 VAC (277 VAC available)
Consumption 6 W
Alarm Contact Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing Metal
Dimensions (mm) 237 x 57 x 134 (W x L x H)
Installation DIN-Rail, Wall mounting
Environmental
Operating Temperature -20 ~ +70°C
Storage Temperature -25 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing
