PIR-130-AC

Passive Infrared (PIR) 360° Motion and Temperature Sensor Module. DCON and RS-485 Modbus RTU protocol. 110~220 VAC with operating temperature range of -25°C ~ +75°C (-13°F ~ +167°)

  Price:  $189.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

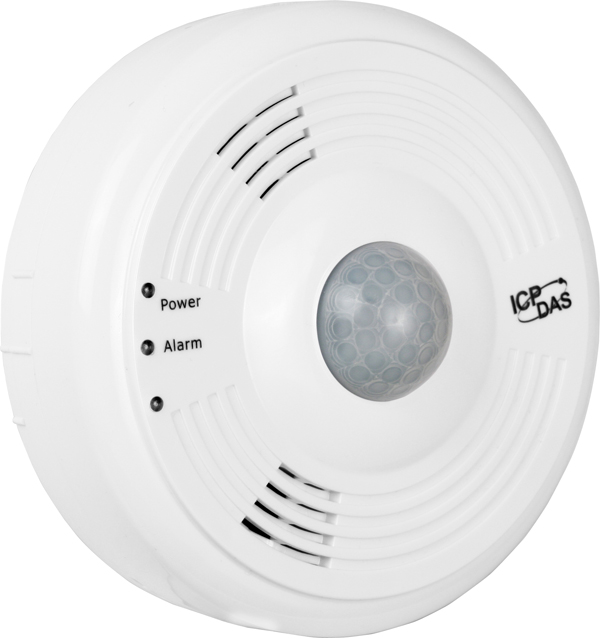

The PIR-130-AC module has a 1-channel passive infrared (PIR) sensor that detects human-body generated infrared waves within a range of approximately 8 meters in diameter with a 360° coverage area. The PIR-130-AC is for indoor motion detection and can be configured to automatically switch on a light if motion is detected. It also includes a 1-channel temperature sensor that can measure room temperature or be configured to activate a fire alarm.

The device has an RS-485 interface and runs on DCON and Modbus RTU protocols.

  • 360° Motion Detection Up to 8 meter Diameter Range
  • Time-Delay / Lux. / Sensitivity Adjustable
  • Photo Sensor Inside for Smart Switch-on Control
  • LED Indicator for PIR/Temperater Sensor
  • The Temperature Sensor for Measuring Room Temperature or Fire Alarm
  • Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
  • Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
  • RS-485 Communication Interface
  • DCON and Modbus RTU Protocols
  • Ceiling Surface Mount Design

Specifications

CPU Module
Time-delay Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
LUX Control Level Hardware: 2 mode (Dawn and dust) / Software: 5-step
Detection Range Distance: 4 meters Max.
Detection Field of View 360° Diameter 8 meters Max.
Temperature Sensor
Measurement Range -25°C ~ +100°C (-13°F ~ 212°F)
Fire Alarm 65°C (Programmable)
Resolution 0.0625°C
Accuracy ±2°C

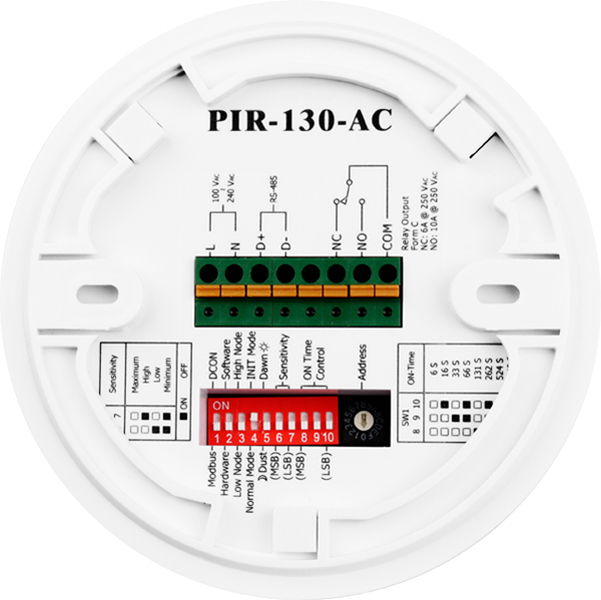

Relay Output
Channel 1
Type Power Relay, Form C
Max. Load Current NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC
Load Wattage Incandescent Bulb: 1500 W Max.; Fluorescent Lamp 300 W Max.
RS-485 Interface
COM Port RS-485
Transmission Distance (m) Dependent on Baud Rate. For example, 1200 m Max. at 9600 bps.
Baud Rate (bps) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol DCON, Modbus RTU
Node Address Hardware: 160 ~ 191 / Software: 1 ~ 255
LED Indicators
LED Indicators Yes,1 as Power/Communication Indicator. 1 as Alarm Indicator.
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal, ±8 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power Line
Power Requirments
Power Supply 110 ~ 220 VAC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 2 W
Mechanical
Installation Ceiling mounting
Protection Class IP20
Dimension (D x H) Ø 121 mm x 52 mm
Environmental
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -30°C ~ +80°C (-22°F ~ +176°F)
Humidity 10 to 90% RH, Non-condensing
