PROFINET Input Module (Dry contact source, Non-Isolated 16-ch Digital Input).  10 ~ 30 VDC. Communications over PROFINET and has with operating temperatures of -25°C ~ +75°C (-13°F ~ +167°f) and is din rail mountable

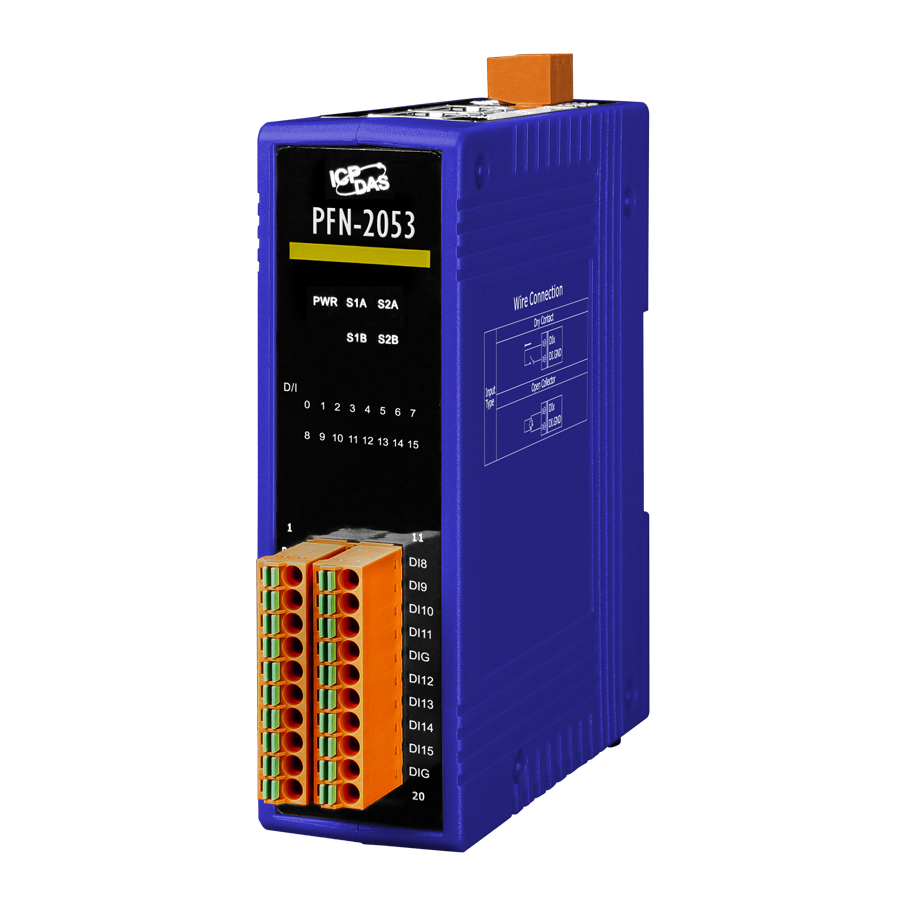

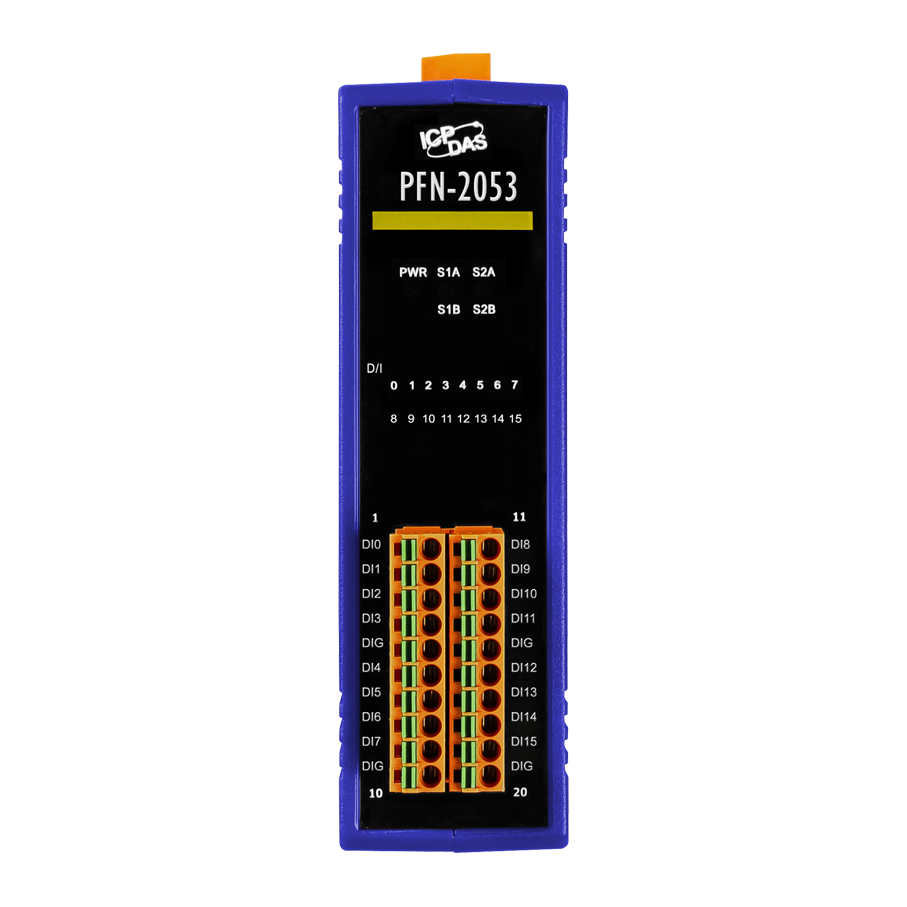

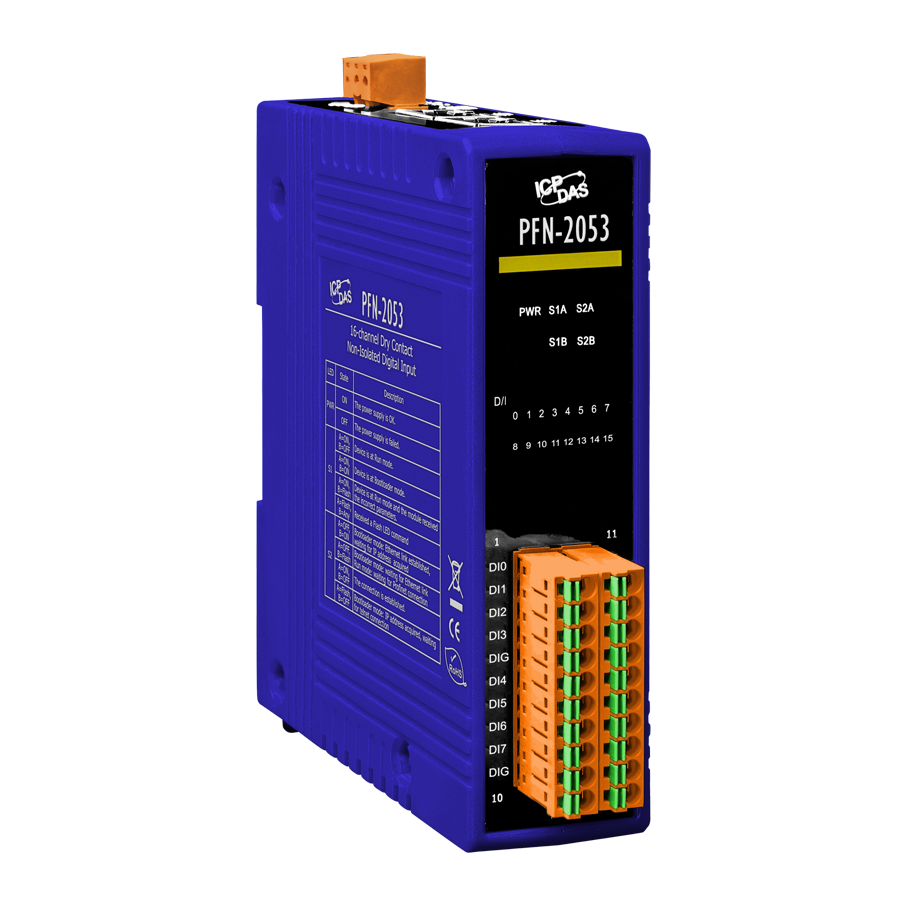

PFN-2053

PROFINET Input Module (Dry contact source, Non-Isolated 16-ch Digital Input). 10 ~ 30 VDC. Communications over PROFINET and has with operating temperatures of -25°C ~ +75°C (-13°F ~ +167°f) and is din rail mountable

  Price:  $559.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

Application Image PFN-2053The PFN-2053 is specially designed for PROFINET IO device. It has 16-channel dry contact non-isolated digital inputs and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
  • 4 kV Contact ESD protection for any terminal
  • Wide range of power input (+10 ~ +30 VDC) and operating temperature -25°C ~ +75°C (-13°F ~ 167°F)

Specifications

Hardware
CPU 32-bit CPU Core
RAM/Flash/EEPROM 32 MB / 4 MB / 8 KB
Watchdog CPU built-in
ESD Protection 4 kV class B
PROFINET Interface
Protocol PROFINET IO Device
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Ethernet Interface
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

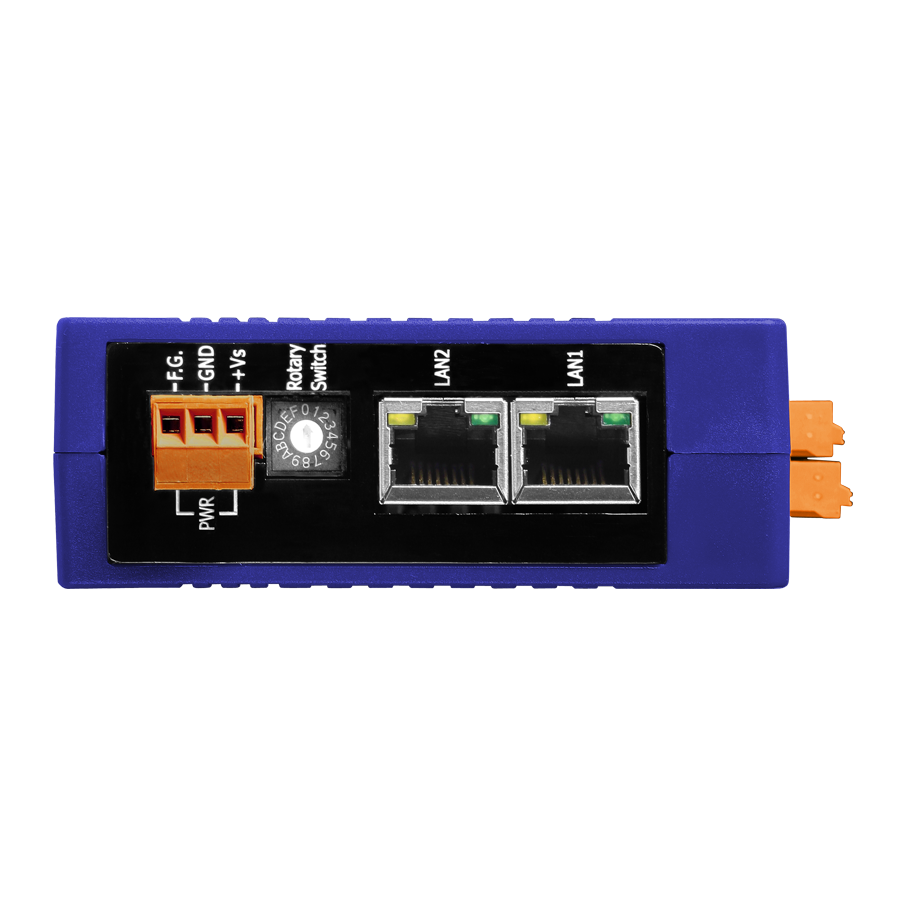

Connector RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Input

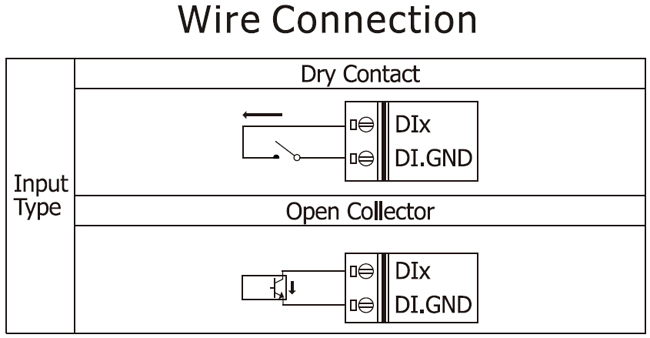

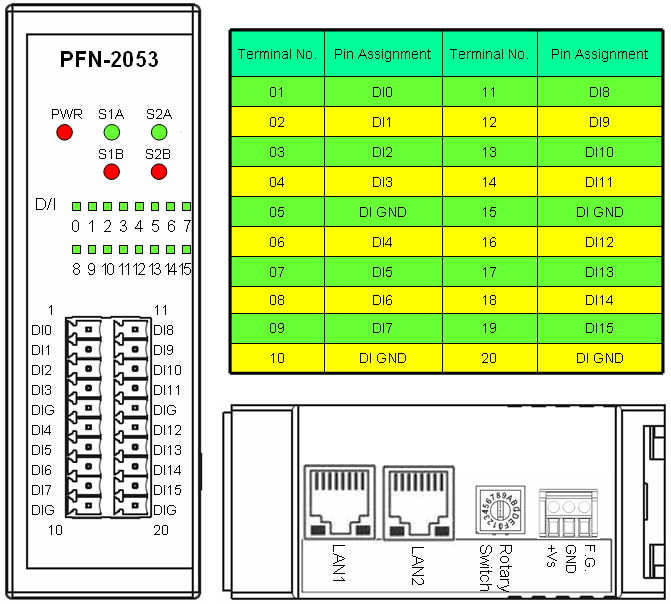

Channels 16, Dry Contact: Source
Dry Contact Level Off Voltage Level : Open, On Voltage Level : Close to GND
LED
Round LED PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 4 W
Mechanism
Installation DIN-Rail
Dimensions 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp. -25°C ~ +75°C (-13°F ~ 167°F)
Storage Temp. -30°C ~ +80°C (-22°F ~ +176°F)
Humidity 10 ~ 90% RH, non-condensing
