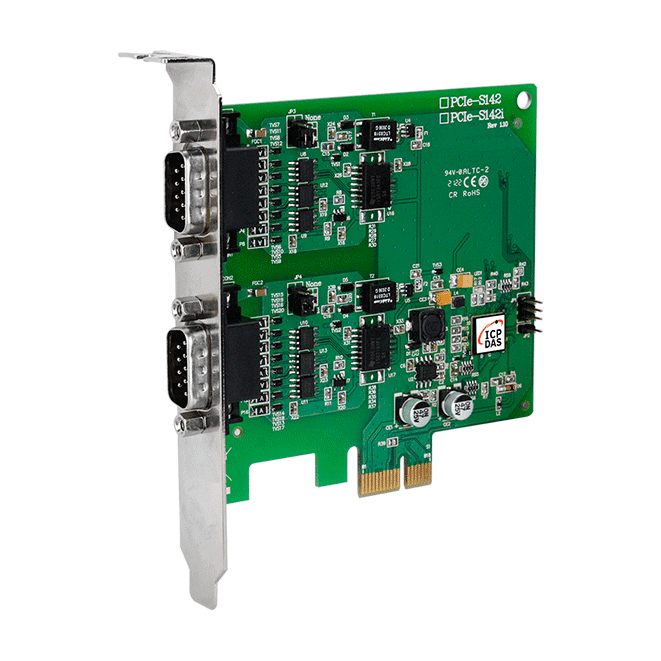

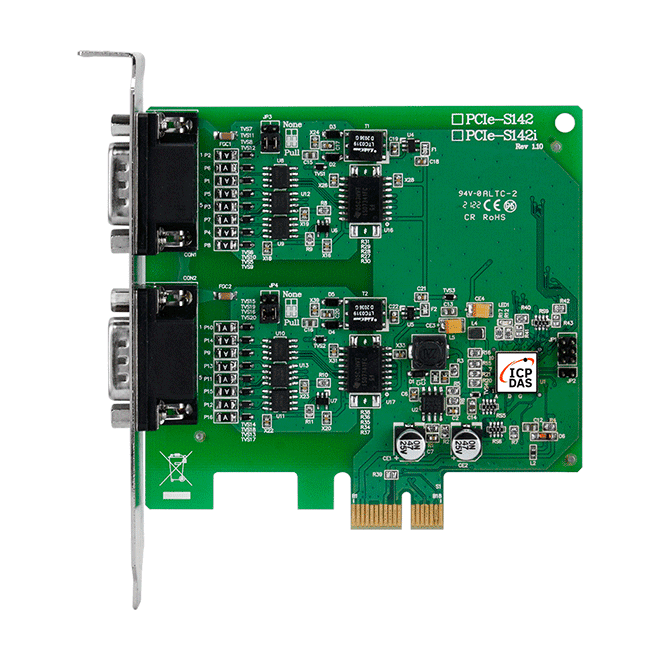

PCIe-S142i

The PCIe-S142 series card provides 2 RS-422/RS-485 serial ports. Uart Bridge provides automatic data direction control for RS-485 signals. Each port can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication. It supports for speed up to 921600 bps and supports full-duplex communication.

The data lines of each serial ports on i version PCIe-S cards come with photocouplers design. The on-board photo couplers use a short optical transmission path to transfer a signal between elements of a circuit, and keep the data lines electrically isolated. It can help cutting down on ground loops, common mode voltages and block voltage spikes, provide electrical isolation, and offer significant protection from serious over-voltage conditions in one circuit affecting the other.

In harsh industrial environments, the on-board ESD protection component (for i version) diverts the potentially damaging charge away from sensitive circuit to protects the computer and equipment from the sudden and momentary electric current.

Drivers provided for a broad selection of operating systems, including 32/64-bit Windows XP/2003/2008/7/8/10 and Linux Kernel 2.4X/2.6X ~ 4.15.

Features

• Supports PCI Express x1
• Provides 2 RS-422/485 ports
• 256-byte Hardware FIFO for Each Port
• Transmission Speed of up to 921600 bps
• 256 modules max. in one RS-485 network
• Automatic RS-485 direction control
• ±4 kV ESD Protection for i versions
• 3000 VDC Isolation for i versions
• Short Card Design
