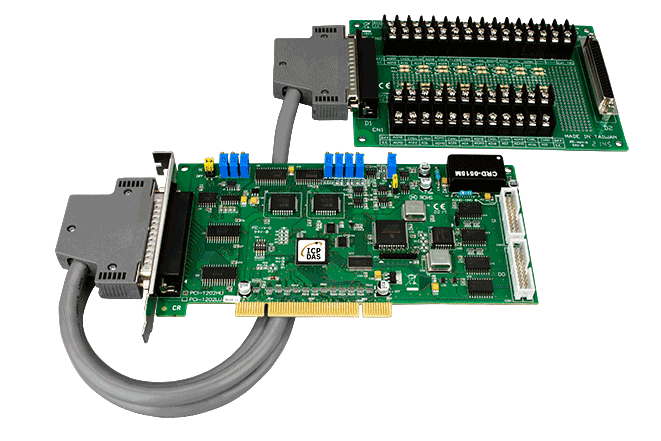

Universal PCI, 44 kS/s, 32-ch, 12-bit AI Multifunction Board, Includes one DB-1825 Daughter Board. (1 K word FIFO)

PCI-1202HU/S

write a review write a review

Universal PCI, 44 kS/s, 32-ch, 12-bit AI Multifunction Board, Includes one DB-1825 Daughter Board. (1 K word FIFO)

Price: $959.00

Fastest Delivery:

Qty:

Compare

Compare: 0

ADD TO CART

BUY BY 1-CLICK

Send Email with Product Info

Write a Review Write a Review Email Us

References and Support Add to Quote

References & Support

Features

Introduction

The PCI-1202 series is a family of high performance data acquisition boards that feature continuous gap-free data acquisition in DOS at 44 kHz for high gain. The PCI-1202 family has the same hardware architecture as the PCI-1802, and provides 32-channel single-ended or 16-channel differential Analog Inputs. As with the PCI-1802 family, the PCI-1202 series features both the Magic Scan and Continuous Capture functions.

The PCI-1202HU Universal PCI card supports both the 3.3 V and the 5 V PCI bus. The PCI-1202HU cards are fully compatible with PCI-1202H cards and are designed as direct replacements without requiring any modification to the software or the driver, with the main difference being the addition of DI pull-high/low resistors and a Card ID switch on the PCI-1202HU.

The PCI-1202HU/8K cards are equipped with an 8K-sample hardware FIFO that reduces data overflow issues in multi-tasking environments such as Windows and Linux.

Accessories

Applications

High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.

Specifications

Hardware

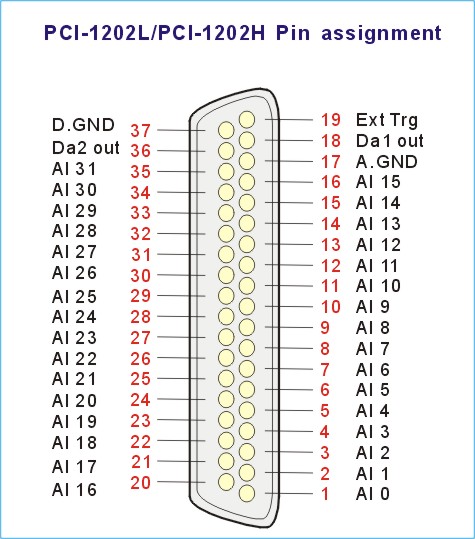

Connector	Female DB37 x 1; Male 20-bit ribbon x 2
Card ID	Yes (4-bit) for Version 4.0 or above
Analog Input
Channels	32 single-ended / 16 differential
Range	Gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	44 kS/s Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	1024 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling
Analog Output
Channels	2
Range	±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Response Time	1.0 MHz (Typical)
Voltage Output Capability	±5 mA
Slew Rate	8.33 V/µs
Operation Mode	Static Update
Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	Logic 1: 2.0 V Min.
OFF Voltage Level	Logic 0: 0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update
Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max.; Logic 1: 2.4 V Min.
Load Current	Sink: 2.4 mA @ 0.8 V; Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)
Timer/Counter/Frequency
Channels	3 (Independent x 1 / Internal pacer x 1 / External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 8 MHz
PC Bus
Type	3.3 V / 5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit
Power
Consumption	300 mA @ +5 V
Mechanical
Dimensions (mm)	105 x 196 x 22 (W x L x D)
Environment
Operating Temperature	0 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	5 ~ 85% RH, Non-condensing
