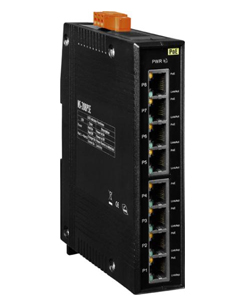

8 Port Industrial 10/100 Mbps PoE (PSE) Ethernet Switch. Comparable to Sixnet, Stride, Hirschmann, and other industrial Ethernet Switches. Supports operating temperatures from -40°C ~ +75°C (-40F ~ 167F).

NS-208PSE-CC (with conformal coating)

8 Port Industrial 10/100 Mbps PoE (PSE) Ethernet Switch. Comparable to Sixnet, Stride, Hirschmann, and other industrial Ethernet Switches. Supports operating temperatures from -40°C ~ +75°C (-40F ~ 167F).

  Price:  $374.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

NS208PSE applicationThe NS-208PSE is an 8-port unmanaged PoE (Power over Ethernet) Industrial Ethernet switch. It supports 8 PoE ports which are classified as power source equipments (PSE). The NS- 208PSE makes centralized power supply come true and provides up to 15.4 watts of power per port. The NS-208PSE can be used to power IEEE802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring.

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Each port supports both 10/100Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • 8 PoE ports with Power Sourcing Equipment (PSE) operation
  • Auto-detection of PD (powered devices) and automatic power management
  • Over-temperature, over-current and over/under-voltage detection
  • Supports operating temperatures from -40°C ~ +75°C
  • DIN-Rail mount
  • NSM-208PSE-R meets railway standards. "-R" stands for products with MIL SPEC conformal coating protection

Specifications

Technology
Standards  IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet)
Processing Type  Store & forward, wire speed switching
MAC Addresses  1024
Memory Bandwidth  3.2 Gbps
Frame buffer memory  512 Kbit
Flow Control  IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports  10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators  Power, Link/Act , Power Device is detected
Ethernet Isolation  1500 Vrms 1 minute
+/- 6kV EMS Protection  Yes
Power Input
Input Voltage Range  +46 ~ +55VDC for PoE output
Power consumption  0.12A@48 VDC with PoE Off
Protection  Power reverse polarity protection
+/- 6kV EMS Protection  Yes
Connection  3-Pin Removable Terminal Block
PoE Output
PoE Compliance  100% IEEE 802.3af compliant
PoE Classification  PSE (Power Sourcing Equipment)
PoE Voltage  +46 ~ +55 VDC depending on power input
PoE Power  Up to 15.4 watts per channel
PoE Operation  Automatic detection and power management
Mechanical
Casing  Metal
Dimensions (W x L x H)  31 mm x 157 mm x 113 mm
Installation  DIN-Rail
Environmental
Operating Temperature  -40 °C ~ +75 °C
Storage Temperature  -40 °C ~ +85 °C
Ambient Relative Humidity  10% ~ 90% RH, non-condensing
