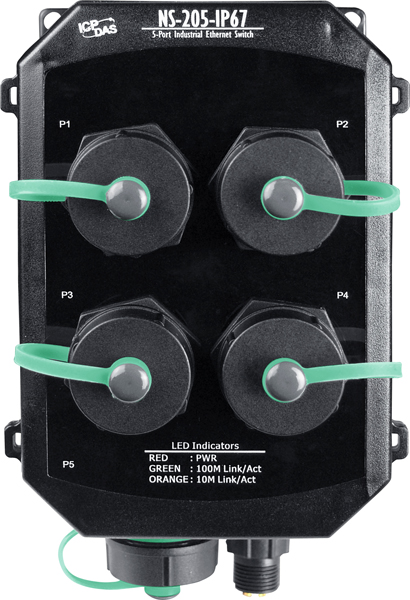

NS-205-IP67/DIN (with din rail mount)
Unmanaged 5-Port Industrial Ethernet Switch with IP67 casing. Automatic MDI/MDI-X crossover for plug-and-play. Full duplex IEEE 802.3x and half duplex backpressure flow control. Has operating temperature range of -10°C ~ +60°C (14°F ~ 140°F)
NS-205-IP67 Ethernet Switches are designed for use in industrial waterproof/harsh environments. The rugged packaging and IP67 connectors guarantee total protection that can withstand a variety of extreme conditions such as: high temperatures, extreme shocks & vibrations, dust particles and even liquid immersion. They can be directly mounted to any machine or convenient flat surface. With all its rugged features the switch still provides a high level of functionality, including the ability to support full-duplex communication and 10 Mbps/100 Mbps transmission speeds. With 1.4 Gbps of total bandwidth, the switch can simultaneously handle full wire speed communication on each port. A dedicated uplink port enables a connection to other switches without the use of a crossover cable. No programming is necessary, as the switch auto-learns network addresses. 10 to 30VDC isolated power input keeps spikes and surges on the power line from damaging the power supply. They are completely plug and play and ready to go right out of the box.
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 1.4Gbps high performance memory bandwidth.
- Integrated look-up engine with dedicated 1 K unicast MAC addresses.
- Supports +10~+30Vdc voltage with 1KV isolation
Reverse Polarity Protection
- Supports operating temperatures from -40 ~ +80°C
- Plastic casing with IP67
|Standards||IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection|
|Packet Buffer Memory||
|Memory Bandwidth||1.4 Gbps|
|Processing Type||Store & forward; wire speed switching|
|Address Table Size||1K Uni-Cast Addresses|
|Flow Control||IEEE802.3x Flow Control, Back Pressure Flow Control|
|RJ45 ports||10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection|
|Ethernet Isolation||1500 Vrms 1 minute|
|LED Indicators||PWR, 10/100M, Link/Act|
|Cable||10 Base-T (Cat.3, 4,5 UTP cable; 100m Max.)|
|100 Base-TX (Cat.5 UTP cable; 100m Max.)|
+10 ~ +30 VDC (1 kV Isolated)
|Power consumption||0.12 A @ 24 VDC|
|Protection||Power reverse polarity protection|
|Connection||Field-installable IP67 rated RJ45 connector|
UL 94V-0 materials
IP67 for Operating Temperature -10°C~ +60°C (+14°F ~ +140°F)
|IP66 for Operating Temperature -40°C~ +80°C (-40°F ~ +176°F)|

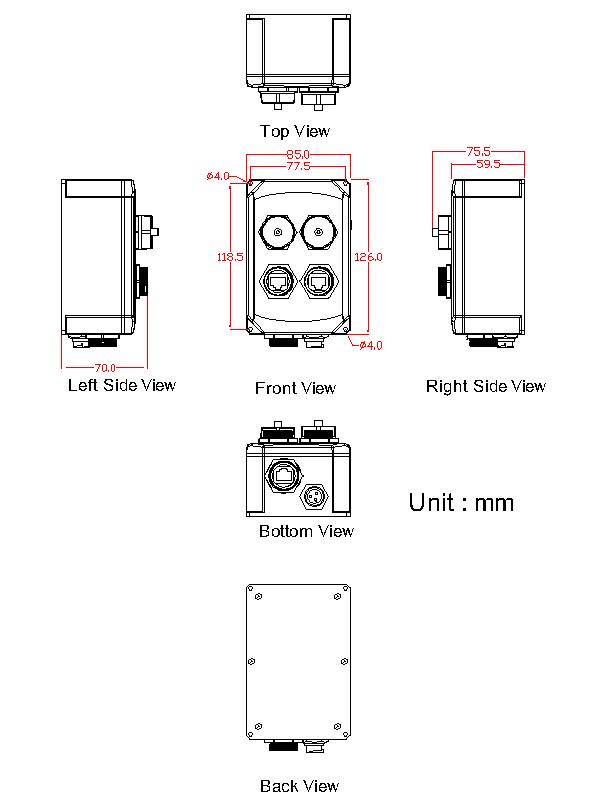

85mm x 126mm x 75.5mm (W x H x D)
-10°C ~ +60 °C (+14°F ~ +140°F) (Protection rating IP67)
|Storage Temperature||-10°C ~ +60 °C (+14°F ~ +140°F) (Protection rating IP67)
-40°C ~ +75 °C (-40°F ~ +167°F) (Protection rating IP66)
|Ambient Relative Humidity||100% RH for Operating Temperature -10°C ~ +60°C (+14°F ~ +140°F)
10% ~ 90% RH, non-condensing for Operating Temperture -40°C ~ +75°C (-40°F ~ +167°F)
