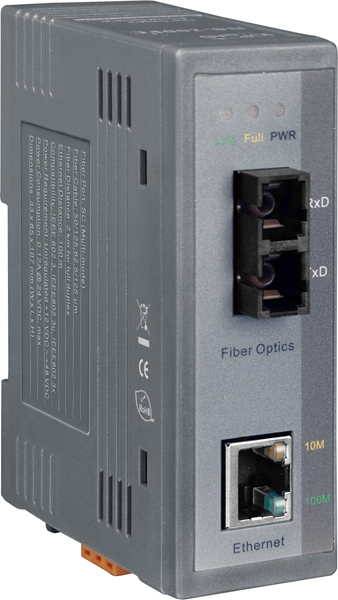

NS-200AFCS-T
Single Mode Industrial 10/100 Base-TX to 100 Base-FX Media Converter. Replacement for NS-200FCS
Features
- Automatic MDI/MDI-X crossover for plug-and-play
- Supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 1.4 Gbps high performance memory bandwidth
- Frame buffer memory: 256 kb
- 1024 MAC addresses
- Supports +10 VDC ˜ +30 VDC
- Reverse Polarity Protection
- Supports operating temperatures from -30 °C ˜ +75 °C
- Slim packaging fits on DIN-Rail
The NS-200AF series is an Ethernet (10/100 Base-TX) to Media (100 Base-FX) converter. The Ethernet supports 10/100M auto negotiation feature and auto MDI/MDI-X function. NS-200A can work normally from -30 ˜ 75°C and accepts a wide voltage range from +12 ˜ 48 VDC.
Specifications
Models | NS-200AFC-T | NS-200AFT-T | NS-200AFCS-T | NS-200AFCS-60T |
Technology | ||||
Standards | IEEE 802.3, 802.3u, 802.3x | |||
Processing Type | Store & forward, wire speed switching | |||
MAC Addresses | 1024 | |||
Memory Bandwidth | 1.4 Gbps | |||
Frame Buffer Memory | 256 Kbit | |||
Flow Control | IEEE 802.3x flow control, back pressure flow control | |||
Interface | ||||
RJ-45 Ports | 10/100 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection | |||
Fiber Port | 100 Base-FX | |||
LED Indicators | 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port) | |||
Ethernet Isolation | 1500 Vrms 1 minute | |||
Multi Mode | Multi mode fiber cables | 50/125, 62.5/125 or 100/140 μm | – | |
Distance | 2 km, (62.5/125 μm recommended) for full duplex | – | ||
Wavelength | 1300 or 1310nm | – | ||
Min. TX Output | - 20 dBm | – | ||
Max. TX Output | -14 dBm | – | ||
Max. RX Sensitiv | -32 dBm | – | ||
Max. RX Overload | -8 dBm | – | ||
Budget | 12 dBm | – | ||
Single Mode | Single-mode fiber cables | – | 8.3/125, 8.7/125, 9/125 or 10/125μm | |
Distance | – | 30 Km | 60 Km | |
Wavelength | – | 1300 or 1310nm | ||
Min. TX Output | – | - 15 dBm | -5 dBm | |
Max. TX Output | – | -8 dBm | 0 dBm | |
Max. RX Sensitivity | – | -34 dBm | -35 dBm | |
Max. RX Overload | – | -5 dBm | ||
Budget | – | 19 dBm | 30 dBm | |
Ethernet Transmission Distance | Ethernet | 2-pair UTP/STP Cat.3, 4, 5, EIA/TIA-568 100 Ω | ||
Fast Ethernet | 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω | |||
Power | ||||
Input Voltage Range | +12 VDC ~ +48 VDC (Non-isolation) | |||
Power Consumption | 0.12 A @ 24 VDC | |||
LED Indicator | Yes | |||
Protection | Power reverse polarity protection | |||
Frame Ground for EMS Protection | Yes | |||
Mechanical | ||||
Casing | Plastic (Flammability UL 94V-0) | |||
Dimensions (W x L x H) | 33 mm x 85 mm x 107 mm | |||
Installation | DIN-Rail | |||
Environment | ||||
Operating Temperature | -30 °C ~ +75 °C | |||
Storage Temperature | -30 °C ~ +85 °C | |||
Ambient Relative Humidity | 10% ~ 90% RH, non-condensing |
Ordering Information
NS-200AFC-T
ndustrial 10/100 Base-T to 100 Base-FX Media Converter; 1 multi mode, SC connector (RoHS)
NS-200AFT-T
Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 multi mode, ST connector (RoHS)
NS-200AFCS-T
Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 single mode, SC connector (RoHS)
NS-200AFCS-60T
Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 (60 km) single mode, SC connector (RoHS)
