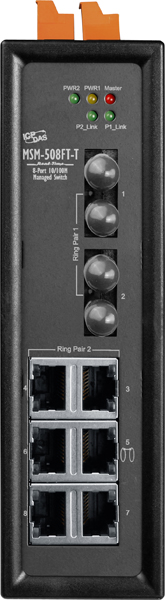

8-port Layer 2 Managed Switch with 2-Fiber Port, Multi-mode, ST Connector (RoHS)


8-port Layer 2 Managed Switch with 2-Fiber Port, Multi-mode, ST Connector (RoHS)

  Price:  $1,059.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.


The MSM-508FT-T series is an 8-port Industrial Ethernet Layer 2 Managed Switch with 2-Fiber Port that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. It is perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.

It can be managed through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the switch supports a lot of powerful managed functions, such as 802.1Q Tag-based VLAN, Portbased VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring.

Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. Typically it detects and recovers from a fiber or copper link failure within approximately 20 ms V for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.

MSM-508F provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the it's power needs. And the relay output facility can deliver warning signal while power or network link failure.

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Supports wide operating temperatures from -30°C ~ +75&de;C
  • Built-in Cyber-Ring redundant technique
  • Redundant Dual Power Inputs +12 VDC ~ +48 VDC
    Power failure alarm by relay output
  • Modbus remote monitoring
  • Supports Modbus OPC Server
  • Store-and-forward architecture
  • Frame buffer memory: 1 Mbit
  • 2048 MAC addresses
  • 3.2 Gbps high performance memory bandwidth
  • DIN-Rail Mounting


Models MSM-508FC-T
MSM-508FCS-T Series
MSM-508FT-T Series
Standards IEEE 802.3, 802.3u and 802.3x
Processing Type Store & forward, wire speed switching
MAC Addresses 2048
Memory Bandwidth 3.2 Gbps
Frame Buffer Memory 1 Mbit
Flow Control IEEE 802.3x flow control, back pressure flow control
Protocol VLAN, QoS, Port Trunk, SMTP, TELNET
Ethernet Interface
RJ-45 Ports 10/100 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Fiber Optics Port 2-port 100 Base-FX
LED Indicators 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port)
Ethernet Isolation 1500 Vrms 1 minute
Multi-mode Multi-mode Fiber Cables 50/125, 62.5/125 or 100/140 ?m
Distance 2 km, (62.5/125 ?m recommended) for full duplex
Wavelength 1300 or 1310 nm
Min. TX Output -20 dBm
Max. TX Output -14 dBm
RX Sensitivity -34 ~ -31 dBm
Single-mode Single-mode Fiber Cables 8.3/125, 8.7/125, 9/125 or 10/125 ?m
Distance 30 km, (9/125 ?m recommended) for full duplex
Wavelength 1300 or 1310 nm
Min. TX Output -15 dBm
Max. TX Output -8 dBm
RX Sensitivity -36 ~ -31 dBm
COM1 RS-232 (TxD, RxD and GND); Non-isolated
COM2 RS-485 (D2+, D2-; self-tuner ASIC inside); Non-isolated
Frame Ground for EMS Protection Yes
Digital Input/Output
Digital Input 3-channel, Wet Contact, L: +11 VDC Max., H: +19 VDC ~ +30 VDC
Digital Output 3-channel, Open Collector, Sink/NPN, 30V/100 mA Max.
Input Voltage Range +12 VDC ~ +48 VDC Redundant Dual Inputs (Non-isolated)
Power Consumption 0.3 A @ 24 VDC
LED Indicator Yes
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connector 20-Pin Removable Terminal Block
Casing Metal
Environmental Rating IP30 Protection
Dimensions (W x L x H) 47 mm x 140 mm x 175 mm 47 mm x 142 mm x 175 mm
Installation DIN-Rail Mounting or Wall mounting
Operating Temperature -30°C ~ +75°C
Storage Temperature -40°C ~ +85°C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing
Include Cable CA-090510 x 1
