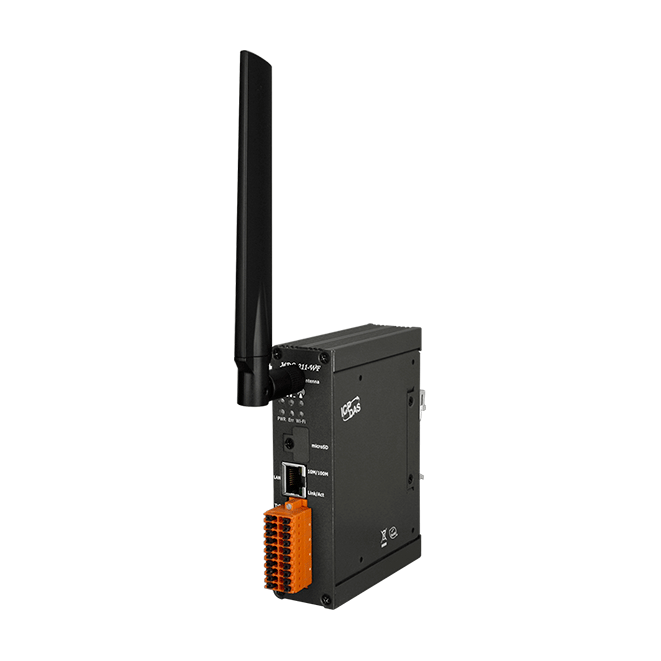

Wi-Fi Modbus Data Concentrator with 1 x Ethernet, 1 x RS-232 and 1 x RS-485

MDC-211-WF

Wi-Fi Modbus Data Concentrator with 1 x Ethernet, 1 x RS-232 and 1 x RS-485

  Price:  $779.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

  • Compatible with IEEE 802.11 a/b/g/n standards
  • Support Infrastructure and Limit-AP mode
  • Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
  • Support Ethernet, RS-232/485 and Wi-Fi interfaces
  • Support Web-based UI Operations
  • Support the Modbus TCP/RTU protocol
  • Support 240 Modbus Polling Commands
  • Supports 9600 Modbus Registers for DI/DO/AI/AO

RoHS WEEE

Introduction

MDC-211-WF Modbus data concentrator developed by ICP DAS, with Ethernet, WiFi Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data of multiple Modbus RTU devices at once.

Applications

application

Specifications

Wi-Fi
Standards IEEE 802.11a/b/g/n
Protocol Modbus TCP Slave
Mode Limit-AP/Infrastructure
Frequency 2.4 GHz
5 GHz
Encryption Open/WEP/WPA/WPA2
Channels 2.4 GHz: CH1~11
5 GHz: CH36, 40, 44, 48
Antenna Omni-Directional
3 dBi @2.4 GHz / 5.5 dBi @ 5 GHz
COM Ports
Ports 1 x RS-232 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Protocol Modbus RTU Master/ Slave
Polling Definition Up to 240 Modbus command definitions for all Wi-Fi/RS-232/ RS-485 ports
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Protocol Modbus TCP Slave
Configuration Web-based User Interface
Power
Input Range +10 VDC ~ +30 VDC
Mechanical
Casing Metal
Dimensions (mm) 52 x 98 x 27 (W x L x H)

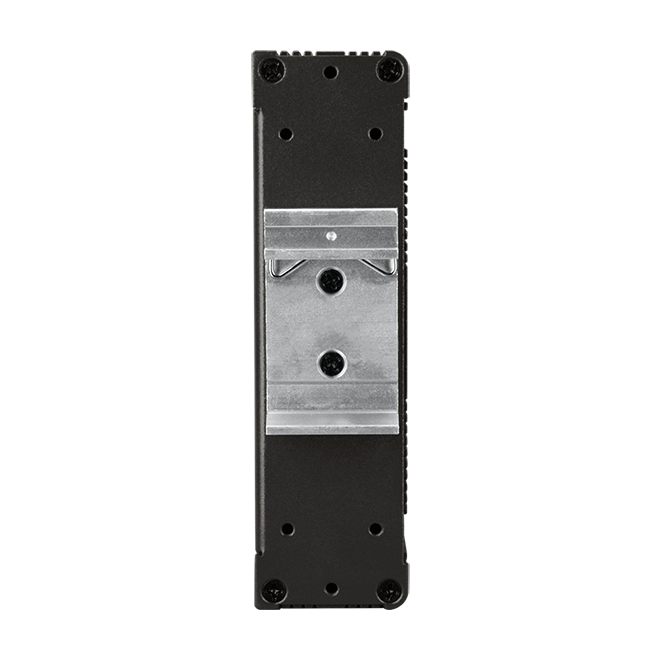

Installation DIN-Rail
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +85°C
Humidity 10 ~ 95% RH, Non-condensing
