8 Channel Voltage Input & Current Input, Analog Input Data Acquisition Module, communicable over Modbus RTU and RS-485, Current Input Version. Supports operating temperatures between -25°C to 75°C (-13°F ~ +167°F).

M-7017RC (current inputs and high voltage protection)

8 Channel Voltage Input & Current Input, Analog Input Data Acquisition Module, communicable over Modbus RTU and RS-485, Current Input Version. Supports operating temperatures between -25°C to 75°C (-13°F ~ +167°F).

  Price:  $439.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

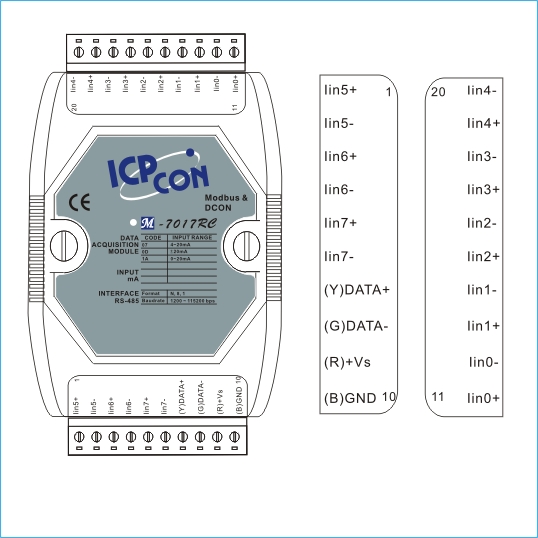

Features

The M-7017RC device is a network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.

M-7017 solar M-7017 I-7520

Specifications

Communication
Interface RS-485
Format N, 8, 1), (N, 8, 2), (E, 8, 1), or (E, 8, 2)
Baud Rate 1200 ~ 115200 bps
Protocol Modbus RTU, DCON
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED Indicator Yes, 1 LED as Power/Communication Indicator
I/O LED Indicators -
7-Segment LED Display -
Isolation
Intra-module Isolation, Field-to-Logic 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
EFT (IEC) 610004-4) ±4kV for Power Line
Surge (IEC 610004-5) ±0.5 kV for Power Line
Power
Reverse Polarity Protection Yes
Input Range 10~30VDC
Consumption 1.3 W
Mechanical
Dimensions (W x L x H) 72 mm x 123 mm x 35 mm
Installation DIN-Rail or Wall Mountable
Environment
Operating Temperature -25°C to +75°C (-13°C ~ +167°F)
Storage Temperature -40°C to 85°C (-40°F ~ +185°F)
Humidity 10 to 95%, Non-condensing

I/O Specifications

Analog Input
Channels 8
Wiring Differential
Input Range ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Resolution 16-bit
Accuracy Normal Mode 0.1 %
Fast Mode 0.5 %
Sampling Rate Normal Mode 10 Hz
Fast Mode 60 Hz
Input Impedence Voltage -
Current 125 Ω
Surge Strength ±200 VDC
Common Voltage -
Individual Channel Configuration -
Overvoltage Protection -
Overcurrent Protection Yes, 50 mA at 110 VDC
Virtual Channel to Channel Isolation Yes, 400 VDC
Open Wire Detection for 4 ~ 20 mA Yes
