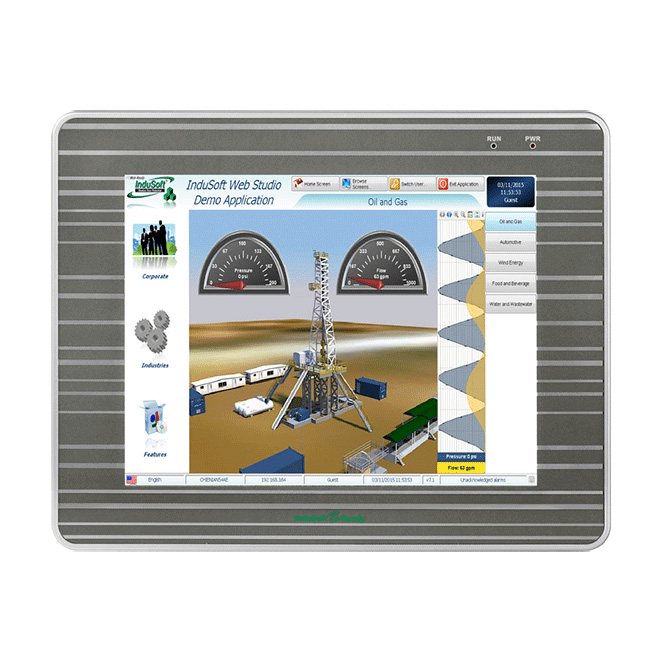

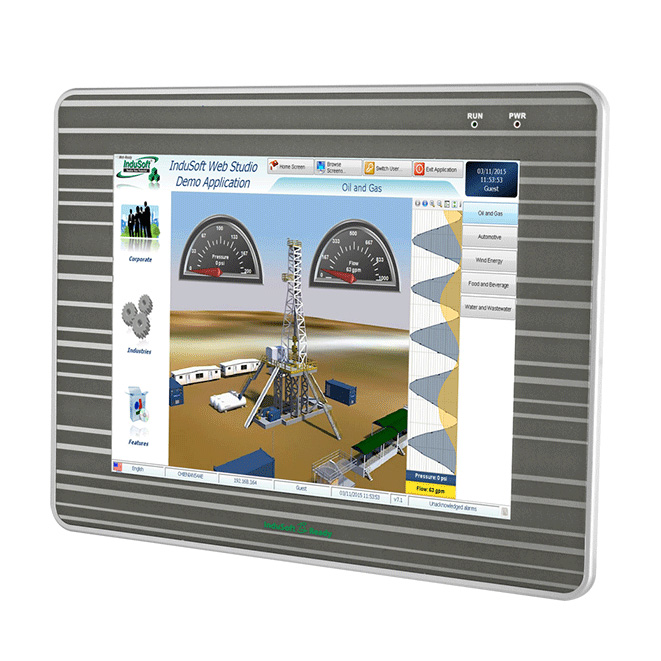

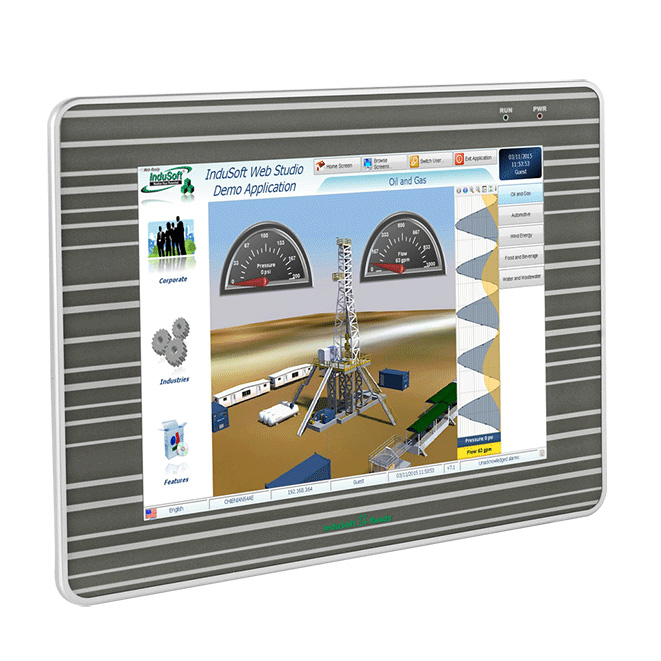

IWS-4201-CE7-1500
InduSoft based PAC with 10.4" LCD (WinCE7 OS). Supports Modbus OPC, Modbus TCP/IP Client/Server. Resistive touch panel which is NEMA 4/IP65 compliant. Has operating temperature range of -10°C ~ +60°C (+14°F ~ +140°F)
Features
The IWS-4201-CE7 is a WinCE 7.0 based InduSoft PAC of ICP DAS USA. The device has a RISC-based CPU board, a rugged sized TFT LCD touch screen flat panel display well suited for a array of HMI applications. Interface connectivity types for this device includes Gigabit Ethernet, USB port, RS-232 and RS-485. The on-board flash memory has the operating system pre-installed. Expandable remote I/O, ethernet I/O, RS-485 I/O, Wi-FI, and Zigbee wirless I/O is also made available to work with the IWS-4201-CE7. The front panel is NEMA 4/IP65 rated, which mean this device can withstand sprayed water, extreme dust, and humidity. It's fanless design offers quiet operation and its casing and components can run under a wide -10°C ~ +60°C temperature range.
- InduSoft Runtime Inside
- Support Modbus OPC, Modbus TCP/IP Client/Server
- DCON Driver for ICP DAS USA I/O modules provided
- Highly & easily adaptable towards "internet of things" and mobile devices
- 10.4" LCD Screen
- Resolution: 800 x 400
- Resistive Touch Panel
- AM335x (1 GHz or 720 MHz) CPU
- NEMA 4/IP65 Compliant Front Panel
- Operating Temperature: -10 ~ +60°C
Software Features
You can receive real-time online alarm messages, binary logs, and reports using InduSoft Web Studio. Data that you receive can work with any database of your choice. You can configure the IWS-4201-CE7 to work with InduSoft to have real-time data sent to your email inbox, printer, or smartphone.
Recipe / Report / Trend
Generate reports quickly and maintain solid workflow with time saving tools using InduSoft's recipe management program.
Driver / OPC
The installed InduSoft software contains over 240 native communication drivers designed for PLCs, bar code/2D/RFID readers, motion controllers, temperature controllers, and many other devices. These built-in drivers allow for connectivity to an OPC server. You can also custom make your own drivers.
Thin Clients
Remote access your devices as a webpage using Internet Explorer or InduSoft's Secure Viewer without installing additional software.
Specifications
LCD Display |
|
Size |
10.4” (4:3) |
Resolution |
800 x 600 |
Brightness (cd/m2) |
400 |
Contrast Ratio |
500:1 |
LED Backlight Life (hrs) |
5-wire, resistive type; light transmission: 80% |
LED Indicator |
2 (PWR, Run) |
CPU Module |
|
CPU |
AM3354 (1 GHz) |
| SDRAM | 512 MB |
| MRAM | 128 KB |
| Flash | 256 MB |
| EEPROM | 16 KB |
| RTC (Real Time Clock) | Yes |
| Hardware Serial Number | Yes, 64-bit Hardware Serial Number |
| Rotary Switch | Yes (0~9) |
| Audio | Earphone-out |

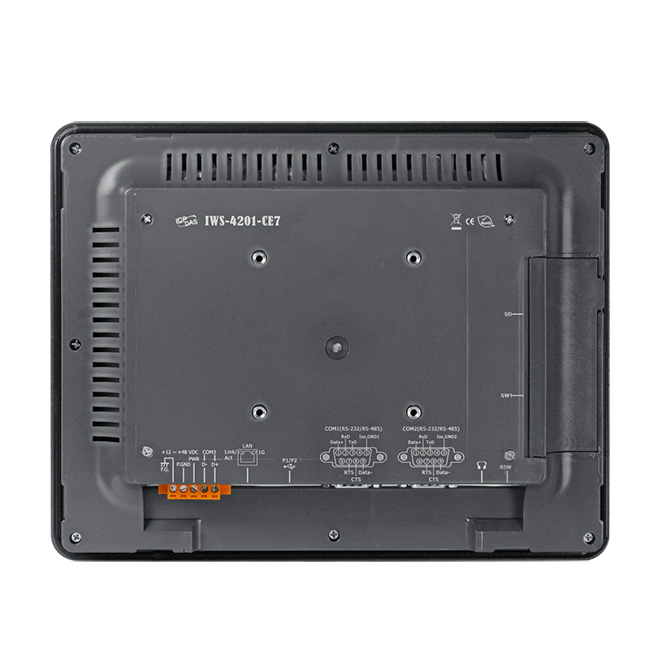

Communication Interface |
|
Ethernet |
1 x RJ-45, 10/100/1000 BaseTX |
USB 2.0 (host) |
2 |
COM1 |
RS-232/485 (DB9 connector; 2500 VDC isolated) |
COM2 |
RS-232/485 (DB9 connector; 2500 VDC isolated) |
COM3 |
RS-485 (Terminal Block, Data+, Data-); 2500 VDC isolated |
Mechanical |
|
Dimensions (W x L x H) |
293 x 231 x 54 |
Installation |
Panel Mounting / VESA Mounting |
Ingress Protection |
Front Panel: NEMA 4 / IP65 |
Environment |
|
Operating Temperature |
-10°C ~ +60°C (+14°F ~ +140°F) |
Storage Temperature |
-20°C ~ +70°F (-4°F ~ +158°F) |
Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
Power |
|
| Power from Terminal Block | Yes, 12~48 VDC |
Power PoE |
Yes, IEEE 802.3af |
Isolation |
1 kV |
Consumption |
0.45A @ 24VDC |
