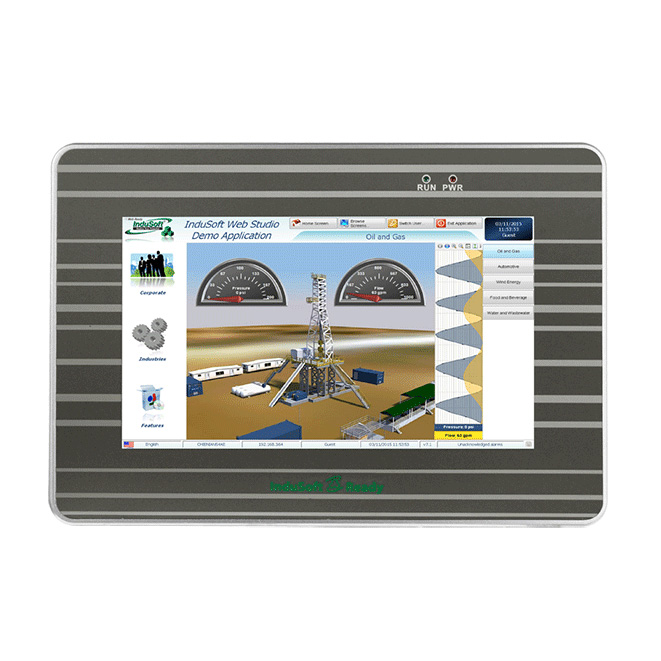

IWS-2201-CE7-1500

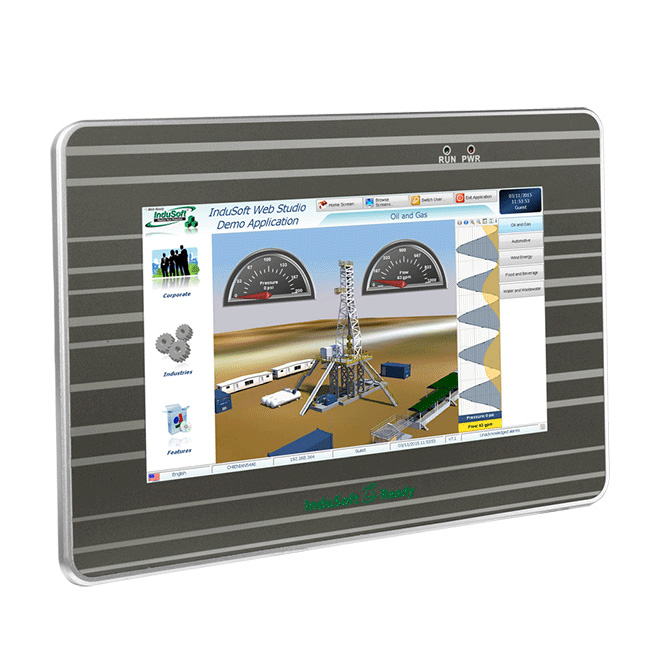

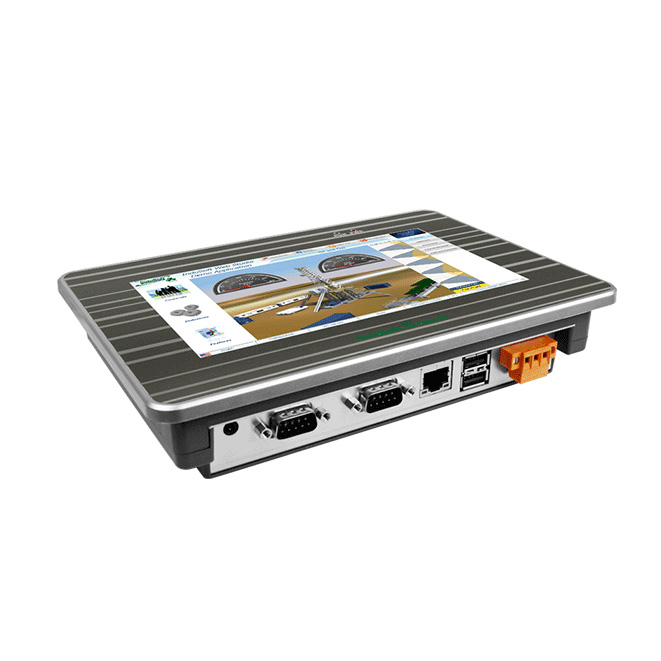

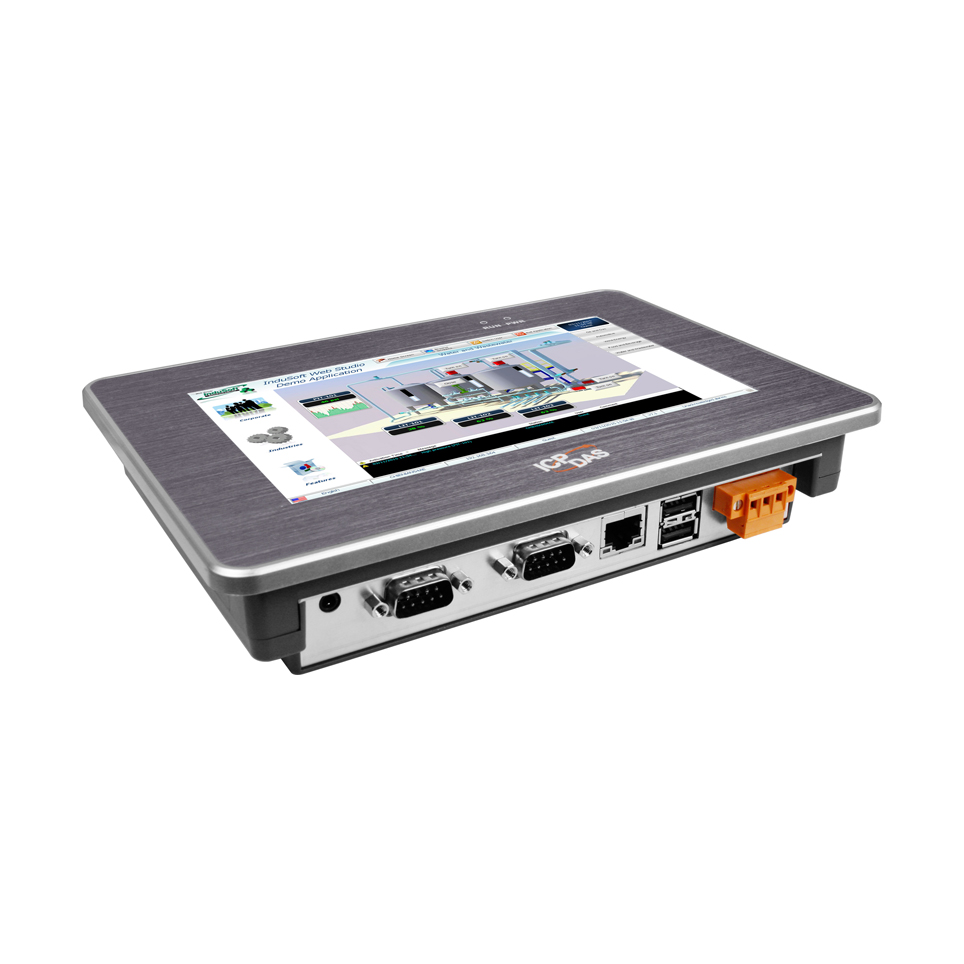

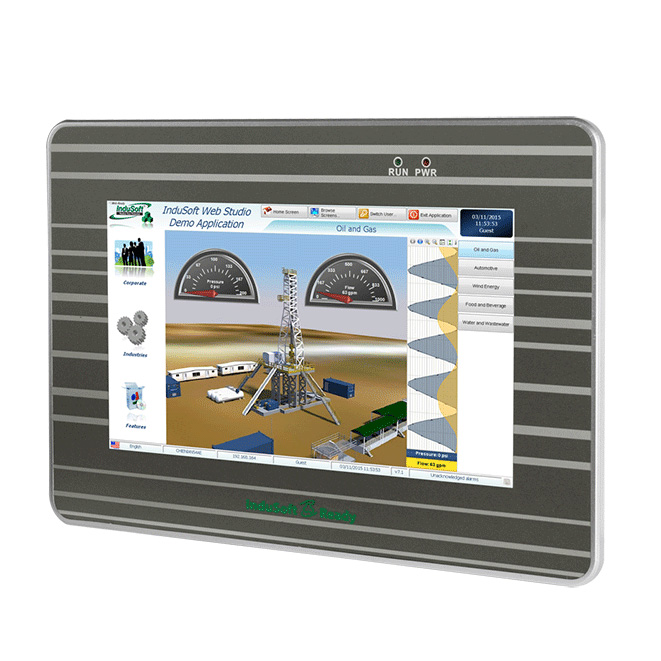

The IWS-2201-CE7 is a WinCE 7.0 based InduSoft PAC of ICP DAS USA. The device has a RISC-based CPU board, a rugged sized TFT LCD touch screen flat panel display well suited for a array of HMI applications. Interface connectivity types for this device includes Gigabit Ethernet, USB port, RS-232 and RS-485. The on-board flash memory has the operating system pre-installed. Expandable remote I/O, ethernet I/O, RS-485 I/O, Wi-FI, and Zigbee wirless I/O is also made available to work with the IWS-2201-CE7. The front panel is NEMA 4/IP65 rated, which mean this device can withstand sprayed water, extreme dust, and humidity. It's fanless design offer quiet operation and its casing and components can run under a wide -10°C ~ 60°C ambient temperature range.

• InduSoft Runtime (CE 300/1500 tags) Inside
• Support Modbus, OPC, TCP/IP Client/Server
• DCON Driver for ICP DAS USA I/O modules provided
• Makes connectivity for the “internet of things” and mobile devices easily
• 7”/10.4”/15" LCD
• Resolution: 800 x 480/800 x 600/1024 x 768
• Resistive Touch Panel
• Cortex-A8, 1.0 GHz CPU
• Windows CE 7.0
• NEMA 4/IP65 Compliant Front Panel
• Operating Temperature: -10 ~ +60°C

Software Features

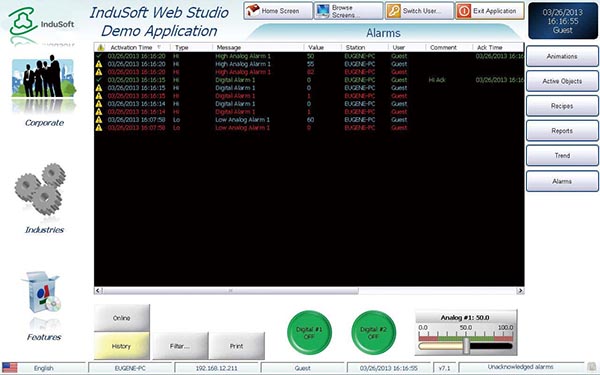

You can receive real-time online alarm messages, binary logs, and reports using InduSoft Web Studio. Data that you receive can work with any database of your choice. You can configure the IWS-2201-CE7 to work with InduSoft to have real-time data sent to your email inbox, printer, or smartphone.

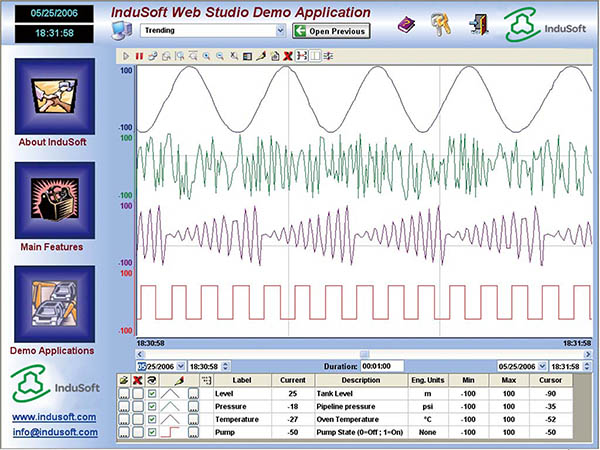

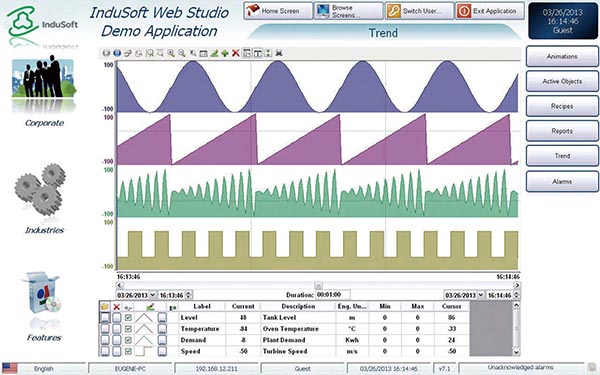

Recipe / Report / Trend

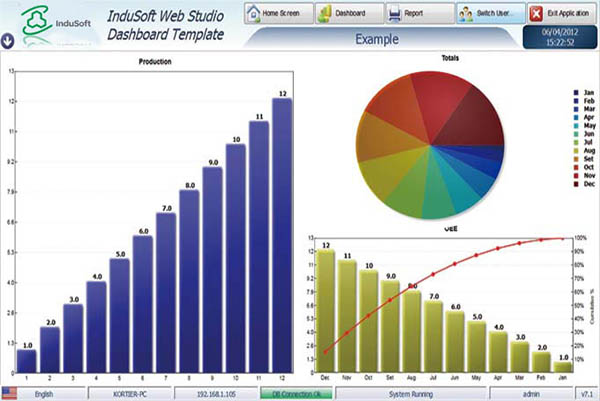

Generate reports quickly and maintain solid workflow with time saving tools using InduSoft's recipe management program.

Driver / OPC

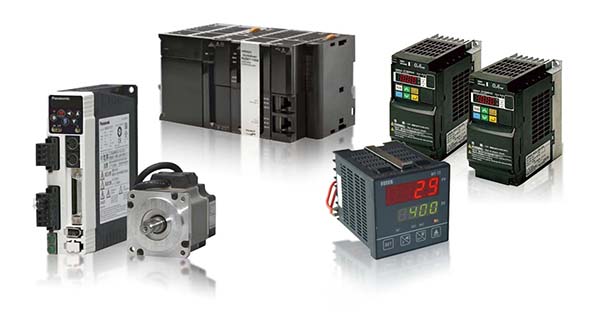

The installed InduSoft software contains over 240 native communication drivers designed for PLCs, bar code/2D/RFID readers, motion controllers, temperature controllers, and many other devices. These built-in drivers allow for connectivity to an OPC server. You can also custom make your own drivers.

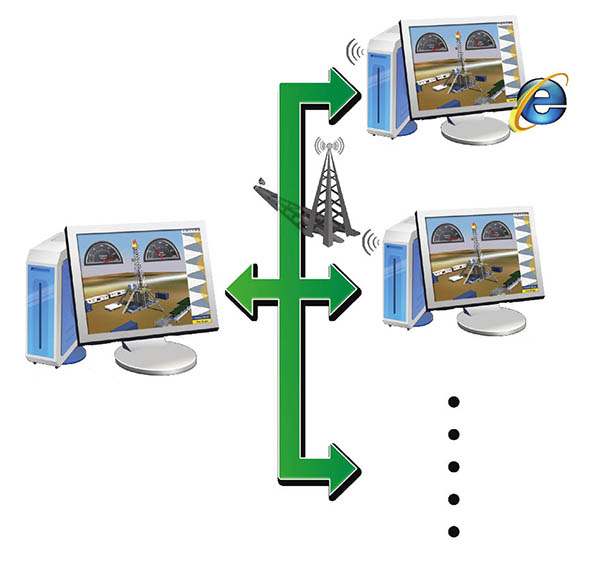

Thin Clients

Remote access your devices as a webpage using Internet Explorer or InduSoft's Secure Viewer without installing additional software.
