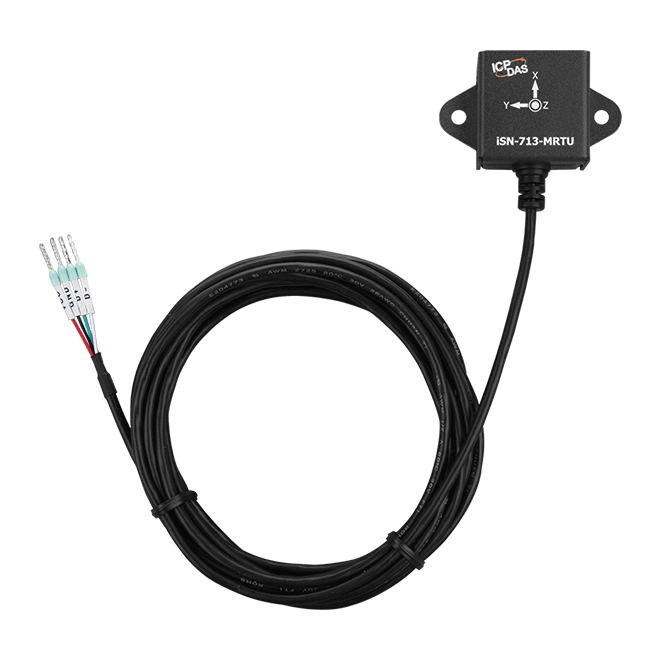

iSN-713-MRTU

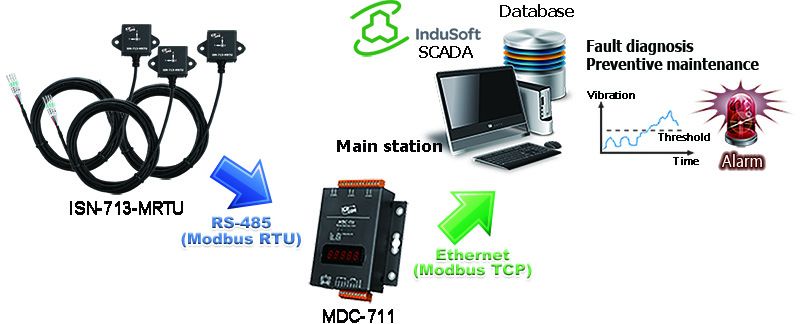

The iSN-713-MRTU module is a three-axis vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. The iSN-713-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.

• Three-axis vibration measurement
• Frequency range: 10 Hz to 1K Hz
• Amplitude range: ±8g
• Data Format:
  -Acceleration(mg): RMS, Maximum, P-P
  -Velocity(mm/s): RMS
  -Top 10 spectrum values(Amplitude/Frequency)
  -Crest Factor
• Supported Modbus RTU Slave protocol
