Universal IR Learning Remote Module (MBTCP, 2 IR outputs, 512 IR Cmds) with 2 CA-IR-SH2251, communicable over RS-232 and RS-485. Modbus/TCP (Server) Protocol. Supports -25°C ~+75°C

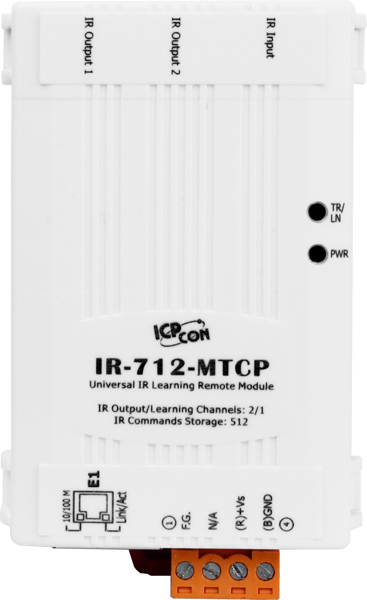

IR-712-MTCP

Universal IR Learning Remote Module (MBTCP, 2 IR outputs, 512 IR Cmds) with 2 CA-IR-SH2251, communicable over RS-232 and RS-485. Modbus/TCP (Server) Protocol. Supports -25°C ~+75°C

  Price:  $199.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

Application Image IR-712-MTCPICP DAS USA's IR-712-MTCP device is a universal IR learning remote module capable of learning IR remote commands from an array of electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP has 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP protocol provides flexible expansion and control on the modules. IR utilities provides easy configuration, learning, testing and storage of IR commands. This device can totally replace the numerous remote controllers into once concise control, which makes it the most ideal for smart home and building automation applications.

  • 2 IR output channels for controlling multiple devices
  • 1 IR learning input
  • IR command storage: 512
  • Supports IR carrier frequencies: 32.768,36,37.037,38,40 and 56 kHz.
  • Supports Ethernet interface
  • Supports Modbus TCP/UDP protocol
  • Provides IR transmitting/learning and power indication LEDs
  • Built-in Watchdog
  • RoHS Compliance

Application

Application Image on IR-712-MTCP-02

  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation

Utility

  • IR quantity configuration
  • IR commands learning and testing
  • Save IR learning commands to files
  • Get/Set IR learning commands from/to IR-712-MTCP
  • Reference to Modbus commands
  • Set/Reset basic settings of IR-712-MTCP

Specifications

IR Interface
IR Output Channels
2 channels with 3.5 mm audio jack
IR Learning Input 1 channel. Supports 6 IR carrier frequencies: 32.768, 36, 37.037, 38, 40, 56 kHz.
Communication Interface
Ethernet
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
Protocol
Modbus TCP/UDP (server)
LED Indicator
LED
2 LEDs: TR/LN (IR Transmitting/Learning) and PWR (Power)
Power
Connector
4-pin (F.G., N/A, +Vs, and GND) screw terminal connecter
Power Supply
+10 ~ +30 VDC
Power Consumption
Stand by
1.7 W
Using 1 IR output 3.4 W
Using 2 IR output 5.8 W (Max.)
Mechanism
Installation
DIN-Rail mounting
Dimensions 52 mm x 85 mm x 27 mm (W x H x L)
Dip Switch
FW (Firmware update mode) / OP (Firmware operation mode)
Environmental
Operating Temperature
-25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature
-30°C ~ +80°C (-22°F ~ +176°F)
Humidity
10%~90%, non-condensing
