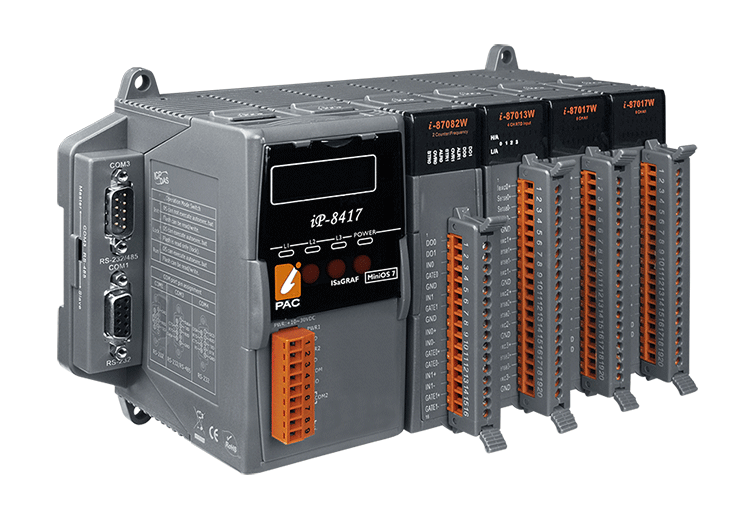

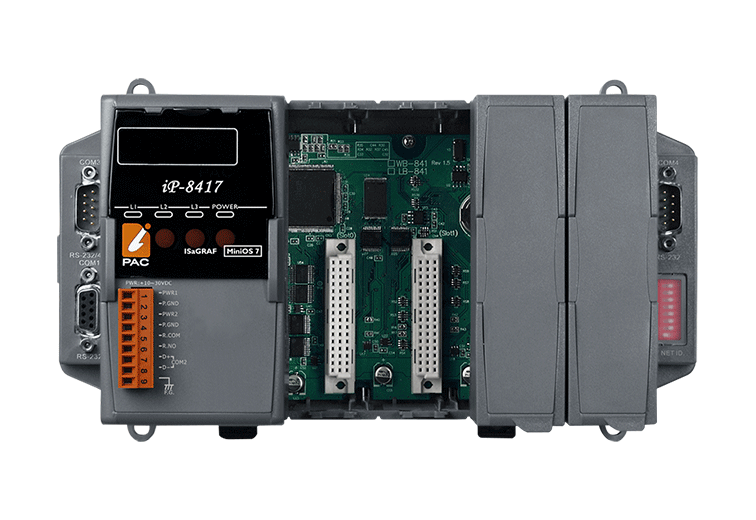

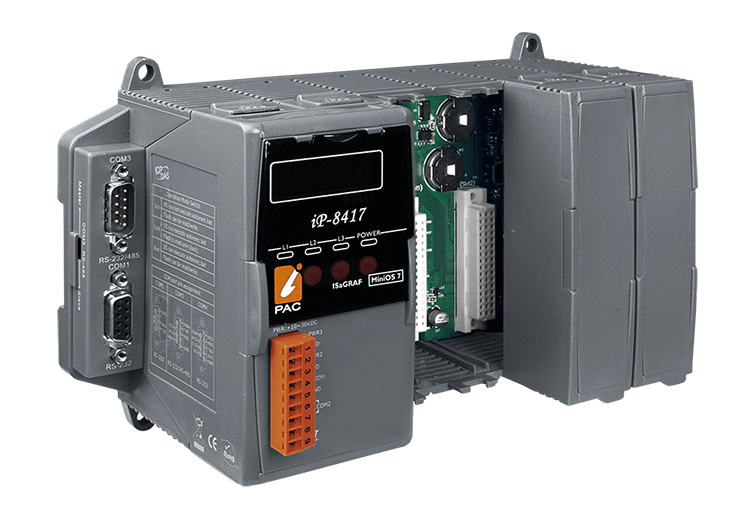

iP-8417
4 Slot Swappable I/O Programmable Automation Controller (PAC) Running MiniOS7, Pre-Loaded with ISaGRAF Control Software. Hot Swap Slots Compatible w/ I-87k Modules. Replacement for I-8417
Features
ISaGRAF iPAC-8417 is the ISaGRAF SoftLogic PAC from ICP DAS USA.
Each iP-8417 module is equipped with an 80186, 80 MHz CPU running a MiniOS7 operating system, a variety of I/O ports, dual 10/100 Base-TX Ethernet Ports for iP-8x47, one RS-232/485 port, one RS-485 port, and two RS-232 ports and a range of I/O slots that can be used to integrate high-performance parallel I/O modules or serial I/O modules. Users can also choose RS-485 Remote I/O modules (I-7000 series) or expansion units (RU-87Pn or I-87Kn) plugged with high profile I-87K serial I/O modules.
The iPAC-8000 Series is much faster than the I-8000 Series in which it replaced.
- 80186, 80 MHz CPU
- MiniOS7 Inside
- Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
- 512 KB Battery Backup SRAM to Retain Data
- 64-bit Hardware Serial Number
- 4 Hot-Swap Slots for I-87K High Profile I/O Modules
- 4 Serial Ports (RS-232/485)
- Redundant Power Inputs
Specifications
| Software | |
| OS | MiniOS7 |
| Protocol | • NET ID • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU remote I/O • FRnet I/O • SMS • CAN/CANopen |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | Yes, but ISaGRAF does not support |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 3 x Programmabley |
| I/O Expansion | |
| I/O Type | 5 x Digit 7 Segment LED Display |
| Slots | 4 |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI | |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 6.7 W |
| Mechanism | |
| Dimensions | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 °C ~ + 75 °C |
| Storage Temperature | -30 °C ~ + 80 °C |
| Ambient Relative Humidity | 10 ~ 90% RH, non-condensing |
References and Support
Customer Reviews (0)
Be the first to leave a review.
Product Added to Cart

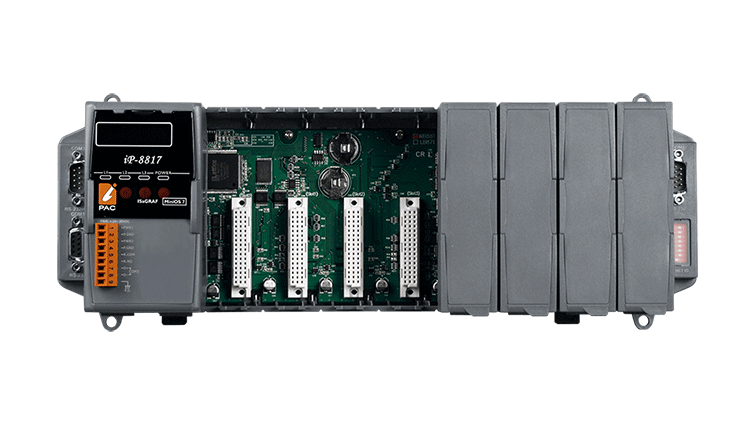

iP-8817
