32-channel Sink-type Open Collector Isolated Self Protected Digital Output Module. Wide Operating Temperature Range: -25 to +75°C


32-channel Sink-type Open Collector Isolated Self Protected Digital Output Module. Wide Operating Temperature Range: -25 to +75°C

  Price:  $499.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

References & Support

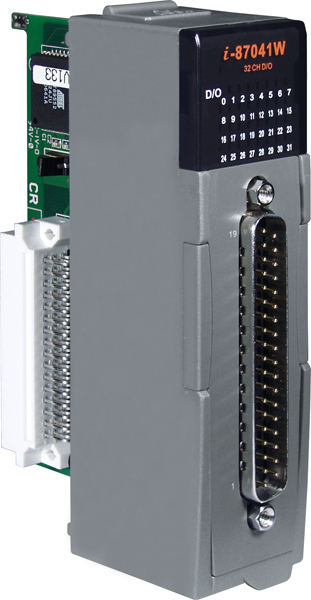

The I-87041W/I-87041PW module offers 32 Digital Output channels, each of which features Photocouple isolation and supports sink-type output using an open collector. The I-87041W/I-87041PW includes 32 LED indicators that can be used to monitor the status of the Digital Output channels, and options are available for confi guring both power-on and safe values. 4 kV ESD protection and 3750 Vrms intra-module isolation is provided as standard. The I-87041W/I-87041PW can be paired with a daughterboard, such as the DN-37-381-A for easy wiring, or the DN-8K32R for relay output.

The I-87041PW integrates over-current, over-voltage and short-circuit functionality. ICP DAS recommends selecting either the "PW" version of the digital output module for industrial use.

  • 32-channel Open Collector Output
  • Sink-type Digital Output
  • Short circuit protection, Overvoltage Protection and Overload Protection for I-87041PW
  • Optional Daughterboards
  • 4 kV ESD Protection
  • 3750 Vrms Intra-module Isolation
  • Configurable Power-on Value
  • Configurable Safe Value
  • RoHS Compliant
  • Wide Operating Temperature Range: -25 to +75°C


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment


Interface RS-485
Format N, 8, 1
Baud Rate 1200 to 115200 bps
Protocol DCON
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED Indicator Yes, 1 as Power/Communication Indicator
I/O LED Indicators 32 as Digital Output Indicators
Intra-module Isolation, Field-to-Logic 3750 Vrms
EMS Protection
ESD (IEC 61000-4-2) ± 8 kV Contact for each Terminal
±16 kV Air for Random Point
Power Consumption 1.7 W Max.
Dimensions (L x W x H) 114 mm x 30 mm x 85 mm
Data Bus 32-bit
Operating Temperature -25 to +75°C
Storage Temperature -40 to +85°C
Humidity 10 to 95% RH, Non-condensing

I/O Specifications

Digital Output
Channels 32
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 VDC ~ +50 VDC
Max. Load Current 200 mA/Channel
Output Type Open Collector
Overvoltage Protection 60 VDC
Overload Protection 1.1 A
Short Circuit Protection Yes
Power-on Value Yes
Safe Value Yes
