8-channel 12-bit Channel-to-Channel Isolated Voltage Output Module (0 ~ +20 VDC) (RoHS)

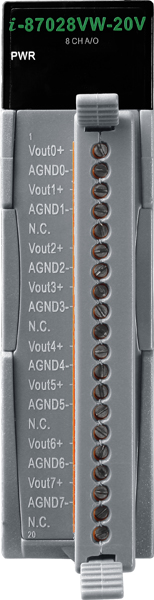

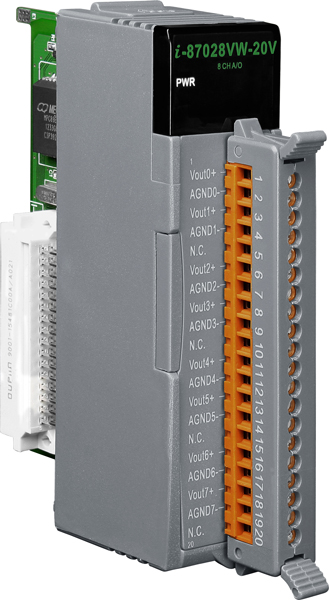

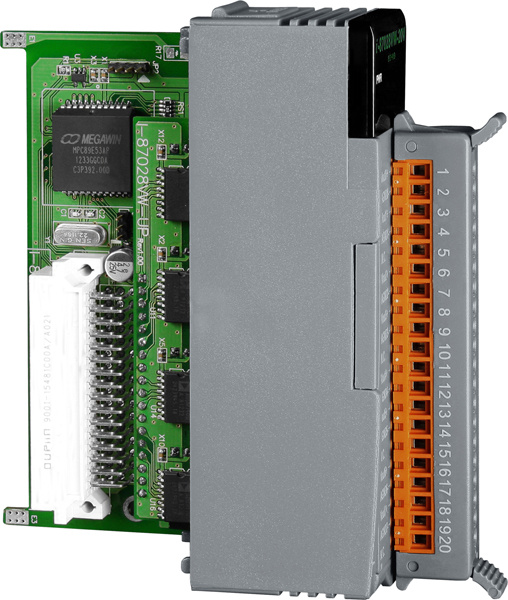

I-87028VW-20V

8-channel 12-bit Channel-to-Channel Isolated Voltage Output Module (0 ~ +20 VDC) (RoHS)

  Price:  $749.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

The I-87028VW-20V is an 8-channel voltage output module, featuring 2000 VDC channel-to-channel isolation, and provides for 4 KV ESD protection and 2000 VDC intra-module isolation. Options for configuring power-on and safe values are also included.

  • I-87028VW-20V
    • 0-20 V Voltage Output
  • 8-channel Voltage Output
  • 2 kV Channel-to-Channel Isolation
  • RF Immunity
  • Short Circuit Protection
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settings
  • 4 kV ESD Protection
  • Wide Operating Temperature Range: -25 ~ +75°C

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

System Specifications

Communication

Interface

RS-485

Format

N, 8, 1

Baud Rate

1200 ~ 115200 bps

Protocol

DCON

Dual Watchdog

Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicator/Display

System LED Indicator

1 LED as Power/Communication Indicator

I/O LED Indicator

-

Isolation

Intra-Module Isolation, Field-to-Logic

2000 VDC

EMS Protection

ESD (IEC 61000-4-2)

4 kV Contact for Each Terminal
8 kV Air for Random Point

RS Immunity (IEC 61000-4-3)

-

Power

Power Consumption

5 W Max.

Mechanical

Dimensions (W x L x H)

31 mm x 81 mm x 114 mm

Environment

Operating Temperature

-25 ~ +75 °C

Storage Temperature

-40 ~ +85°C

Humidity

10 ~ 95% RH, Non-condensing


I/O Specifications

Analog Output

Channels

8

Current Output Wiring

-

Range

0 ~ +20 VDC

Resolution

12-bit

Accuracy

±0.15% of FSR

Zero Drift

±0.2 μV/°C

Span Drift

±25 ppm/°C

Span Drift

±25 ppm/°C

DA Output Respones Time

10 ms per channel

Programmable Output Slope

Voltage

0.0625 ~ 512 V/Second

Output Capacity

20 V @ 5 mA

Channel-to-Channel Isolation

-

Open Wire Detection

-

Short Circuit Protection

Yes

Power-on Value

Yes

Safe Value

Yes
